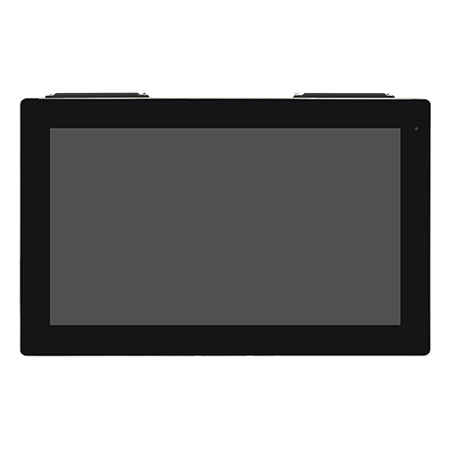

PhanTAM-916CP/H
15.6” IP66 / IP69K True Flat and Slim Design Stainless Steel Panel PC, Industrial Panel PC, HMI Controller ,Industrial Display Monitor, Box PC
Features :
- 15.6" New Generation Stainless Steel Panel PC
- 11th Gen. Intel Core i3/i5 BGA type Processor
- True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- Waterproof Wireless Antenna Covers to Solve the Bend Damage and Easy to Clean
- Support Ergonomic Versatile Mounting: VESA Mount 100 x 100 / Floor Stand / Swing ARM
Specification
| LCD | |
|---|---|
| LCD Size | 15.6" TFT-LCD |
| Touch Type | Projected Capacitive Touch |
| Luminance(cd/m²) | Standard: 400 (default), 500 (optional) High Brightness: 1000 |
| System | |
| CPU | Onboard Intel 11th Gen. Core i3/i5 Processor |
| Power Consumption | PhanTAM-916CP: 32W |
| System Chipset | SoC |
| System Memory | 2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz |
| TPM | TPM 2.0 |
| I/O Port | |
| LAN | 1 x M12 8-pin for LAN with waterproof cover |
| Power | 1 x M12 3-pin for DC power with waterproof cover |
| Serial / Parallel | 1 x Power switch on the rear 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover |
| USB | 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover |
| Storage Space | |
| HDD/SSD | 1 x M-Key 2280 (PCIe) for SSD |
| Expansion | |
| Expansion Module | RFID module design on the front side (for option) |
| Expansion slot | 1 x Full size mPCIe/mSATA (mPCIe as default, select by BIOS) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module |
| Display | |
| Backlight lifetime(hrs) | 50,000 |
| Contrast | 500:1 (default), 1000:1 (optional) |
| LCD Size | 15.6" TFT-LCD |
| Luminance(cd/m²) | Standard: 400 (default), 500 (optional) High Brightness: 1000 |
| Max. color | 16.7M |
| Max. resolution | 1366 x 768 (default) 1920 x 1080 (optional) |
| Viewangle(H°/V°) | Standard: 170 /160 (default), 178 / 178 (optional) High Brightness: 160 /160 (default), 170 / 170 (optional) |
| Touch Screen(Option) | |
| Interface | USB |
| Light transmission(%) | Projected Capacitive Touch: Over 90% |
| Touch Type | Projected Capacitive Touch |
| Power | |
| Power input | DC 9~36V |
| Mechanical | |
| Construction | 304 Stainless Steel Chassis (default) 316 Stainless Steel Chassis (optional) |
| Dimension(mm) | 403.4 x 254.4 x 64.9 mm |
| IP rating | Total IP66/IP69K |
| Mounting | VESA Mount 100 x 100, Floor Stand / Swing ARM (optional) |
| Net weight(Kgs) | 5.1 kg |
| Environment | |
| Certification | CE/FCC Class A |
| Operating temperature(°C) | 0~50°C / -20~60°C for option |
| Storage humidity | 10 to 90% @ 40°C, non-condensing |
| Storage temperature(°C) | -30~70°C |
| Operating System | |
| Operating System | Windows 10 IoT ENT LTSB, Windows 11 |
| Ordering Information | |
| Barebone | PhanTAM916CP: 15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter PhanTAM916CPH: 15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits |
| Option | 2 x optional blank M12 connector with waterproof cover for selecting two from the following options: ●2 x USB 2.0 ●1 x USB 3.2 Gen.1 ●1 x LAN ●1 x COM |
