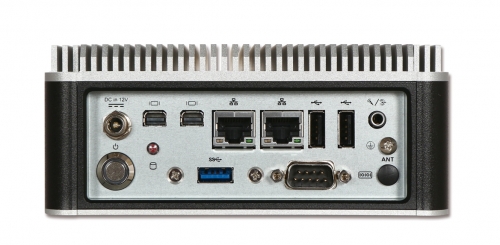

WEBS-21AO
Embedded Compact Fan-less System with Intel® 5th Gerenation ULT Core™ i Processor based NANO-ITX Board
Features :
- Fan-less and cable-less & small and exquisite design
- Single 204-pin SODIMM supports DDR3L up to 8GB
- Intel® 5th Gerenation ULT Core™ i Processor based platform
- 1x 2.5” SATA HDD/SSD, 1x mSATA
- 1x Half-size Mini-PCIe socket (USB+PCIe x1 signal)
- 1x Antenna hole for WiFi, 3G or GPS module to use
- OP Vibration: 5Grms/10~500Hz
- OP Shock: 50G, 11msec
- IP40 Rating
Description
The Rugged Embedded fanless WEBS-21A0 builds on Intel® Broadwell-U Core™ i SoC and takes advantages of Intel® Core™ mobile technologies. that can support superior Dual-Core processing power and capability. Support two Gigabit Ethernet ports and one Half-Size Mini PCIe. The WEBS-21A0 is an ideal platform which with high performance for fan-less applications in harsh environment, such as POS, kiosk, digital signage, transportation and automation.
Specification
| System | |
|---|---|
|
M/B |
NANO-6050
|
|
Form Factor |
NANO-ITX
|
| System | |
|---|---|
|
CPU |
Intel® 5th Gerenation ULT Core™ i Processor
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L/8GB
|
|
Graphic Controller |
Intel® Gen 8 Graphics
|
|
Audio Codec |
ALC892
|
|
Super I/O |
EC ITE IT8528
|
|
Storage |
1x 2.5” SATA HDD/SSD 1x mSATA
|
| External I/O | |
|---|---|
|
Serial |
1x RS-232/422/485
|
|
USB |
2x USB2.0 1x USB3.0
|
|
Display |
2x mini DP
|
|
Ethernet |
Intel® I218AT x 2
|
|
PS/2 |
N/A
|
|
Audio |
Combo Jack Line-out, Mic-in
|
|
D I/O |
N/A
|
|
Expansion |
1x Half-size Mini-PCIe
|
| PWR | |
|---|---|
|
System |
DC 12V
|
| Environment | |
|---|---|
|
OP Temp. |
0°C ~ 50°C |
|
Storage Temp. |
-20°C ~ 85°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz |
|
Shock |
50G, 11 msec |
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
150 x 150 x 62.6 mm
|
|
Weight |
2 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3442 |
(R).WEBS-21A0.NANO-ITX system. |
