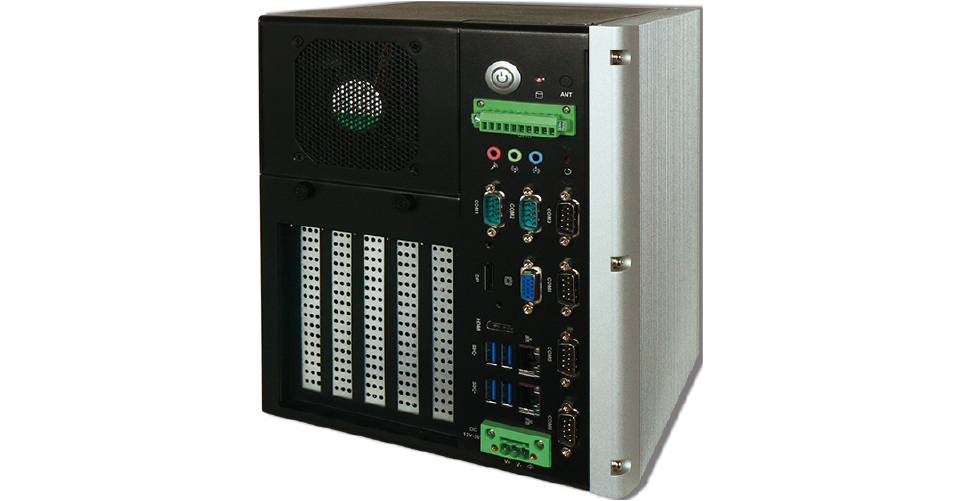

WEBS-35C6
Embedded Rugged Fan-less System with Intel® 6th Skylake-S Core™ i3/i5/i7 based Mini-ITX Board
Features :
- Intel® Core™ i High performance Fan-less Embedded Box PC
- 6th generation Intel® Skylake-S Core™ i3/i5/i7 Desktop processor (Quad-Core CPU supported)
- Dual UB-DIMM DDR4 up to 32GB
- 2x 2.5” SATA HDD/SSD, 1x mSATA
- Rich I/O is good for versatile applications
- 1x M.2 socket, 1x Full-size Mini-PCIe socket
- Different add-on card expansion options
- Innovative PCI/PCIe expansion module is easy for add-on cards installation and replacement
- Rugged design is good for using in harsh environment
Description
The WEBS-35C6 builds on Intel® desktop Q170 chipset and takes advantages of Intel® Core™ i3/i5/i7 desktop processor technologies that can support dual DDR4 memory. Support two Gigabit Ethernet ports, different add-on card expansion options, one M.2 socket and one Mini-PCIe socket. The WEBS-35C6 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and surveillance security monitoring applications.
Specification
| System | |
|---|---|
|
M/B |
WADE-8017 |
|
Form Factor |
Mini-ITX |
| System | |
|---|---|
|
CPU |
Intel® 6th Gerenation Desktop Core™ Processor |
|
Chipset |
Q170 |
|
BIOS |
AMI UEFI
|
|
Memory |
DDR4/32GB |
|
Graphic Controller |
Intel® Gen 9 Graphics |
|
Audio Codec |
ALC892
|
|
Super I/O |
EC ITE IT8528
+ Fintek F81216 |
|
Storage |
2x 2.5” SATA HDD/SSD 1x mSATA |
| External I/O | |
|---|---|
|
Serial |
4x RS-232 2x RS-232/422/485 |
|
USB |
4x USB3.0 |
|
Display |
VGA, DP, HDMI
|
|
Ethernet |
Intel® I219LM + I210AT |
|
PS/2 |
N/A
|
|
Audio |
Line-in, Line-out, Mic-in |
|
D I/O |
8-bit Digital I/O |
|
Expansion |
1x Full-size Mini-PCIe 1x M.2(Type E) Multi PCIe option |
| PWR | |
|---|---|
|
System |
DC 12V ~ 36V
|
| Environment | |
|---|---|
|
OP Temp. |
-20°C ~ 50°C
|
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
253 x 255 x 210 mm |
|
Weight |
9 Kg
|
| Ordering Guide | |
|---|---|
|
AS5-3522 |
(R).ATO. WEBS-35C6. Embedded rugged fan-less system with Intel Skylake-S Core i3/i5/i7 based MINI-ITX system. |
