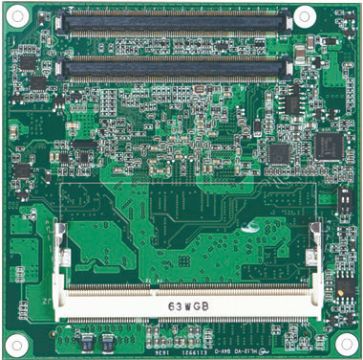

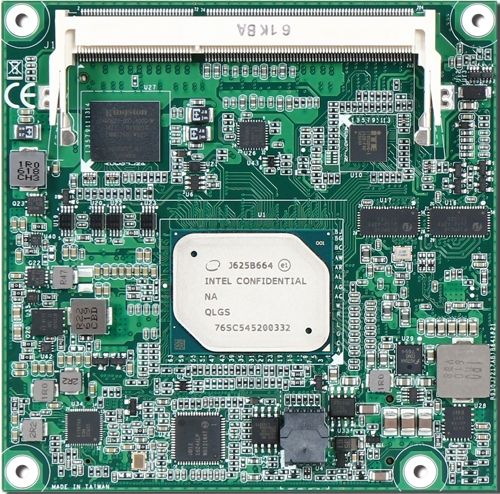

PCOM-B641VG
Intel® Atom® Apollo Lake series SoC based on Type 6 Compact COM-Express® module with 2x DDR3L SO-DIMM Socket
Features :
- Intel® Atom® Apollo Lake E3900 series processors
- DDR3L SO-DIMM up to 16GB 1866 MT/s
- Multiple Displays VGA, LVDS/eDP, DP, HDMI
- Support Industrial temperture -40°C to 85°C
- Support low power consumption(6 to 12W), TPM 2.0
Description
PCOM-B641VG, a type 6 compact COM Express® (95 x 95 mm) module which based on Intel® Atom® Apollo Lake E3900 series SoC. In this architecture, it could provide VGA, LVDS, and high quantity HDMI, eDP, DP with 4K resolution, and three independent displays. PCOM-B641VG also provides turbo mode up to 2.5GHz, including extended 4x PCIe 2.0 x 1, 3x USB 3.0, 8x USB 2.0, and 2x SATA III devices. With ultra low power consumption design(6 to 12W), wide-temp support, PCOM-B641VG could provide very energy saving and high effective performance. Portwell planned to promote PCOM-B641VG as vertical solution to aim in the different versatile applications, such as Automation, Military, Networking, Transportation and so on.
| Specification | |
|---|---|
|
Model Name |
PCOM-B641VG
|
|
Form Factor (mm) |
COM Express® Compact (95 x 95mm)
|
|
COM Type |
Type 6
|
|
CPU/ Clock/ Cache |
Intel® Atom® E3950 Intel® Atom® E3940 Intel® Atom® E3930 Intel® Atom® N4200 Intel® Atom® N3350 1.80 GHz to 2.40 GHz (Turbo) 2MB cache |
|
Chipset |
SoC
|
|
Graphic Controller |
Intel® HD Graphics 505 Intel® HD Graphics 500 |
|
Memory |
DDR3L SO-DIMM up to 16GB 1866 MT/s Non-ECC Dual Channel |
|
Storage |
2x SATA III
|
|
USB |
3x USB 3.0 8x USB 2.0(Option 1x OTG) |
|
PEG |
N/A
|
|
PCI Express |
4x PCIe 2.0 x 1
|
|
Ethernet |
I210IT
|
|
Audio |
Intel® High Definition Audio
|
|
Operating Temperature |
-40C° to 85°C
|
|
Carrier Board |
PCOM-C605 (Mini-ITX) PCOM-C60B (ATX) |
