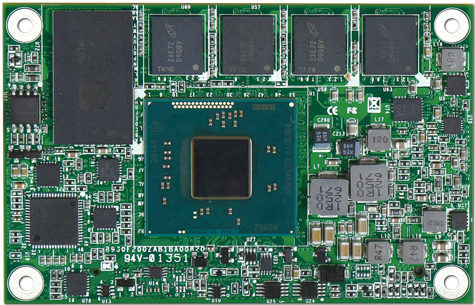

PCOM-BA00

Intel® Atom® E3800 series SoC based on Type 10 Mini COMExpress® module with DDR3L SDRAM, NANDrive and USB 3.0

Features :

Description

PCOM-BA00, a Type 10 Mini COM Express® (84 x 55 mm) module which based on Intel® Bay Trail Atom® E3800 series SoC. In this architecture, it could provide VGA, LVDS, eDP and DP multiple displays, and expandability I/O interfaces, including 3 x PCIe 2.0 x 1, 1 x USB 3.0, 4 x USB 2.0, 2 serial ports and 2 x SATA II devices. With ultra low power consumption(3 to 10W), wide-temp support, it could provide very energy saving and high effective performance. Portwell want to promotes PCOM-BA00 as vertical solution to aim in the different versatile applications.

Specification
Model Name
PCOM-BA00
Form Factor (mm)
COM Express® Mini (84 x 55mm)
COM Type
Type 10
CPU/ Clock/ Cache
Intel® E3845*

Intel® E3827

Intel® E3825

Intel® E3815

Intel® E3805

1.33 GHz to 1.91 GHz*

1MB to 2MB cache*
Chipset
SoC
Memory
DDR3L 1067/1333 MT/s*

Non-ECC/ECC*

Single Channel*
USB
1x USB 3.0 4x USB 2.0
PCI Express
3 x PCIe 2.0 x 1

(Option 4 x PCIe 2.0 x1)
Ethernet
Intel® I210IT
Sound
Intel® High Definition Audio
Graphic Controller
Intel® HD Graphics
Carrier Board
PCOM-CA00 (Type 10)
