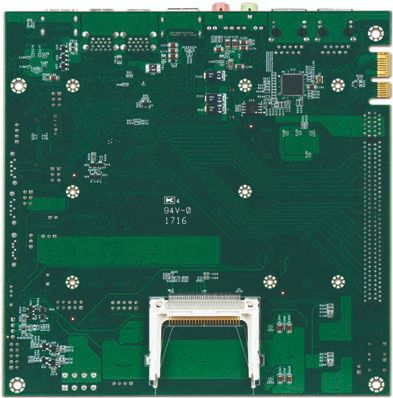

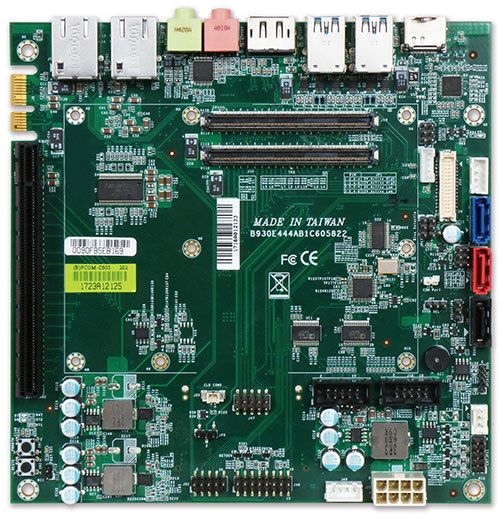

PCOM-C605
Mini-ITX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 2.1 Module
Features :
- COM Express® carrier board is compatible with the Portwell Type 6 COM Express® modules
- Support 4x USB 3.0, 2x USB 2.0, 3x SATA Ports, 1 x CFEX
- Support multiple displays(DP, HDMI, VGA, LVDS)
- Support 1 x PEG 2 x PCIe Golden Figer
Description
Portwell PCOM-C605 is designed to as a validation board for most of the Portwell COM-Express 2.1 type 6 modules, this carrier will support VGA, LVDS, DP, HDMI displays, and included multiple I/O expansions, for example PEG, PCIe, USB3.0. SATA III and CFEX.
| Specification | |
|---|---|
|
Model Name |
PCOM-C605
|
|
Form Factor (mm) |
Mini-ITX (170 x 170mm)
|
|
COM Type |
Type 6
|
|
CPU/ Clock/ Cache |
Depends on Module
|
|
Chipset |
N/A
|
|
Graphic Controller |
N/A
|
|
Memory |
N/A
|
|
Storage |
1x SATA III 2x SATA II 1x CFEX |
|
USB |
4x USB 3.0 4x USB 2.0 |
|
PEG |
1x PCIe 3.0 x 16
|
|
PCI Express |
2x PCIe 2.0 x 1 Golden Finger
|
|
Ethernet |
2x GbE
|
|
UART |
2x Serial Port(SuperI/O, RS232) 1x Serial Port(Tx/Rx) |
|
Display |
VGA LVDS DP HDMI |
|
Audio |
N/A
|
|
Operating Temperature |
-40C° to 80°C
|
|
Module |
COM-Express 2.1
|
