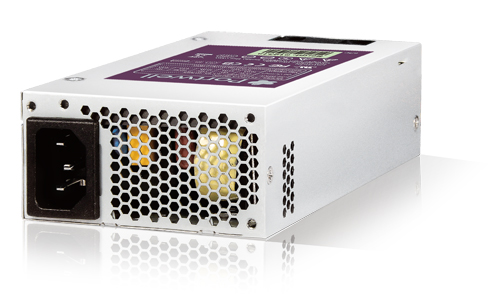

PLUTO-A1801PJ
180W Flex form factor Power supl with Active PFC Japan made capacitor 80PLUS and OVP,OCP,SCP
Features :
- Power Efficiency (25°C can meet the minimum efficiency(80%) for all loading conditions (20%,50,100%))
- Made in Japan capacitor (NCC)
- Internal 4 cm double bearing fan
- Leakage current: Less 3.5 mA-rms at 264Vac, 50 Hz
- Low ripple & noise
- 100% Hi-pot tested
- Hold-up Time in 16ms
- Power Good signal: TTL compatible on delay 100ms to 500ms , off delay 1ms
- Short Circuit Protection
- Over Voltage Protection
- Over Current Protection
Description
For different industrial environment, like POS, small size server station or Mini-ITX system, PSU takes an important position. For those applications, PLUTO-A1801PJ not only can provide high efficiency but also high reliability. In PLUTO-A1801PJ, capacitors are provided by NCC (Nippon Chemi-Con Corporation), and its electrical characteristics is better than other capacitors. It tolerates as high temperature as 105°C, and low current leakage.
High reliability is also an important feature for PLUTO-A1801PJ, Burn-in test in 0°C and 50°C for 12 hours at 100% loading is performed. In such test, PLUTO-A1801PJ can meet various environment standards and keep stable and efficient.
In order to protect customers’ valuable data and machine, PLUTOA1801PJ also comes with protective function such as 100% HI-POT Test, Short Circuit Protection, Over Voltage Protection and Over Current Protection.
Specification
|
MTBF |
10,000 Hours at 100% loading |
|
Temperature/
Humidity |
Storage: -20°C ~ 80°C, 5% ~ 25°% (non-condensing) Operation: 0°C ~ 50°C, 5% ~ 85°% (non-condensing) |
|
Dimension (WxDxH) |
81.5 x 150 x 40.5mm; 5.9” x 3.2” x 1.6” |
|
Risetime |
0.1 ms to 20 ms. |
