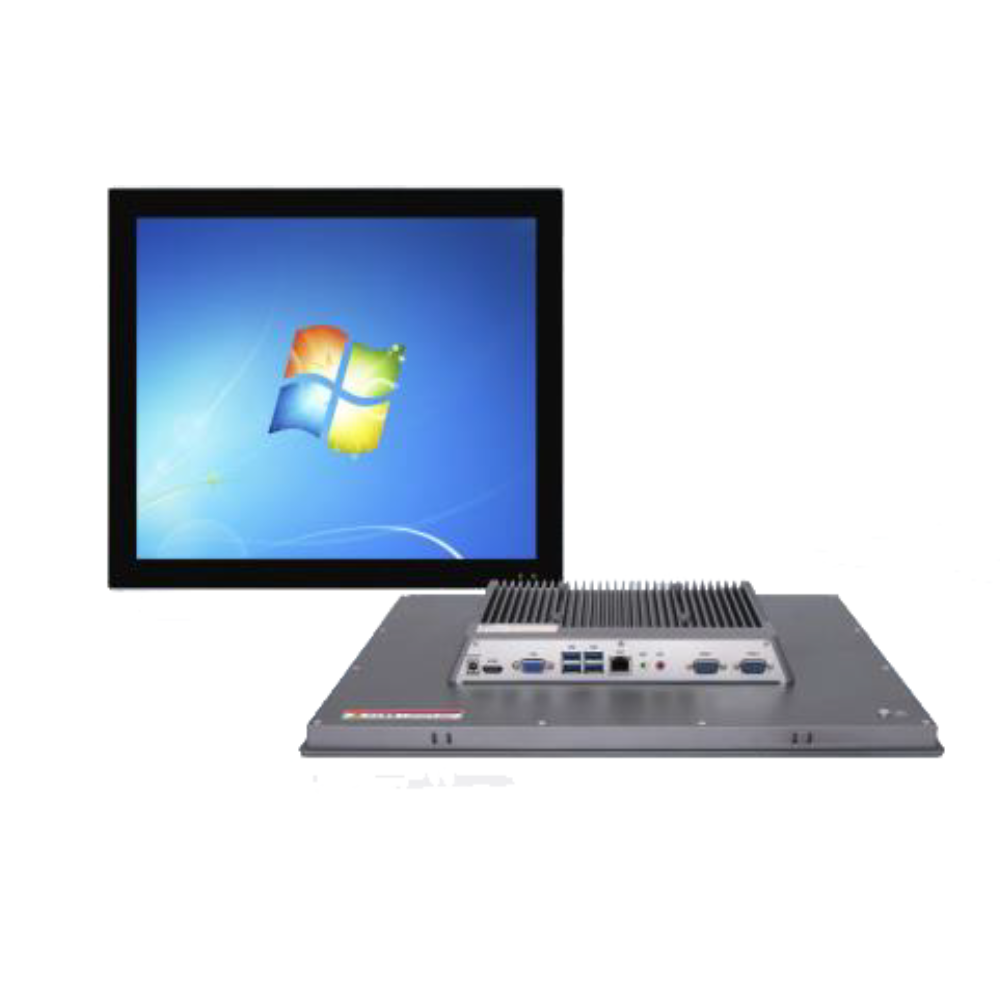

PW-PPC-190

19 Inch Industrial Panel PC

Fanless System
Supports Windows/Linux Operating Systems
On-board 10th/11th Gen Core i5/i7 processors
Supports 4G/5G Internet access function to meet communication requirements (separate module required)
Supports Wi-fi, Bluetooth communication module (need to add a separate module)
DC12V power input external adapter

Portwell Part no.	PW-PPC-190 series
Processor	Intel 10th and 11th Generation Core i5/i7 processors
RAM	DDR3/DDR4
OS	Windows / Linux
Storage	1MSATA/1SATA
Display	HDMI/VGA
I/O	5USB, 1HDMI/1VGA, 2RJ45, 2RS232, 1Hp-out /1*Mic-in
Display	19" LCD TFT Screen with LED Backlight
Resolution	1280*1024
Brightness	350cd/m2
Contrast	1000:1
Maximum color	16 million colors
Touch Screen	PCAP Touch
Light transmittance	Above 95%
Response time	<5ms
Panel cabinet	Molded aluminum alloy
Power input	12V DC power supply (AC~DC external adapter)
Overall dimensions	435mm360mm57mm
Mounting	Wall mount/Vesa mount / Panel mount options
Weight	Approx 5.5kg
Operating temperature	-10～60℃（Electronic disk)
Storage temperature	-20～80℃
Correlated humidity	10～95%@40℃（Non-condensing）
Front panel protection	IP65 standard
