ILD-PW-156N02

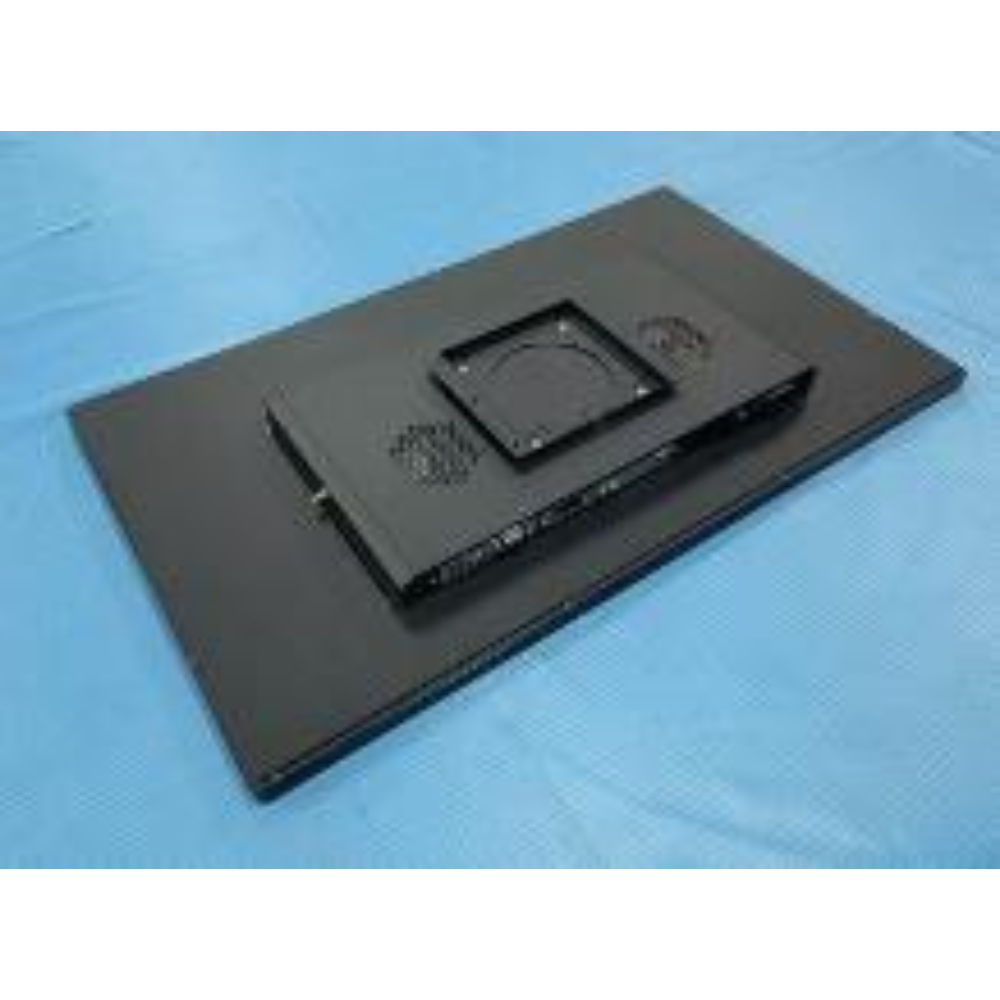

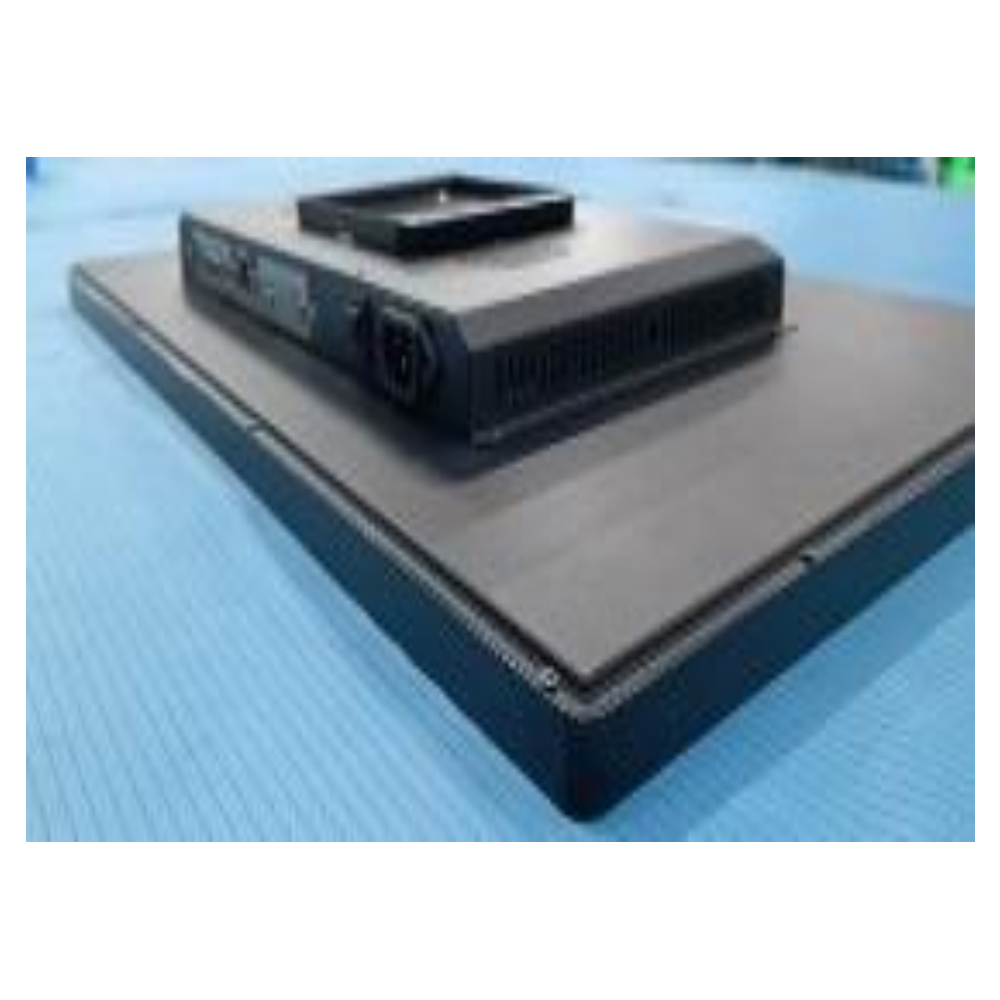

15.6” Industrial LED Display with Touch

Features :

Specification

Display MonitorILD-PW-156N02 - 15.6" LCD TFT with LED backlight
Active Viewing area344.16(W)×193.59(H) mm
TouchProjected Capacitive Touch (PCAP touchscreen – optional)
Resolution1920(RGB)×1080, FHD 141PPI
Mechanical / front sealingAluminium alloy front with IP65
Aspect Ratio16:9 (H:V)
Input optionsDVI, HDMI, VGA, USB(only for touch)
Color Depth16.7 Million colors
OSDBottom OSD buttons
MountingVesa/Wall/Rack
Luminance, White500cd/m2 (Center 1point ,Typ.)
Contrast Ratio1000:1 (Typ.) (TM)
Viewing Angle (CR>10)85/85/80/80 (Typ.)(CR≥10)
Power Consumption230V AC input / 12V DC input (both options available)
EnvironmentDesigned to comply Op Temp.: -20 ~ + 60 °C ; Storage Temp.: -30 ~ 70 °C
WeightApprox. 12kgs
Surface TreatmentHard coating(2H), Anti-glare treatment
Possible Display TypeLandscape mode
MechanicalTBD
Warranty12 months(extended warranty on demand)
Lead time12-14 weeks ARO
