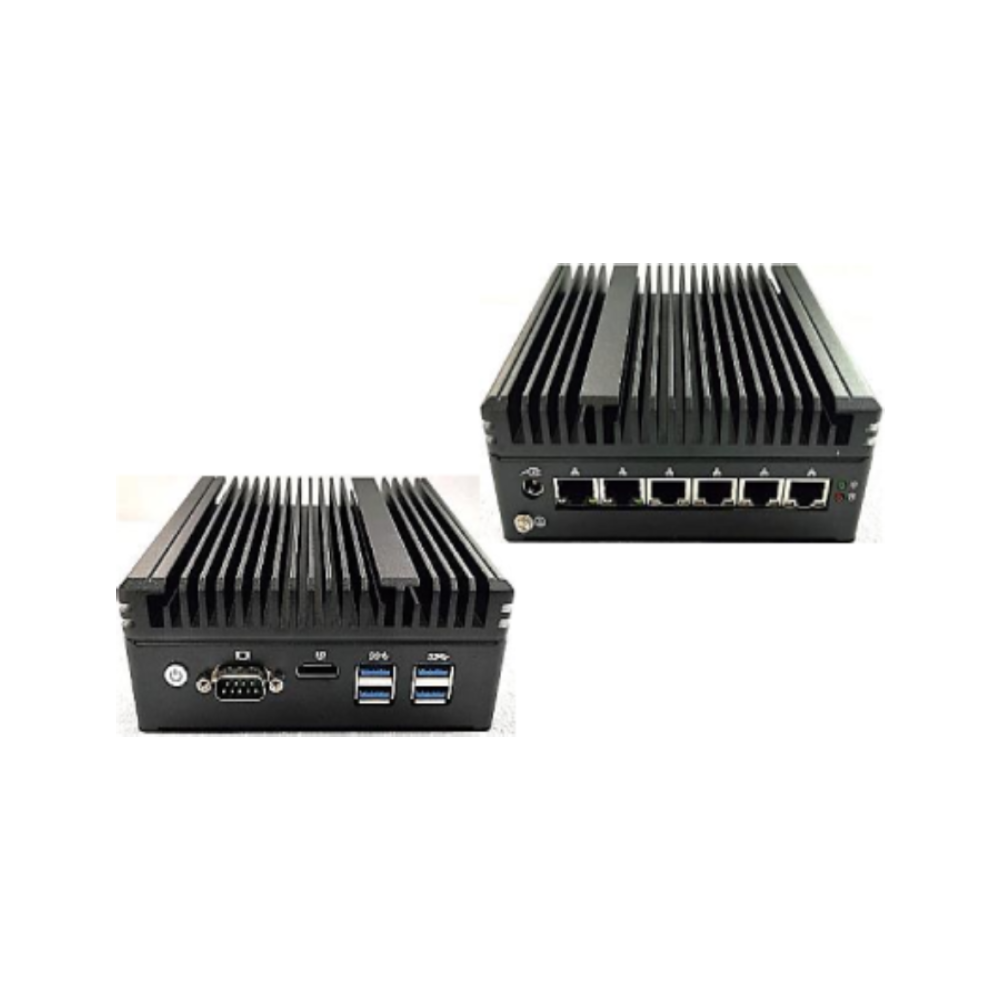

6 Port Desktop Network Appliance
PW-DNA-Ci-6P
Features :
- Support Intel Tiger Lake CPUs
- Support 6 x 2.5G I225 or I226 network port
- Support 2 x USB 3.0
- Support 1 x MSATA, 1 x SATA, 1 x M.2
- Support 1 x Mini PCIe
- Mini desktop model
Specification
| Model No. | PW-DNA-Ci-6P | |
| Form Factor | Desktop | |
| Processor Options | Intel Tiger Lake 6305E/1115G4/1135G7/1145G7/1165G7 CPUs | |
| Platform | CPU Socket | Onboard |
| Chipset | SoC | |
| BIOS | AMI BIOS | |
| Technology | DDR4 | |
| System Memory | Max. Capacity | 64GB |
| Socket | 2 x SODIMM | |
| Networking | Ethernet Ports | 6 x 2.5G Intel i225 or i226 network port, support LAN/PXE function |
| M-SATA | 1 x M-SATA | |
| Storage | SATA | 1 x SATA |
| M.2 | 1 x M.2 | |
| Power Input | 1 x DC 12V input | |
| Power Button | 1 x Power Button | |
| I/O Interface | Console | 1 x RJ45 Console |
| USB | 2 x USB 3.0 | |
| Reset Button | 1 x Reset Button | |
| Expansion | Mini PCIe | 1 x Mini PCIe |
| Watchdog | 0-255S, system reset | |
| Miscellaneous | Internal RTC with Li | |
| Battery | Yes | |
| TPM | - | |
| Cooling | Processor | 1 x CPU fan |
| Environmental Parameters | Temperature | -20°C~60°C(Operating)/ -20°C~70°C(Storage) |
| Humidity | 5 ~ 90% Non condensing | |
| System Dimensions | (WxHxD) | 215x185x45mm |
| Weight | 1.5 kg | |
| Power | Type/Watts | 60W Desktop adapter |
| Input | 90~264V@47~63Hz | |
| Warranty | 12 months standard carry-in/Return to factory |
