Desktop Network Appliance - ANS-8A62/64P

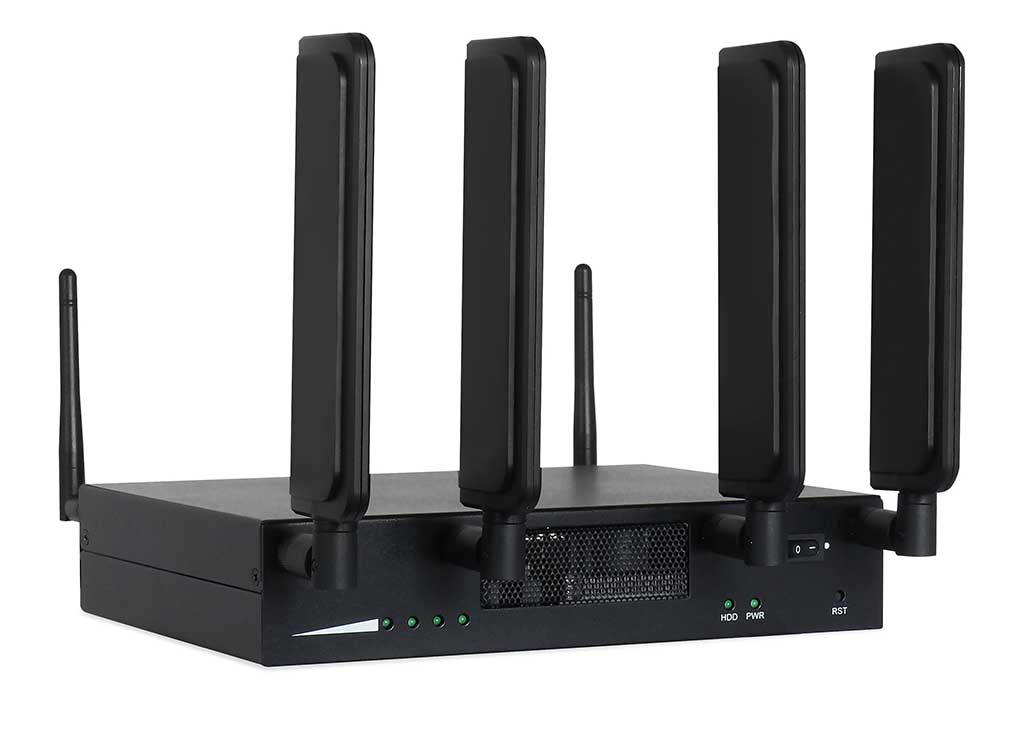

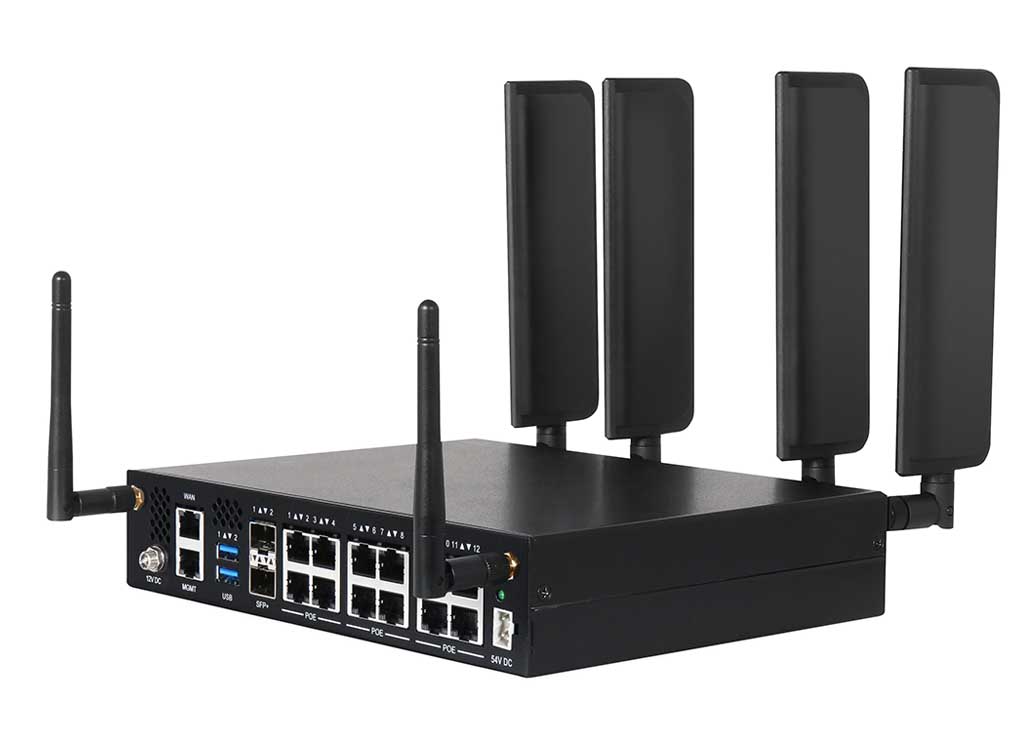

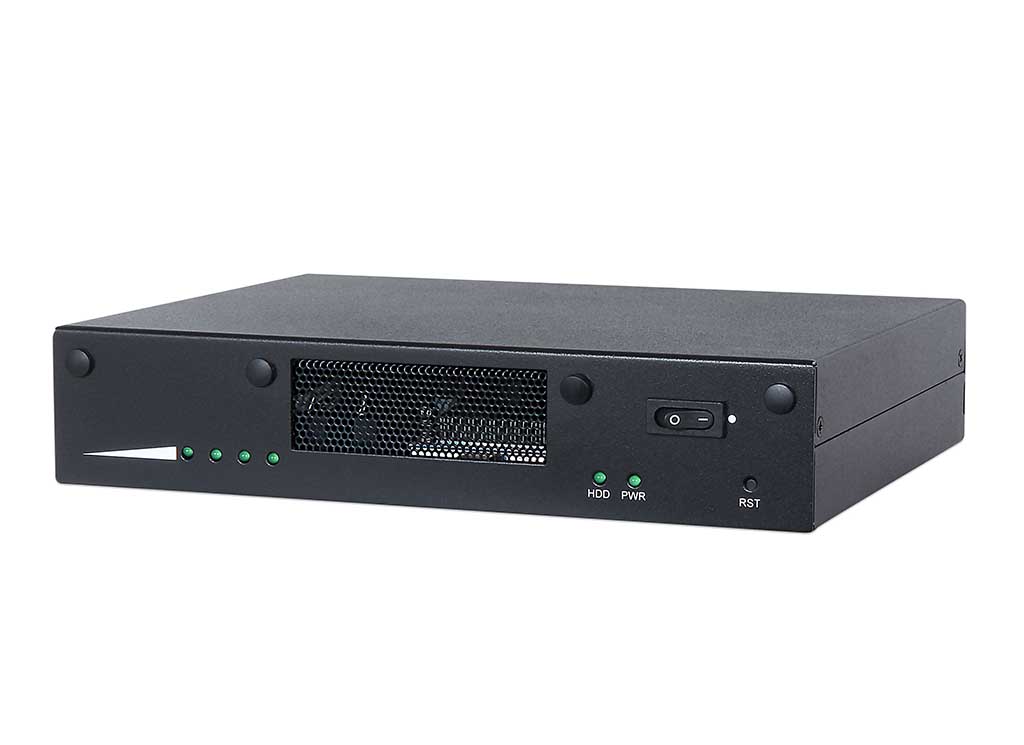

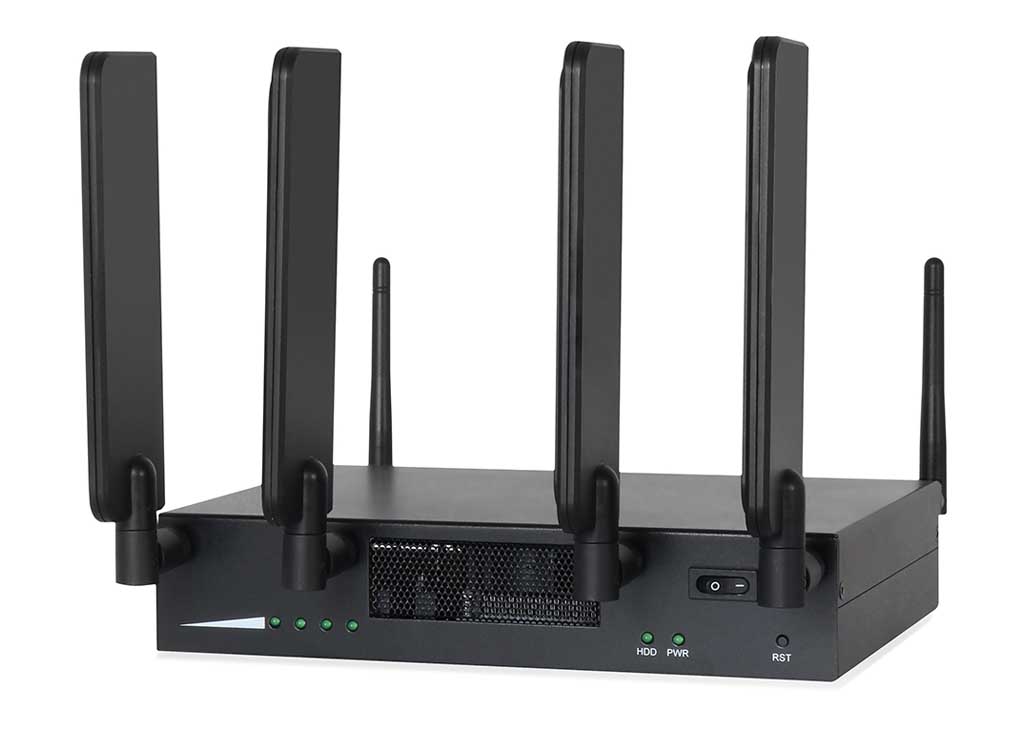

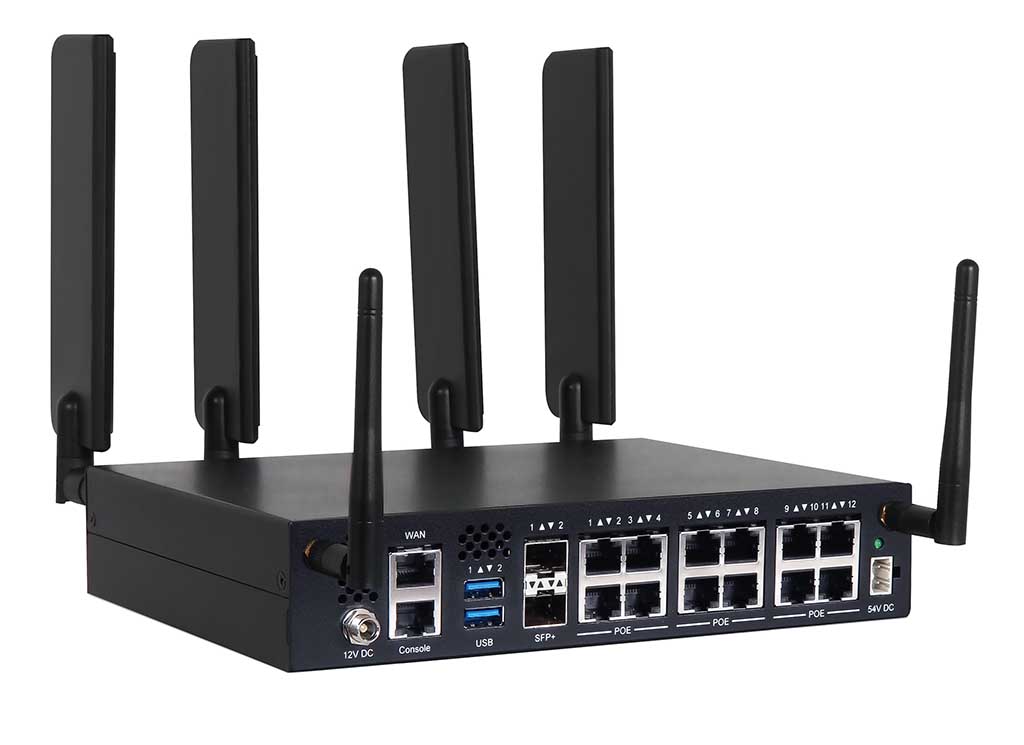

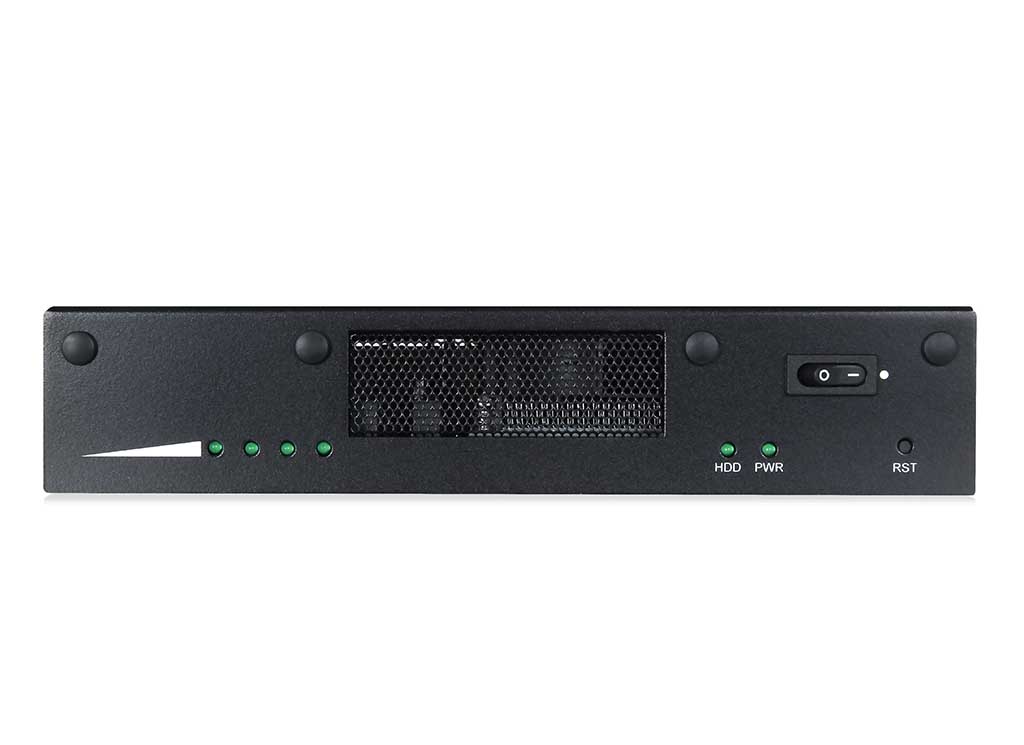

ANS-8A62/64P desktop network appliance with Intel® Denverton C3758 (8C)/ C3558(4C) processor, up to 2x SFP+, 13x GbE ports and PoE+ support, suitable for SDN (SD-WAN) application with 5G and IoT devices deployment.
Features :
- Intel Atom® C3758(8C)/ C3558(4C) Processor (Denverton)
- 2x 10Gb SFP+, 1x GbE RJ45, 12x GbE RJ45 (with PoE+ support by SKU)
- 1x RJ45 Console, 2x USB3.0
- 2 x DDR4 2400/2133 MT/s ECC SO-DIMM up to 32GB
- 1x TPM2.0(on-board)
- 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATADOM
- Design ready for 5G and WiFi 6 (802.11ax)
- Compact design 2 in 1U rackmount
Specification
|
Model |
ANS-8A62 |
ANS-8A62P |
ANS-8A64 |
ANS-8A64P |
|
|
System |
|||||
|
Processor |
Intel® Denverton C3558(4C) |
Intel® Denverton C3758(8C) |
|||
|
BIOS |
AMI |
||||
|
Memory |
2 x DDR4 2400/2133 MT/s ECC SO-DIMM up to 32GB |
||||
|
Ethernet |
– 12 x GbE RJ45 (RTL8111H), 1x GbE RJ45 (Marvell 88E1514) – 2 x SFP+ (From Intel Denverton) |
||||
|
Expansion |
1 x Half-size Mini-PCIe slot with PCIe and USB2.0 signals 1 x M.2 Key-B slot with PCIe and USB3.0 signals 2 x SIM slot |
||||
|
Security |
TPM 2.0 |
||||
|
Storage |
1 x SATA III Connector for SATADOM |
||||
|

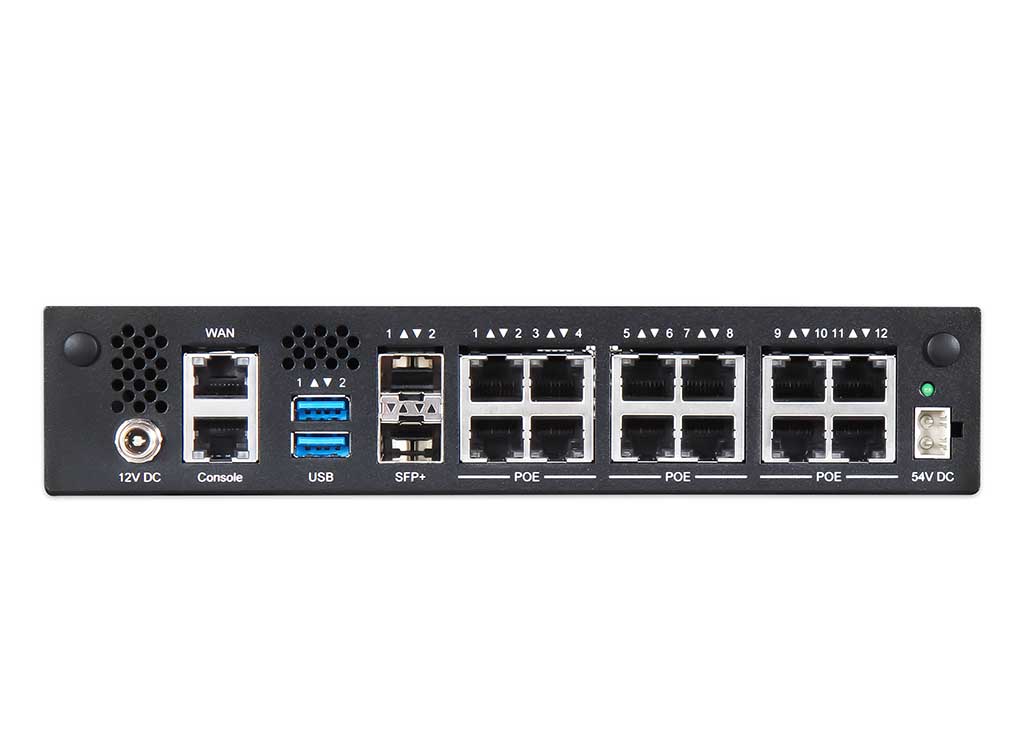

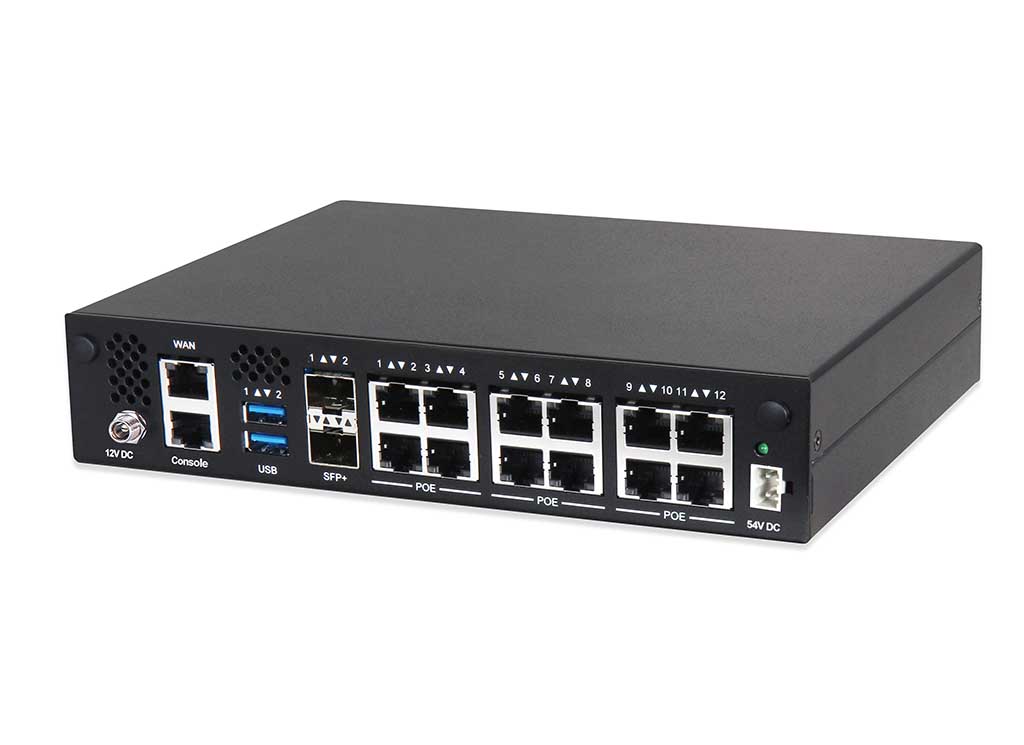

I/O Interface |
|||||
|
Console |
1 x RJ45 |
||||
|
USB |
2 x USB 3.0 |
||||
|
Ethernet |
– 13 x RJ45 GbE – 2 x SFP+ 10GbE |
||||
|
PoE+ (Optional) |
270W power support up to 12x GbE RJ45 PoE+ |
||||
|
Antenna |
6 x SMA Antenna holes for WiFi or LTE/5G module |
||||
|
Mechanical |
|||||
|
Dimension |
217 (W) x 168 (D) x 44 (H) mm |
||||
|
Weight |
3.5Kg |
||||
|
System |
65W Power Adapter, 110-220V AC input, 12V DC output |
||||
|
PoE+ |
270W Power Adapter, 90-264V AC input, 54V DC output (PoE model only) |
||||
|
Environment |
|||||
|
OS Temp. |
0°C ~ 40°C, 10 ~ 90% RH |
||||
|
Storage Temp. |
-10°C ~ 70°C, 10 ~ 95% RH@55°C |
||||
|
Certification |
CE/FCC Class A |
||||
Ordering Guide
|
AS1-3306 |
(R). ANS-8A62. C3558 4-core. 12x GbE LAN, 2x SFP+ |
|
AS1-3304 |
(R). ANS-8A62P. C3558 4-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required) |
|
AS1-3305 |
(R). ANS-8A64. C3758 8-core. 12x GbE LAN, 2x SFP+ |
|
AS1-3303 |
(R). ANS-8A64P. C3758 8-core. 12x GbE LAN, 2x SFP+, PoE+(PoE Adapter is required) |
