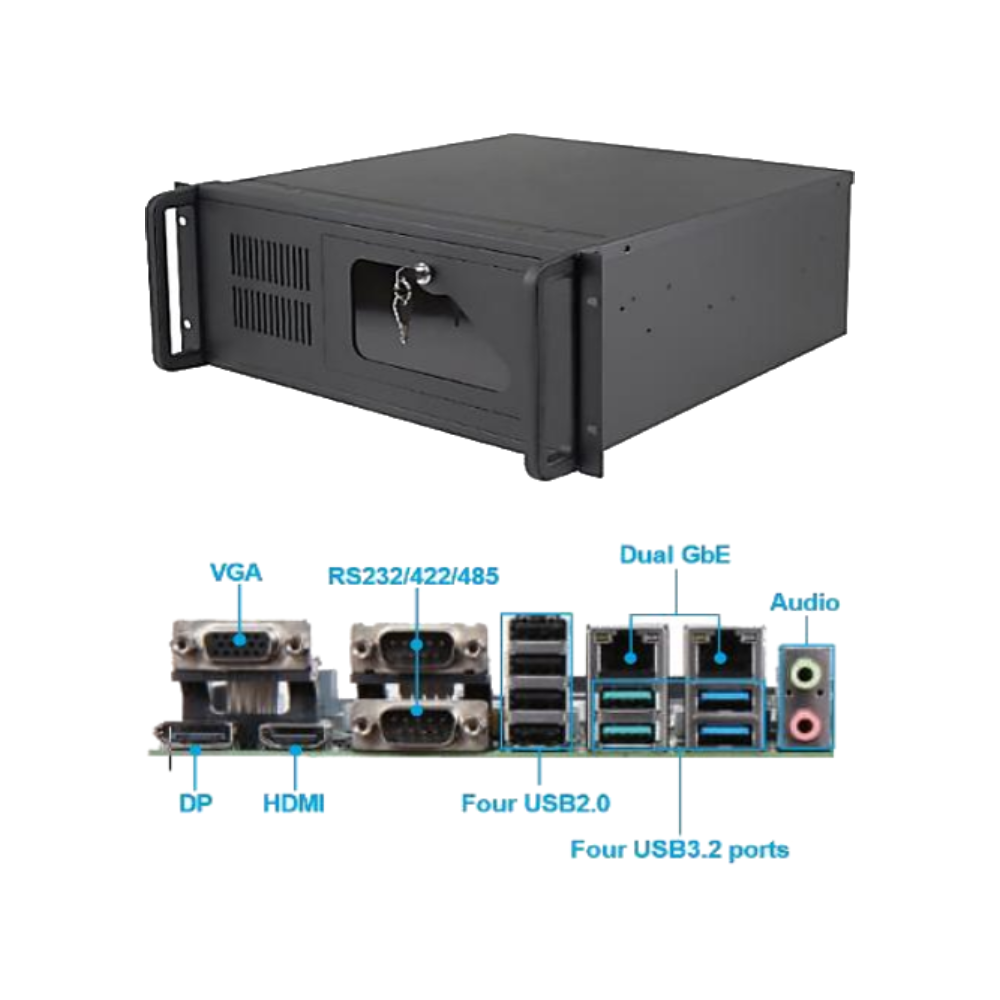

19” 4U Rackmount Industrial PC
Industrial PCs 812 series
Features :
- Intel® 10th Gen Core™ Processors CPU in LGA1200 package
- 6x SATAIII ports (port1/port2 shared with M.2 Key M)
- Audio Jack on rear I/O with Line-out / Mic-in with Realtek ALC897 Audio controller
- Intel® I219LM (1G) and Intel® I225V (2.5G) Ethernet controller 2x RJ45 connectors on rear I/O
- 2x RS232/422/485 port one on Rear I/O, 1x on-board header, 4x RS232 port on pin header
Specification
| Form Factor | 19” 4U Rackmount Industrial PC |
| Processor | Intel® 10th Gen Core™ Processors CPU in LGA1200 package |
| Chipset | Intel® Q470E |
| BIOS | AMI uEFI BIOS |
| Memory | Supports up to 128GB DDR4 2400/2666/2933 Non-ECC on four Long-DIMM socket |
| Storage Devices | 6x SATAIII ports (port1/port2 shared with M.2 Key M) |
| Watchdog Timer | Programmable watchdog timer, time out period from 1 sec to 255 secs |
| Hardware Monitoring | System monitor (Voltage, Fan Speed and Temperature) |
Expansion Interface | – 2x PCIe x16 (1x PCIe x8 signal) |
| – 3x PCIe x4 slots , 2x PCI slots | |
| – 1x M.2 (Key M) for SSD, 1x M.2 (Key E) for Wireless | |
| – 1x M.2 (Key B) for 4G/5G module | |
| Super I/O | NCT6116D |
| Audio | Audio Jack on rear I/O with Line-out / Mic-in with Realtek ALC897 Audio controller |
| Ethernet | Intel® I219LM (1G) and Intel® I225V (2.5G) Ethernet controller 2x RJ45 connectors on rear I/O |
| Serial Port | 2x RS232/422/485 port one on Rear I/O, 1x on-board header, 4x RS232 port on pin header |
| USB Options | 4x USB3.2 (Gen2) on rear I/O (3x Type A + 1x Type C), 2x USB3.2 (Gen1) on pin header 2x USB2.0 on pin header, 2x vertical connectors |
| GPIO | 8-bit configurable controlled by embedded controller |
| Graphic Controller | Intel® graphic UHD 630 supports DirectX 12, OpenGL 4.5 |
Display Interface options | 1x DP port on rear I/O, resolution up to 4096×2160 |
| 1x VGA port on rear I/O resolution up to 1920×1200 | |
| 1x HDMI connector on rear I/O, resolution up to 4096×2160 @ 30ghz | |
| Power Supply | 230V AC input (ATX Power supply) |
Environment | – Operation Temperature: 0°C to 60°C |
| – Storage Temperature: -20°C to 80°C | |
| – Relative Humidity: 5% to 95%, non-condensing | |
| MTBF | Over 100,000 hours at 40°C |
| Mechanical Dimension (WxDxH) | 427 mm x 450 mm x 177 mm |
| Material | Quality fine 1.2mm SGCC steel |
| Cooling Fan | 1-120mm fan on front and 2-80mm fans on rear panel |
| System Control | Power/ Reset/ KB-LK switch, Power / HDD/KB-LK LED |
| Colour | Black |
