19” 4U 14 slot Rackmount Industrial PC
Features :

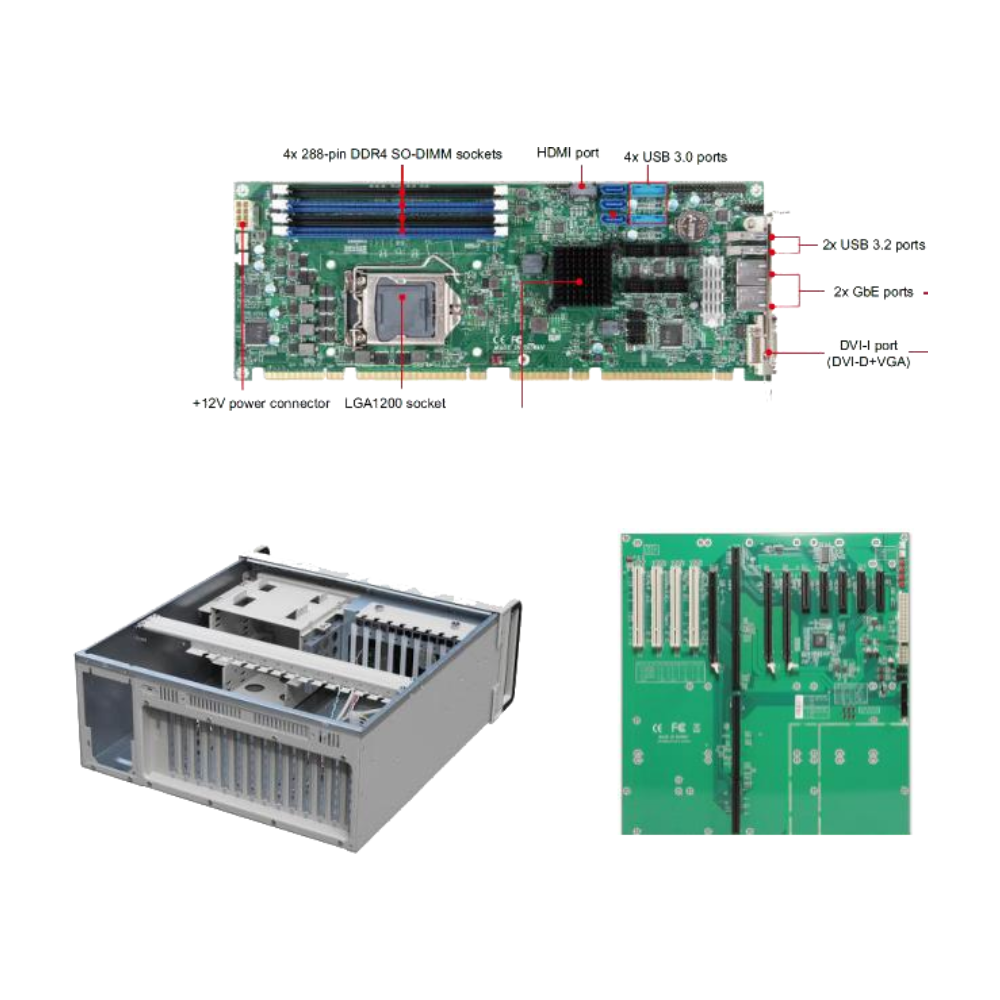

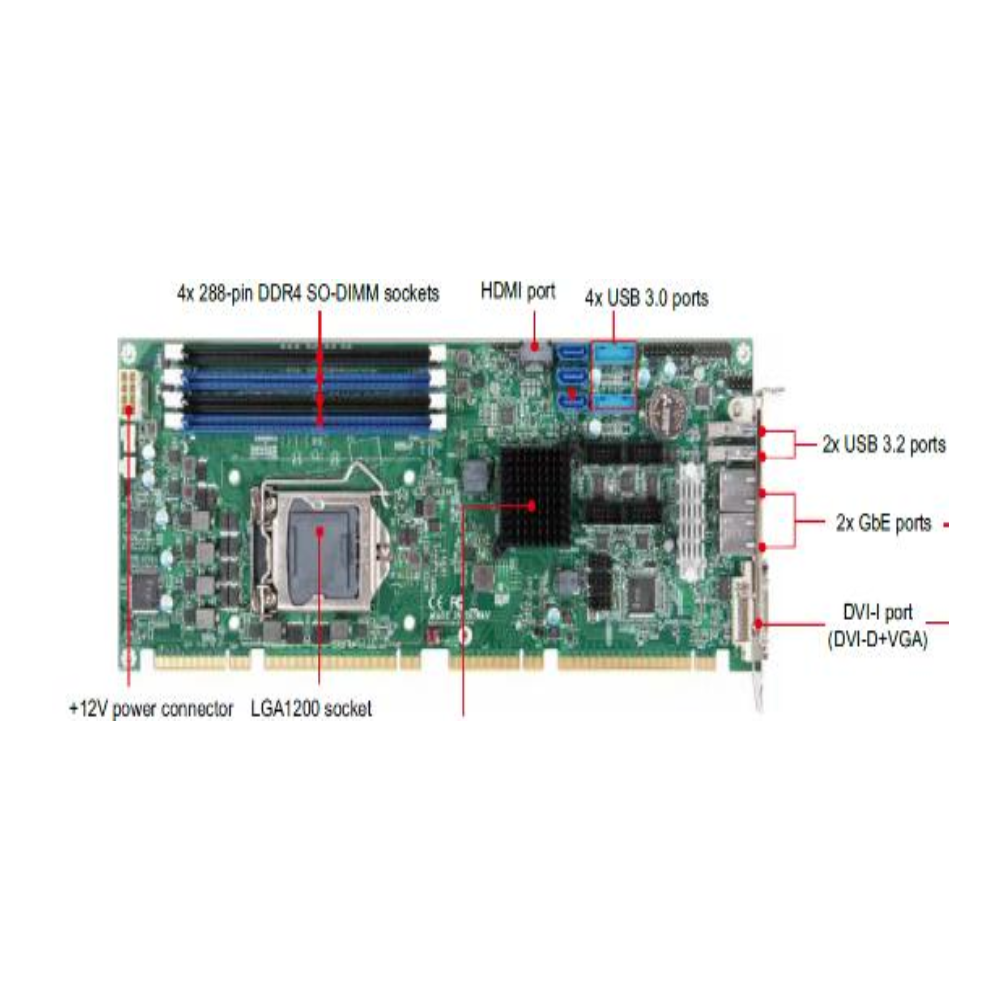

PW-IPC-811513A4-4U IPC is based on Intel® Q470E chipset and
Desktop processors including Intel® 10th Gen Core™ i3/i5/i7/i9 SKU.
It provides robust I/O features including USB 3.2 Gen2, dual Gigabit
Ethernet, and triple independent display via HDMI, VGA, and DVI-D.

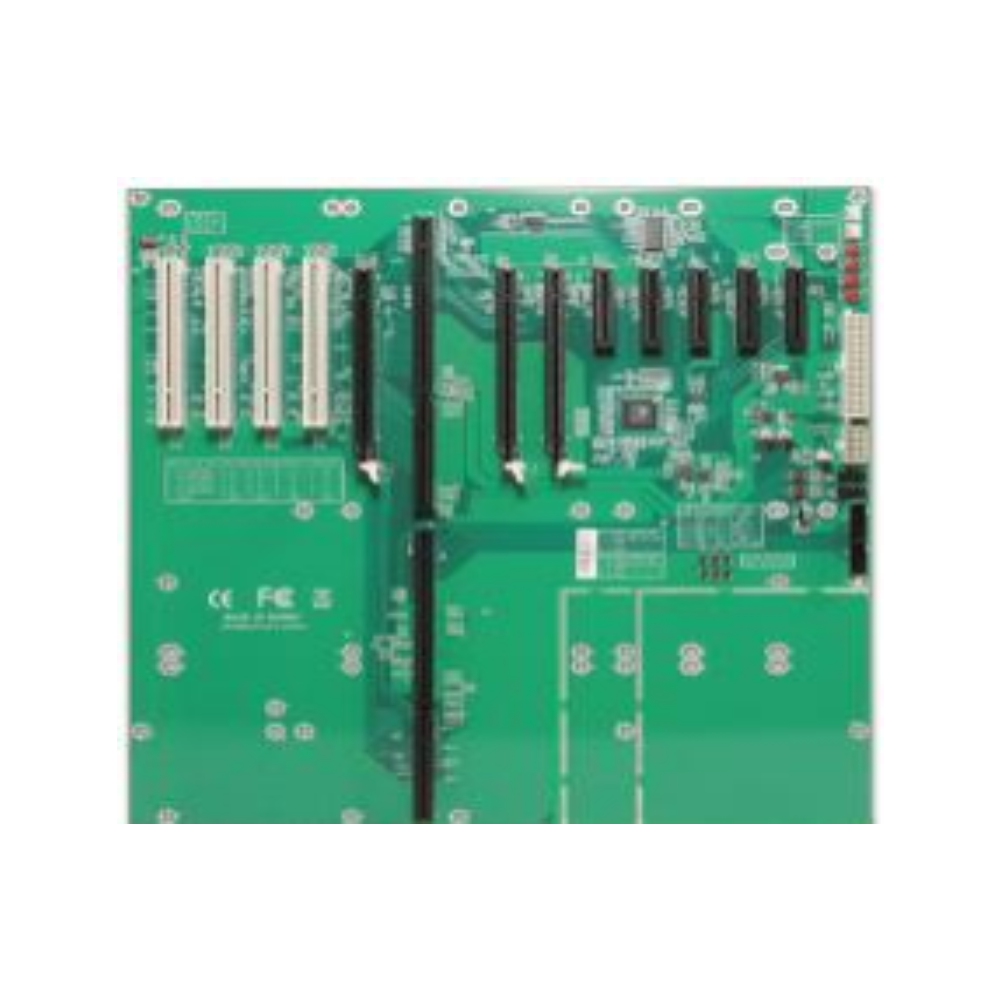

Paired with PBPE-13A4 13-slot PICMG 1.3 backplane, the system
supports scalable PCIe/PCI expansion for high-end industrial
applications like Industrial automation, machine vision etc
Specification

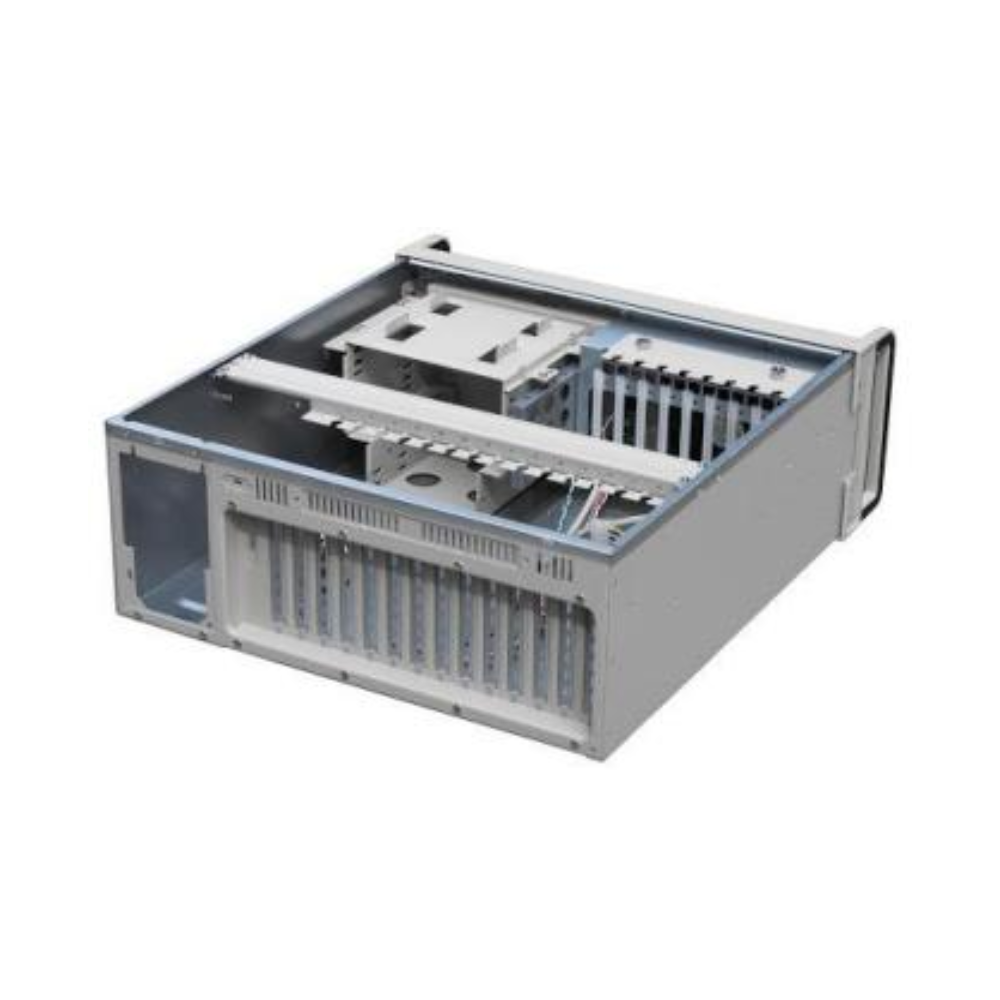

| Form Factor | 19” 4U Rackmount Industrial PC with 14 slot backplane (PICMG1.3 Platform) |
| Processor | Intel® 10th Gen Core™ Processors CPU in LGA1200 package, up to 95W TDP |
| Chipset | Intel® Q470E |
| BIOS | AMI UEFI BIOS |
| Memory | Supports up to 128GB DDR4 2400/2666 Non-ECC on four Long-DIMM socket |
| Storage Devices | 5x SATAIII ports (RAID 0/1/5/10 supported), 1x M.2 2280 Key M |
| Watchdog Timer | Programmable watchdog timer, time out period from 0.5 sec to 255 secs |
| Hardware Monitoring | System monitor (Voltage, Fan Speed and Temperature) |
| Expansion Interface | 1x PCIe x16 |
| PCIe x16(2, x1 signal) | |
| PCIe x4(5, x1 signal) | |
| 4x PCI (Backplane supports PCIe Gen 3) | |
| Super I/O | ITE ITS1121-E |
| Audio | On-board audio via Realtek ALC888S (7.1 channel support) |
| Ethernet | Intel® WG219LM (1G) and Intel® WG216LM (1G) Ethernet controller 2x RJ45 connectors on rear I/O |
| Serial Port | 2x RS232, 2x RS232/422/485 selectable via Fintek F81216DG (LPC to COM) |
| USB Options | 4x USB2.0 (via backplane), 4x USB3.2 Gen2 (on board), 2x USB 3.2 Gen2 (on bracket) |
| GPIO | 8-bit programmable Digital I/O |
| Graphic Controller | Intel® UHD graphic supports DirectX 12, OpenGL 4.5 |
| Display Interface options | 1x DVI-D (via DVI-I port), resolution up to 1920×1200 @60Hz |
| 1x VGA (via DVI-I port), resolution up to 1920×1200 @60Hz | |
| 1x HDMI connector on board, resolution up to 4096×2160 @30Hz | |
| Power Supply | 230V AC input (ATX Power supply) / Redundant PSU supported |
| Environment | – Operation Temperature: 0°C to 60°C |
| – Storage Temperature: -20°C to 80°C | |
| – Relative Humidity: 5% to 95%, non-condensing | |
| MTBF | Over 100,000 hours at 40°C |
| Mechanical Dimension (WxDxH) | 427 mm x 450 mm x 177 mm |
| Material | Quality fine 1.2mm SGCC steel |
| Cooling Fan | 1-12025mm fan on front |
| System Control | Power/Reset/ KB-LK switch, Power / HDD/KB-LK LED |
| Colour | Black/Beige |
