Fanless Box PC
PW-BPC-L2 series
Features :
- Compact Fanless Box
- Supports Intel Core i5-6th Gen and J6412 processor options
- Supports 1* VGA, 1* HDMI, 2* LAN, 2 * USB 4.0, 2* USB3.0, 6* COM
- 1* Power socket, Supports DC 9V ~36V wide voltage input
- Wide operating temperature for harsh environments
- Supports Wi-fi
Specification
| Processor | Intel Core i5 6th Generation and Celeron J6412 processor options |
|---|---|
| RAM | DDR3 1333/1600, 1*SO-DIMM up to 16GB |
| Storage | 32GB/128GB/256GB/512GB options 1*SATA 2.0, 1*MSATA 2.0 |
| Expansion option | 1*Mini PCIe (WiFi+BT,3G/4G) |

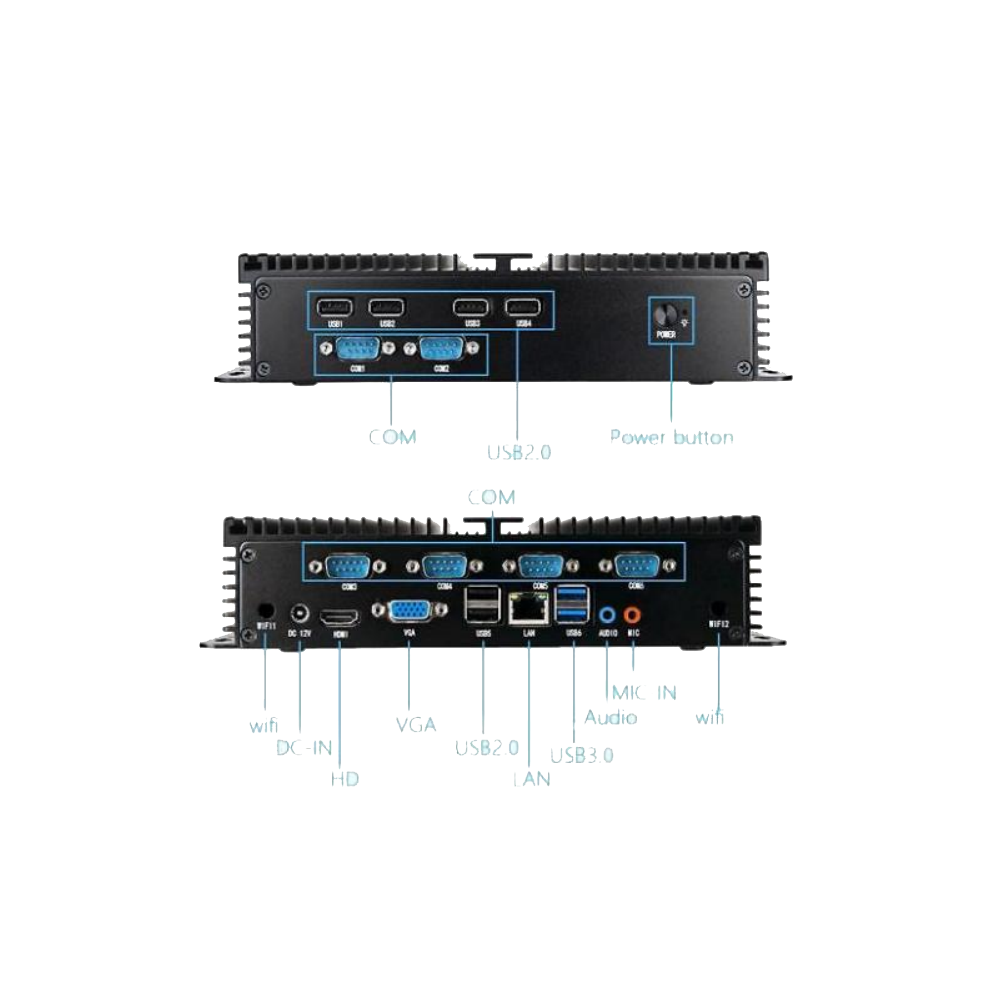

| I/O Options | 2 x RJ45 GB LAN 4 x USB2.0 / 2 x USB 3.0 6 x DB9 Comm Ports 1 x HDMI, 1 x VGA 1 x Audio, 1 x Mic 8 channel x GPIO (4in/4out) |
| Buttons | 1 x Power Button |
| Power input | 1 x 9~36V power input |
| OS | Windows / Linux |
| Others | Watchdog |
| Power | DC 12V input. External AC~DC adapter |
| Mechanical | Aluminum alloy |
| Installation | Desktop |

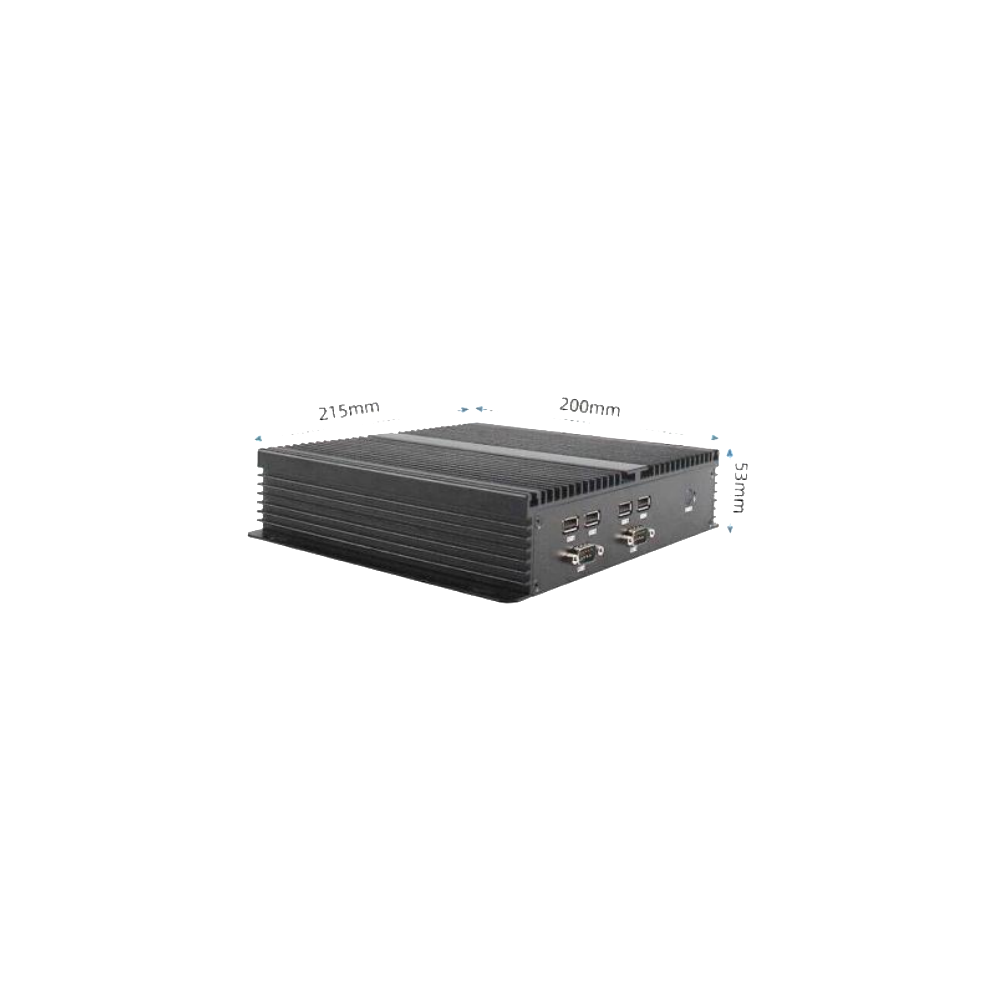

| Dimensions | 220 x 200 x 55mm |
| Weight | 1.8 Kg |
| Environmental | Operating Temp -10°C to +60°C, Storage Temp -20°C to +70°C |
| Storage humidity | 10%~90% @30°C |
