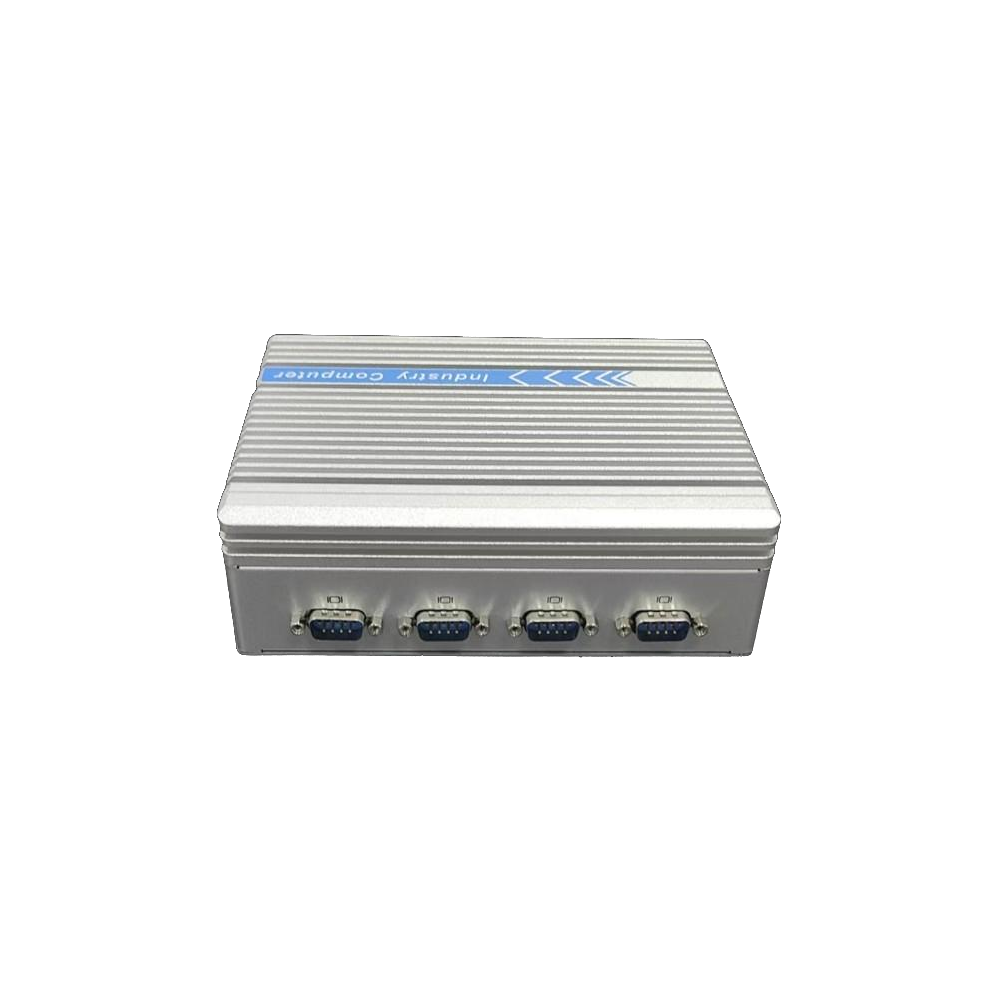

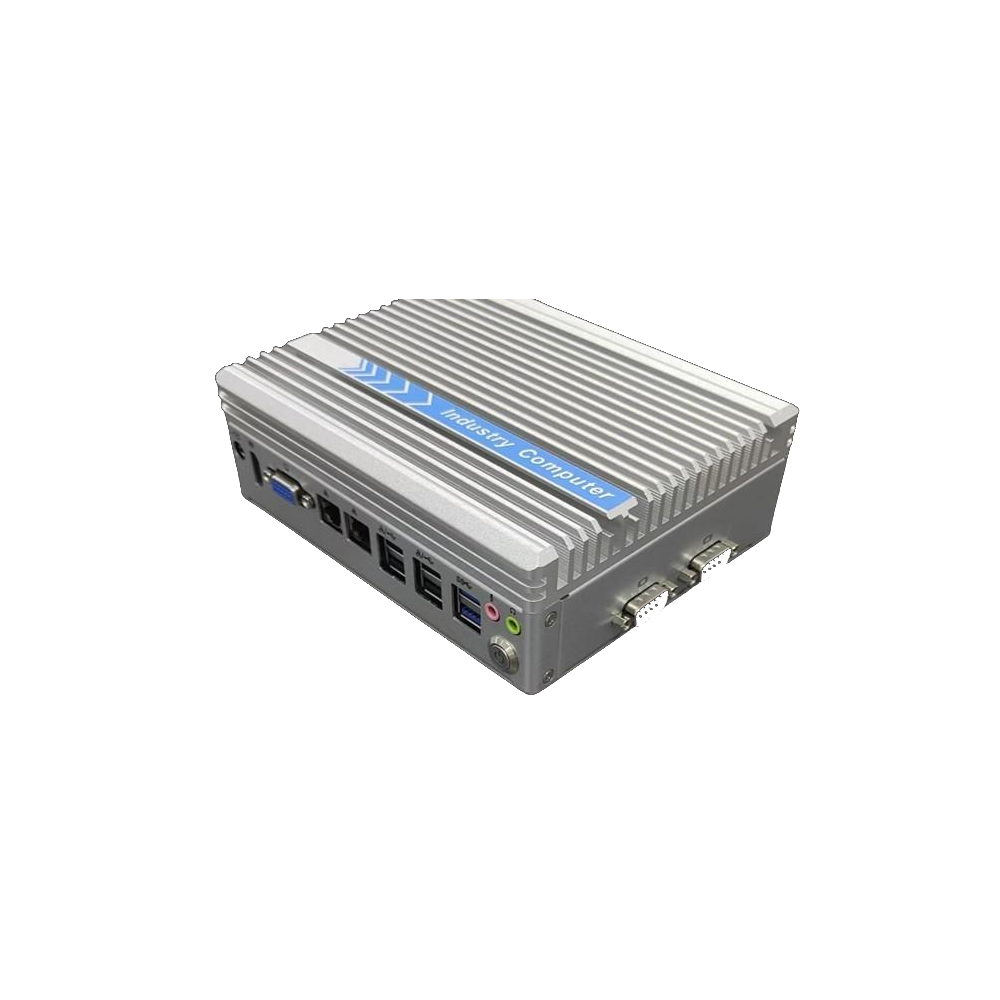

Fanless Box PC
PW-BPC-08 series
Features :
- Compact Fanless Box
- Supports Intel Core i3-8th Generation processors
- Supports 1* VGA, 1* HDMI, 2* LAN, 2 * USB 4.0, 2* USB3.0, 6* COM
- 1* Power socket, Supports DC 9V ~36V wide voltage input
- Wide operating temperature for harsh environments
- Supports Wi-fi
Specification
Processor | Intel Core i3 8th Generation processor (Core i5 optional) |
---|---|
RAM | DDR3 up to 32GB |
Storage | 32GB/128GB/256GB/512GB options |
1x MSATA | |
I/O Options | 2 x RJ45 GB LAN 6 x USB 6 x DB9 Comm Ports 1 x HDMI (2560×160@Hz), 1 x VGA 1x Audio, 1xMic 8 channel x GPIO (4in/4out) |
Buttons | 1 x Power Button |
Power input | 1 x 9~36V power input |
OS | Windows / Linux |
Others | Watchdog |
Power | DC 12V input. External AC~DC adapter |
Mechanical | Aluminum alloy with Galvanized steel plate |
Installation | Desktop |
Dimensions | 17.2 x 13.5 x 5.4 cm |
Weight | 1.5 Kg |
Environmental | Operating Temp -5°C to +55°C, Storage Temp -10°C to +60°C |
Storage humidity | 10%~90% @30°C |
