RS4U-B656
RS4U-B656
Automated Optical Inspection
Features :
- 4k codec encode & decode ability
- 9-32V wide range DC in
- eAPI function control
Video
Description
Compact System for Industrial Automation & Control Targeting
Specification
| CPU | Intel® Core™ i7-1185G7E Processor |
|---|---|
| Chassis | WEBS-3560B |
| Memory | B473K0D0 (GP).8GB DDR4/2400 SO-DIMM DRAM Module. 1.2V. 1Gx8 , SK Hynix. WARIS |
| Storage | CFEX 2GB & 64GB SATA SSD |

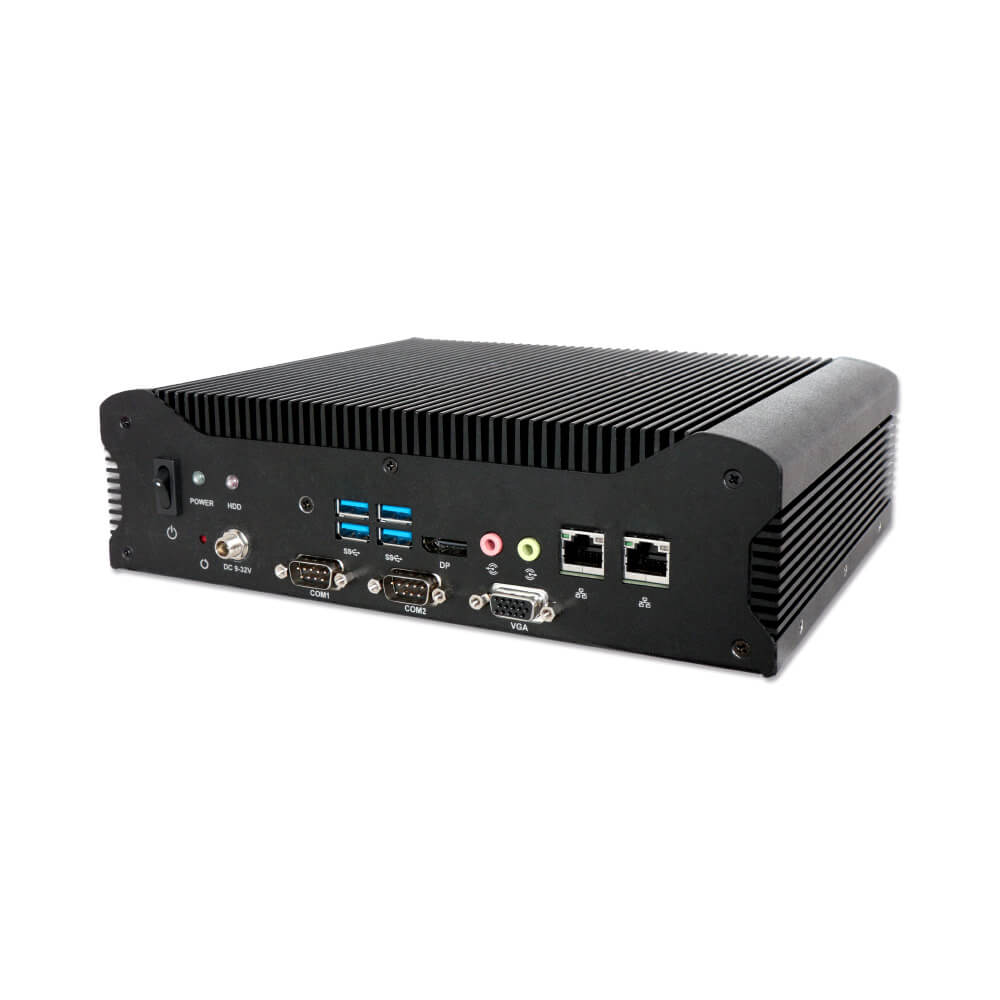

| I/O interface | – 1x VGA, 1x DP – 4x USB3.0 (Rear) – 2 x COM (1x RS-232/422/485, 1x RS-232) – 1 x Audio support Mic-in & Line-out – 2x Gigabit Ethernet |
| Power Input | 9-32V DC Input, 60W AC/DC Power Adapter/td> |
| Dimension | 253(W) x 190(D) x 70(H) mm |
| Weight | 4 Kg |
| Operating Temperature | 0 ~ 40 °C |
Support (Documents & Downloads)
Catalog_RS4U-B656-Application_Note 848.9 KB
RS4U-B656 2.1 MB
