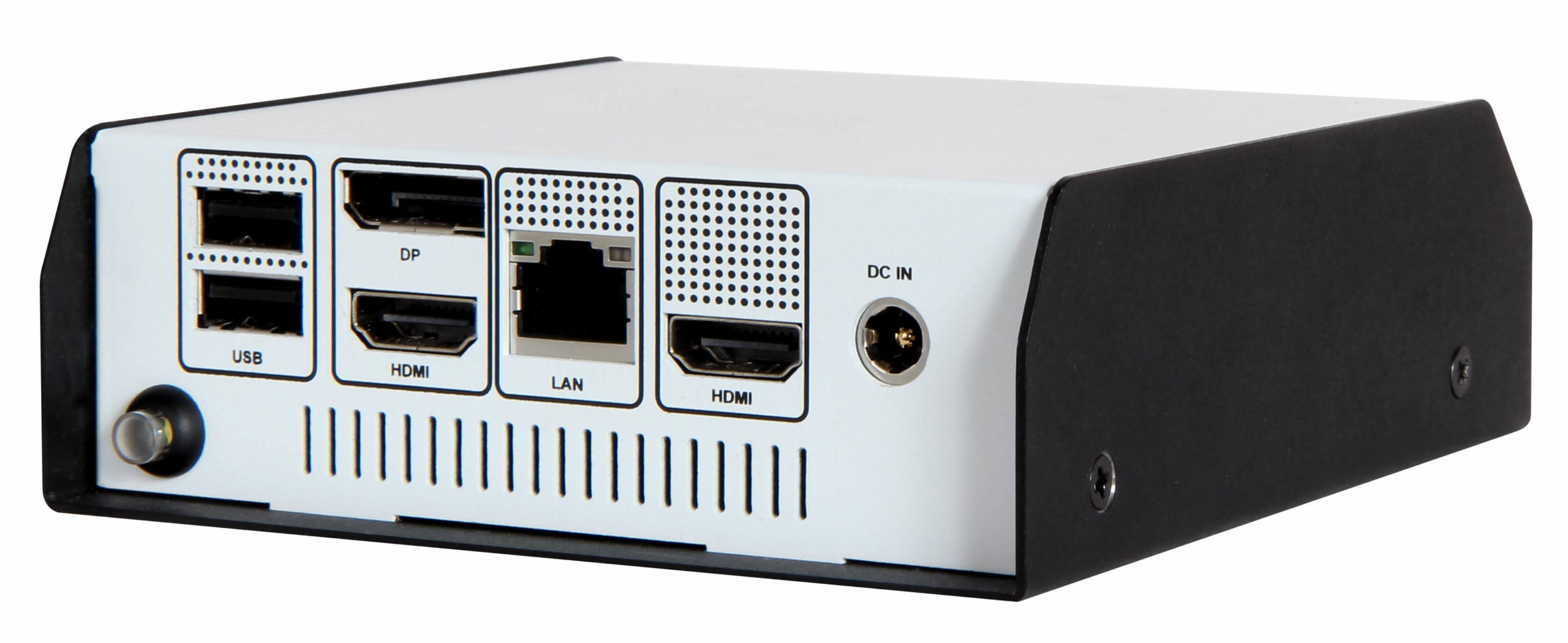

RICH-61E0
Embedded fan-less system with Intel® 7th Gen Kabylake-U based NUC board
Features :
- Supports Intel® 7th Gen Kabylake-U Core™ MCP Processors
- Supports Dual Channel DDR4 SO-DIMM 2133 ,up to 32GB
- Supports 2 x HDMI, 1 x DP
- Support Dual Display (HDMI2 + DP or HDMI 1 + HDMI 2)
- Support xUSB 3.0, 1 x USB 3.1 (Type C), 1 x IR
- Support M.2 slots 1 x Key E(Supports 2230) and 1 x Key M(Supports 2260)
Description
Portwell Fanless Embedded-PC RICH-61E0 builds on Intel® 7th Gen (Kabylake-U) Core™ MCP Processors that can support dual channel DDR4 SO-DIMM memory and Support one Gigabit Ethernet port and M.2
Specification
|
Model |
RICH-61E0 |
|
M/B |
WUX-7100 U/7300 U |
|
Form Factor |
NUC |
| System | |
|---|---|
|
CPU |
Intel® Kabylake-U Processor Ci5-7300U, 15W TDP(2C/4T) Intel® Kabylake-U Processor Ci3-7100U, 15W TDP(2C/4T) |
|
BIOS |
AMI UEFI
|
|
Memory |
DDR4 SO-Dimms/Up to 32GB
|
|
Graphic Controller |
Intel® HD Graphics 620
|
|
Super I/O |
EC |
|
Storage |
1x SATA III port 1x M.2 Key M 2260 for storage
|
| External I/O | |
|---|---|
|
Serial |
N/A
|
|
USB |
3x USB 3.0 1x USB 3.1 Type C |
|
Display |
2x HDMI, DP
|
|
Ethernet |
Intel® I219LM |
|
PS/2 |
N/A
|
|
Audio |
Mic-in or Line-out
|
|
D I/O |
N/A
|
|
Expansion |
1x M.2 Key E 2230 for wireless module support WiFi, BT, 3G & 4G
|
| PWR | |
|---|---|
|
System |
DC 12V~19V
|
| Environment | |
|---|---|
|
OP Temp. |
0°C ~ 60°C
|
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz IEC 60068-2-6 |
|
Shock |
50G, 11 msec, IEC 60068-2-27
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
113 x 135 x 41 mm
|
|
Weight |
1.5 Kg |
| Ordering Guide | |
|---|---|
|
AS5-3546 |
(R).ATO. RICH-61E0. NUC System
|
