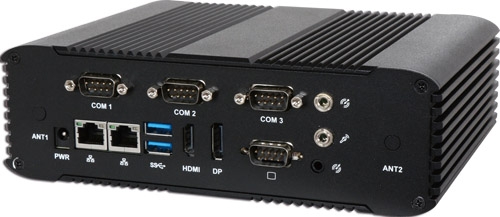

WEBS-13D1
Embedded Rugged Fan-less PC with Intel® Atom® E3900 Series based 3.5” ECX Board
Features :
- Support Intel® Apollo Lake series processor
- Support DDR3L-1866/1600 non-ECC SDRAM
- Support dual displays including DP and HDMI
- Support Mini-PCIe / mSATA (Dual Mini-PCIe socket)
- Support 4x COM ports( 1x RS-232/422/485)
- 2x Antenna hole for WiFi or 3G/GPS module to use
Description
Portwell Fanless Embedded-PC WEBS-13D1 adopts Intel® Atom® Dual/Quad Core™ processor E3900 series and takes its advantages to develop Portwell Design of that the CPU/chipset on the backside of the board is good for system thermal design. The perfect thermal solution can easily solve the thermal of CPU. The external power switch is an another plus factor. The WEBS-13D1 is a great platform for kiosk, digital signage, and automation applications.
Specification
| System | |
|---|---|
|
M/B |
PEB-2773
|
|
Form Factor |
3.5″ ECX
|
| System | |
|---|---|
|
CPU |
Intel® Atom® Dual/Quad Core E3900 Series Processor
|
|
Chipset |
Intel® SoC
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L/8GB
|
|
Graphic Controller |
Intel® Gen 9 Graphics
|
|
Audio Codec |
ALC892 |
|
Super I/O |
EC ITE IT8528 + Fintek F81216
|
|
Storage |
1x 2.5” SATA HDD/SSD 1x mSATA
|
| External I/O | |
|---|---|
|
Serial |
1x RS-232/422/485 3x RS-232 |
|
USB |
2x USB3.0 ports on Rear I/O 4x USB3.0 ports on Front I/O
|
|
Display |
HDMI, DP
|
|
Ethernet |
Intel® I210IT x 2
|
|
PS/2 |
N/A
|
|
Audio |
Line-out, Line-in, Mic-in
|
|
D I/O |
8-bit Digital I/O
|
|
Expansion |
2x Mini-PCIe socket
|
| PWR | |
|---|---|
|
System |
DC 12V ~ 24V
|
| Environment | |
|---|---|
|
OP Temp. |
-20°C ~ 60°C
|
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
200 × 150 × 80 mm
|
|
Weight |
2 Kg
|
|
Mounting |
Wall, Panel mounting
|
| Ordering Guide | |
|---|---|
|
AS5-3523 |
(R).ATO. WEBS-13D1. 3.5” System
|
