WEBS-21I0

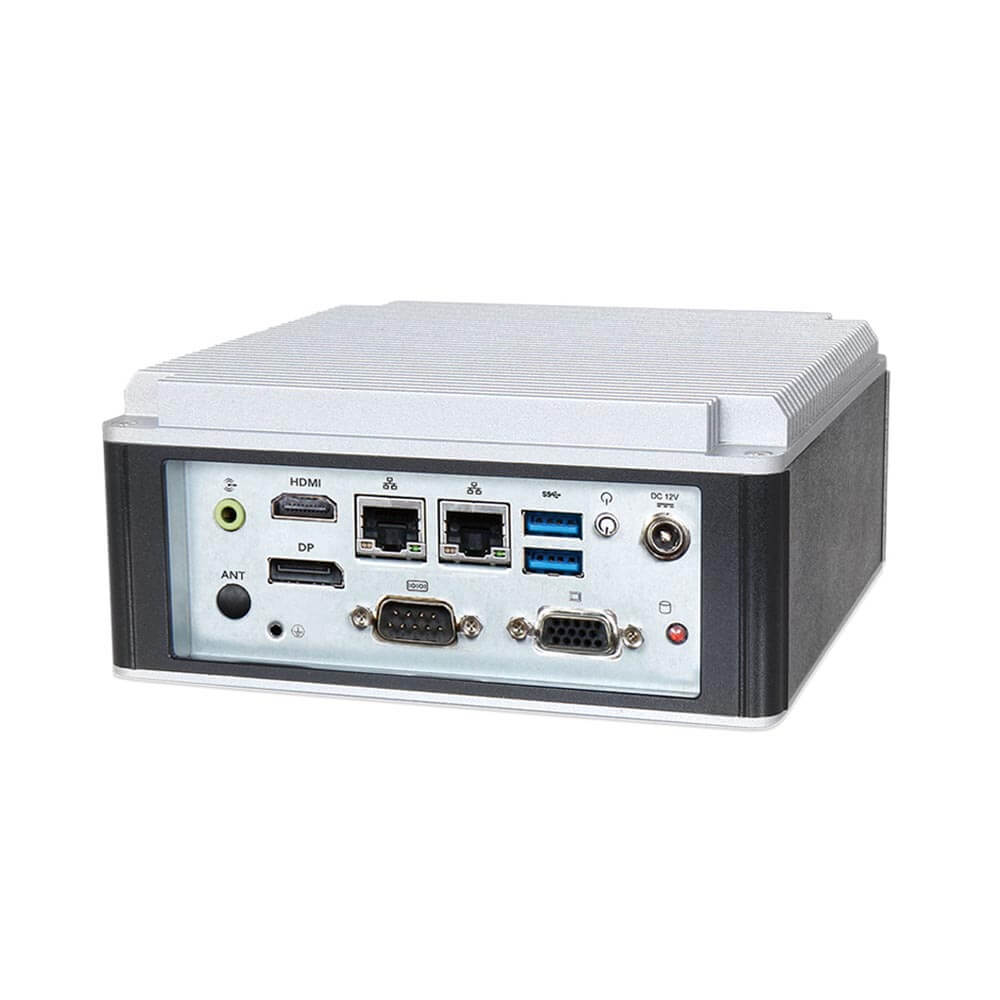

Rugged Embedded Fan-Less PC with Intel® Atom® x6000E Series based NANO-ITX Board, Wide Operating Temperature, 12V DC-In
Features :
- Powered by Intel® Atom® Elkhart Lake Dual/Quad-core™ x6000 Series SoC
- Support 1x 2.5” HDD/SSD, 1x mSATA,1x Micro SD
- Triple Display by VGA, DP,HDMI
- 1x M.2 and 1x Full-size Mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS)

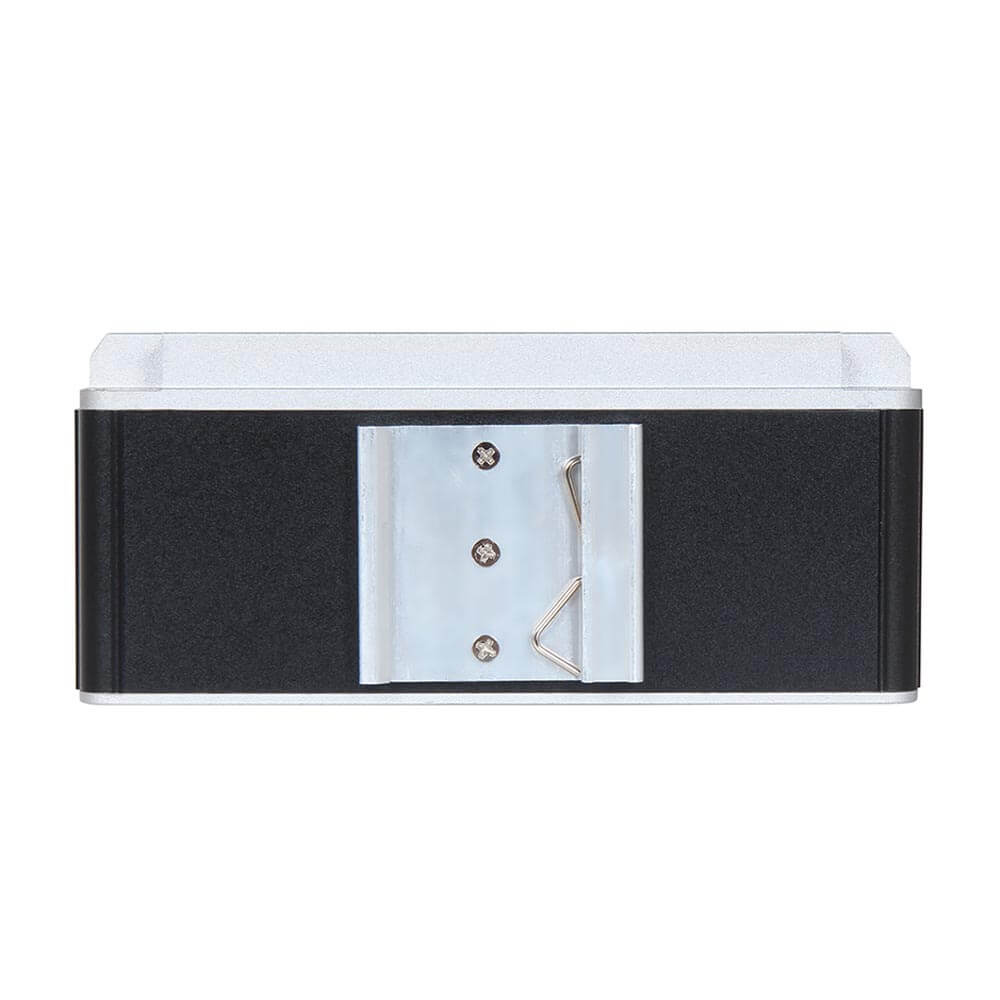

- Support Wall mount and DIN Rail mount

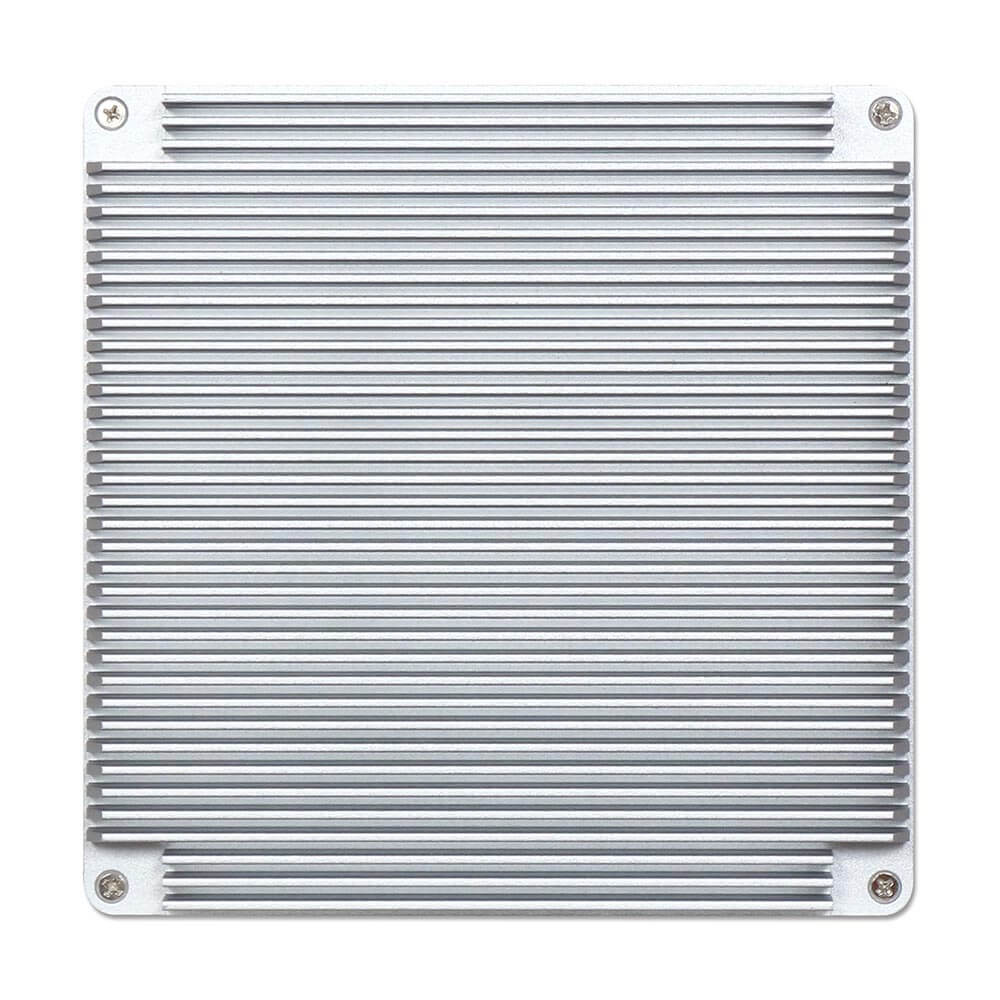

- Wide Operating Temperature support (-20~60°C) with Fan-less design
- DC 12V power input
Description
The Embedded Fan-less PC WEBS-21I0 takes advantage of Intel® Atom® x6000E series processor technologies, especially its vastly superior Dual/Quad-Core™ processing power and capability. The low power, cost-effective processor with high performance is of great use to build up a compact system,WEBS-21I0, which supports wide operating temperature from -20°C to 60°C for fan-less applications in harsh environment, such as Industrial Automation, Medical, Networking, Panel PC, Kiosk and Digital Signage applications.
Specification
| System | |
|---|---|
|
M/B |
NANO-6063
|
|
Form Factor |
NANO-ITX
|
| System | |
|---|---|
|
CPU |
Intel Atom® Dual/Quad-core x6000E family SoC (up to 12W)
|
|
BIOS |
AMI UEFI BIOS
|
|
Memory |
DDR4 3200 MT/s Non-ECC SO-DIMM up to 32GB
|
|
Graphic Controller |
Intel® Gen 11 Graphics – Supports Real-time performance with Intel® Time Coordinated Computing (TCC) and Time Sensitive Networking (TSN)
|
|
Storage |
1x SATA III port 1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS) 1x Micro-SD socket |

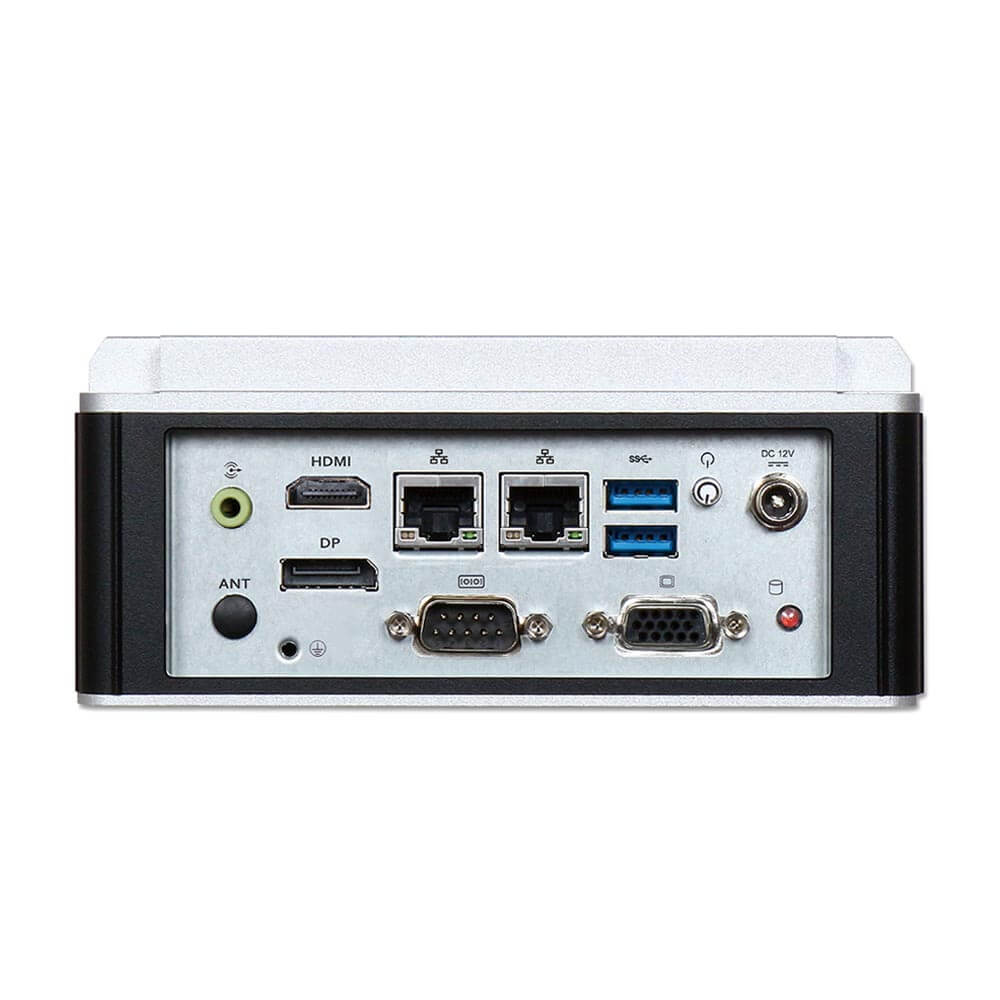

| External I/O | |
|---|---|
|
Serial |
1x RS-232/422/485 on board connector (selected by BIOS)
|
|
USB |
2x USB 3.2 Gen 2 ports (10Gbps)
|
|
Display |
1x VGA, 1x DP,1x HDMI
|
|
Ethernet |
Intel® I210 GbE controller and MaxLinear GPY215 GbE PHY Dual RJ45 connectors on rear I/O with two LED indicators |
|
Audio |
Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in
|
|
Expansion |
1x M.2 Type E socket 1x full size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS) 2x USB 3.2 Gen 2 ports on board with header (10Gbps) |
| PWR | |
|---|---|
|
System |
DC 12V
|
| Environment | |
|---|---|
|
OP Temp. |
-20°C~50°C
|
|
Storage Temp. |
-40°C~85°C
|
|
Humidity |
40°C, 95%RH, non-condensing
|
|
Vibration |
5Grms/10~500Hz, IEC 60068-2-6
|
|
Shock |
50G, 11msec, IEC 60068-2-27
|
| Mechanical | |
|---|---|
|
Dimension(WxDxH) |
150 x 150 x 66mm
|
|
Weight |
1.4 Kg |
