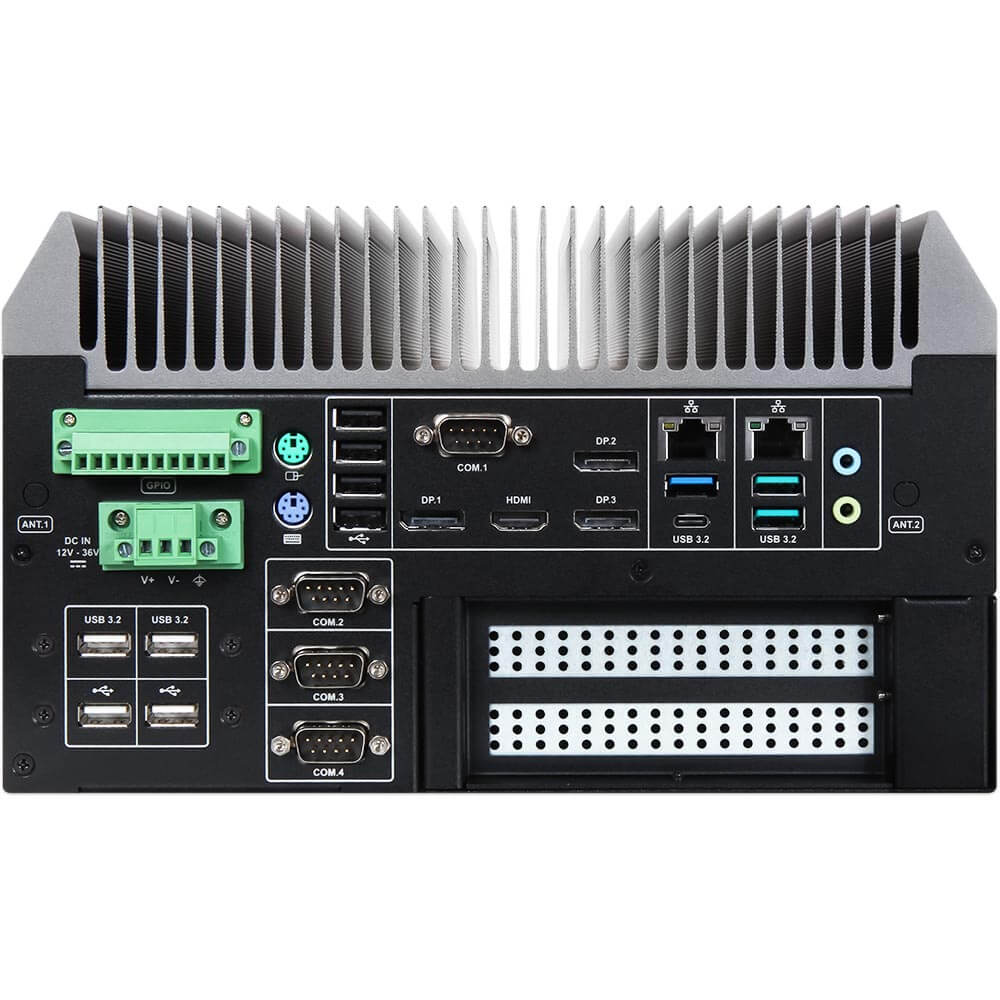

WEBS-45J3_IO

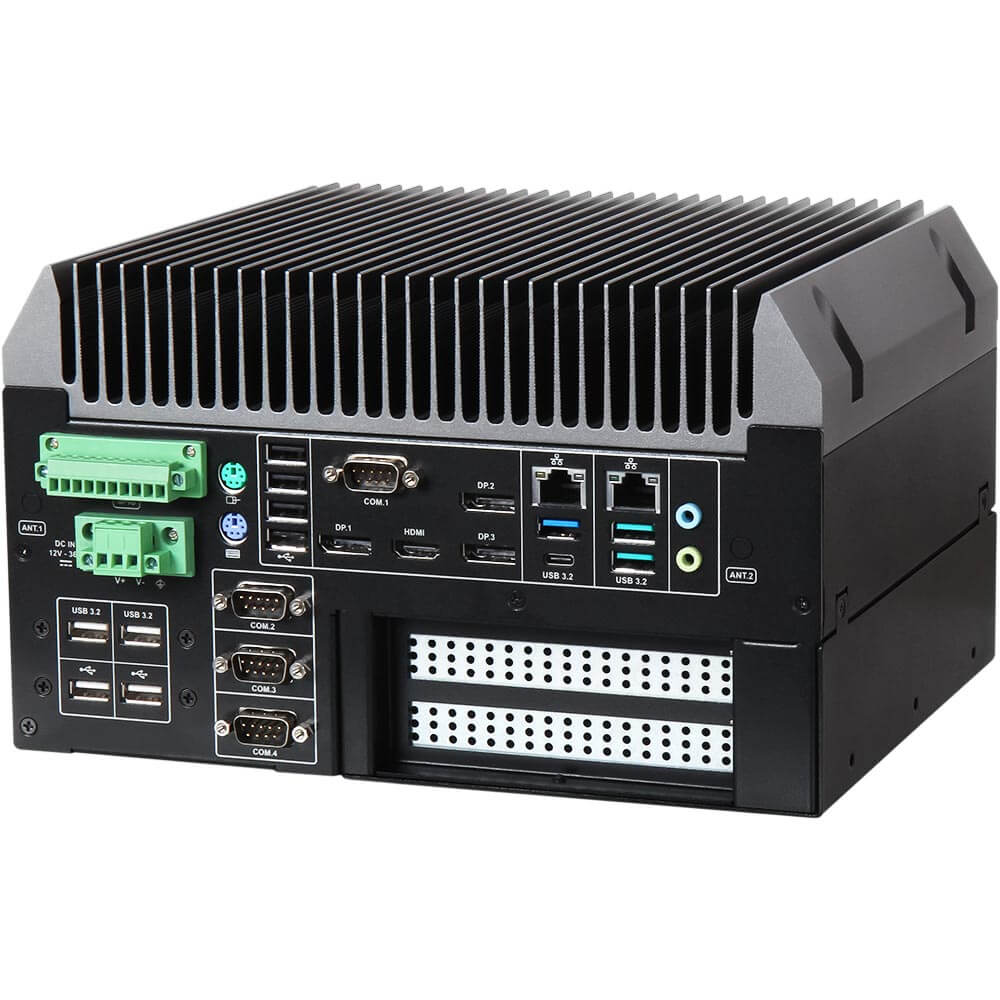

WEBS-45J3_IO_side

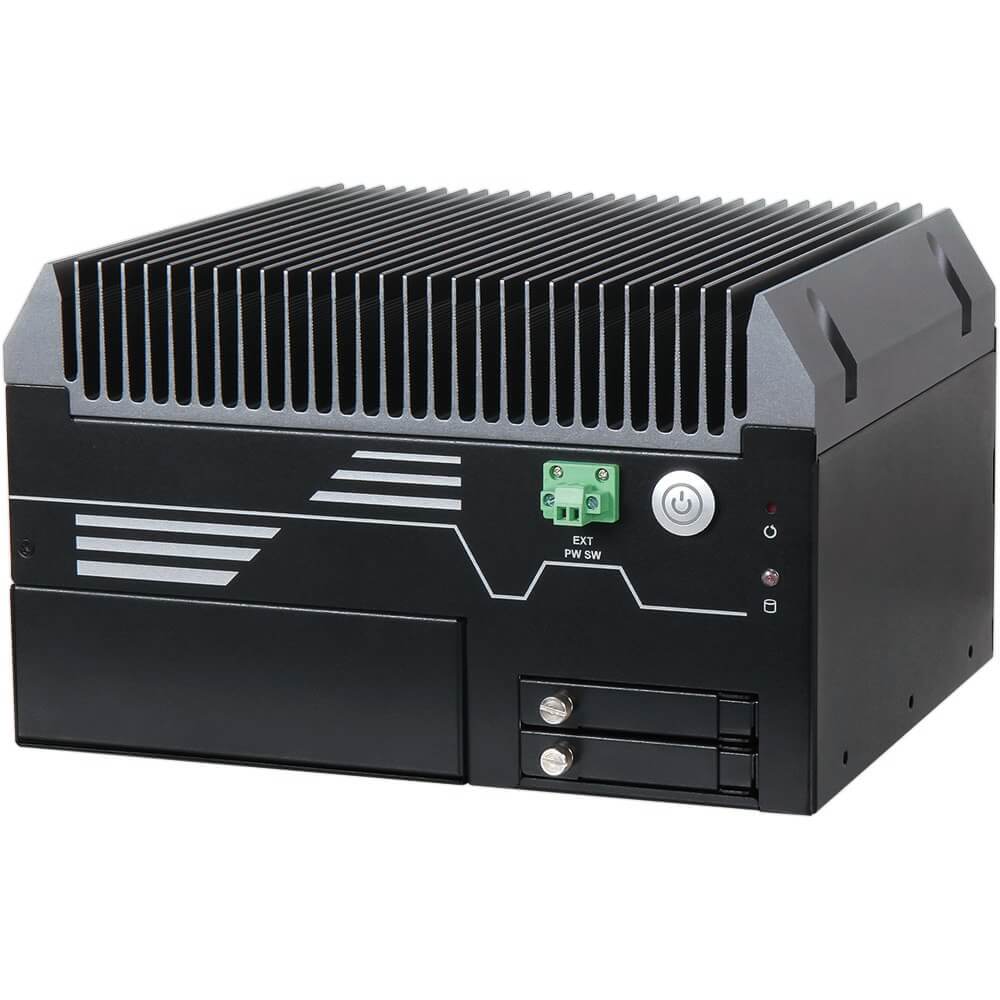

WEBS-45J3_front_Side

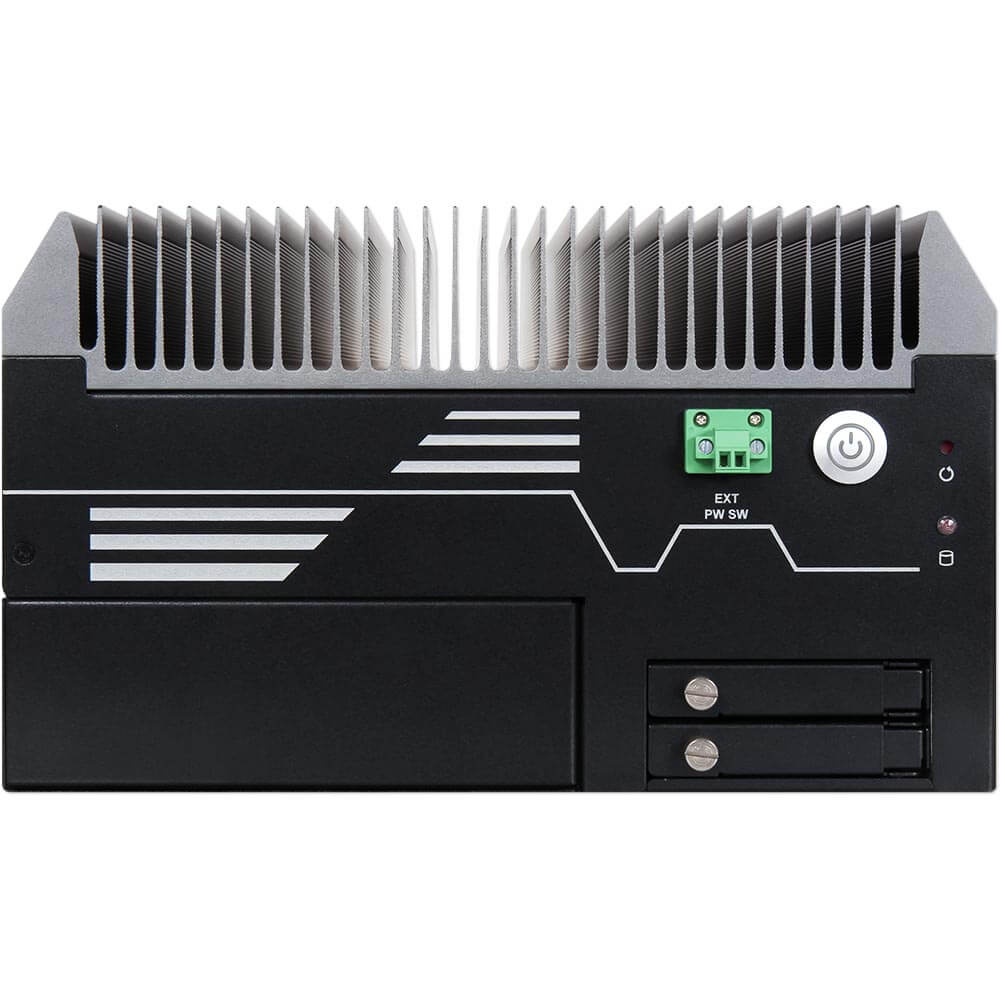

WEBS-45J3_Front

WEBS-45J3

Embedded Rugged Fan-less PC with 12th/13th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board, Dual PCI Express slots

Features :

Description

Portwell’s Fanless Box PC WEBS-45J3 builds on Intel® desktop Q670E chipset and takes advantages of 12th/13th Generation Intel® Core™ i3/i5/i7/i9 desktop processor technologies that can support dual DDR5 memory and 2-SATA slots for storage. Support two Gigabit Ethernet ports, 2xPCIe Expansion slot option, One M.2 E Key, One M.2 M Key. The WEBS-45J3 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.

Specification

System
M/B
WADE-8213
CPU
12th/13th Gen Intel® Core™ Processors CPU in LGA1700 package (35W TDP)
BIOS
AMI UEFI BIOS
Memory
Up to 64GB DDR5 4800 on two SO-DIMM sockets
Storage
2x SATA Ports
Watchdog Timer
Programmable by embedded controller
TPM
TPM 2.0
H/W Status Monitor
System monitor (Voltage, Temperature)
Expansion
– 2x PCIe x16 (Gen 3) slot (PCIe x8 Signal)
– 1x M.2 E Key 2230 with PCIe x1, CNVI for Wireless
– 1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD
External I/O
Serial Port
4x COM ports ( 1 x RS- 232/422/485)
Display
– 3x DP Resolution up to 8K – 1x HDMI
USB
– 3x USB 3.2 Gen 2 (2x Type A+ 1x Type C) – 3x USB 3.2 Gen 1 – 6x USB 2.0
Audio
Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller
Ethernet
– Intel® I210AT(1GbE) + Intel® I225LM(2.5GbE)
– 2xRJ45
GPIO
1x Programmable 8-bit Digital I/O
Other
– 2x Antenna hole for Wi-Fi module
– 1x EXT Power Switch
Power Supply Unit
Power Input
DC 12V ~ 36V with 3-pin Terminal Block Connector
Environment
Operation Temperature
-20°C ~ 60°C
Storage Temperature
-40°C ~ 80°C
Relative Humidity
40°C, 95%RH non-condensing
Operation Vibration
1Grms/10-500Hz, IEC 60068-2-6
Operation Shock
50G, 11 msec, IEC 60068-2-27
Mechanical
Dimension
253(W) x 201(D) x 150(H) mm
Weight
7 Kg
Mounting
Wall mounting
