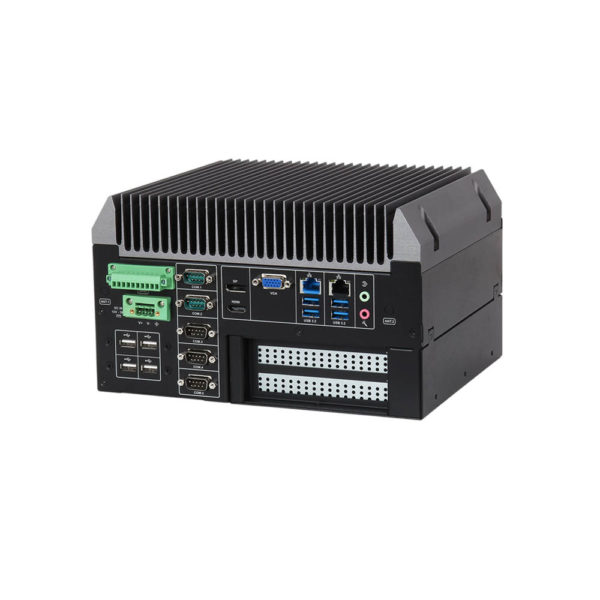

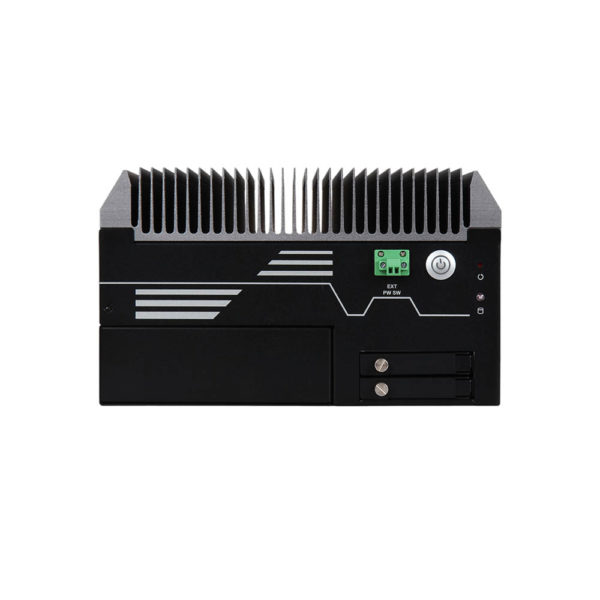

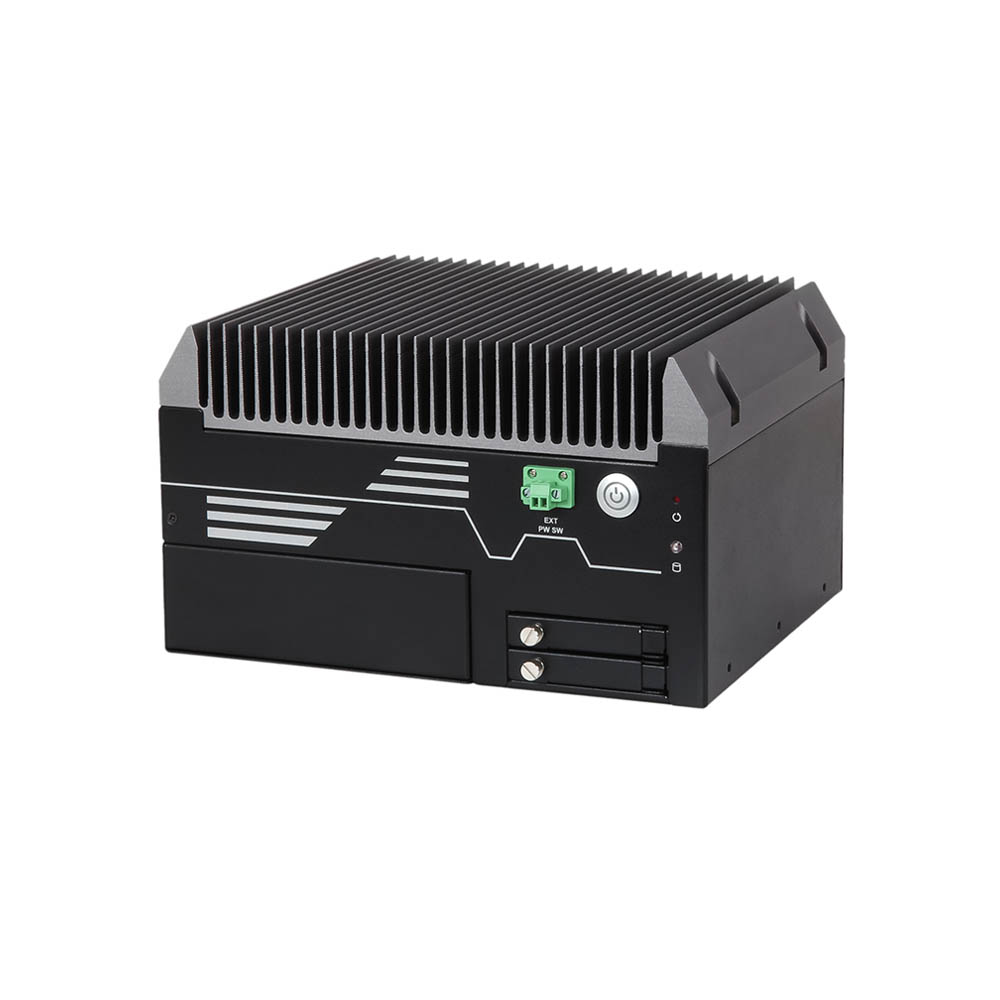

WEBS-45H3
Embedded Rugged Fan-less PC with 10th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board, Dual PCI Express slots
Features :
- Support 10th Generation Intel® Core™ i3/i5/i7/i9 processors
- Different add-on card expansion options
- Support 64GB DDR4 2400/2666 NonECC SDRAM
- Support triple displays including HDMI, DP and VGA
- Support One M.2 E Key, One M.2 M Key and one M.2 B Key socket
- Support 5 x COM ports( 2 x RS232/422/485)
- 2x Antenna hole for WiFi or 4G/GPS module to use
- Onboard TPM 2.0
Description
Portwell’s Fanless Box PC WEBS-45H3 builds on Intel® desktop Q470E chipset and takes advantages of 10th Generation Intel® Core™ i3/i5/i7/i9 desktop processor technologies that can support dual DDR4 memory and 2x 2.5” SSD slots for storage. Support two Gigabit Ethernet ports, 2xPCIe Expansion slot option, One M.2 E Key, One M.2 M Key and one M.2 B Key socket. The WEBS-45H3 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.
Specification
| System | |
|---|---|
|
M/B |
WADE-8212
|
|
CPU |
10th Gen Intel® Core™ Processors CPU in LGA1200 package (35W TDP)
|
|
BIOS |
AMI UEFI BIOS
|
|
Memory |
Up to 64GB DDR4 2400/2666 Non-ECC SDRAM on two SO-DIMM sockets
|
|
Storage |
2x 2.5” SSD slots
|
|
Watchdog Timer |
Programmable by embedded controller
|
|
TPM |
TPM 2.0
|
|
H/W Status Monitor |
System monitor (Voltage, Temperature)
|
|
Expansion |
– 2x PCIe Expansion slot option: – (2x PCIe x16 slot (PCIe x8 Signal) or 2x PCIe x4 slot (PCIe x1 Signal)) – 1x M.2 E Key 2230 with PCIe x1, CNVI and USB2.0 for Wireless – 1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD – 1x M.2 B Key 3042/3052 with USB 3.0 Signal – 1x SIM Card socket |

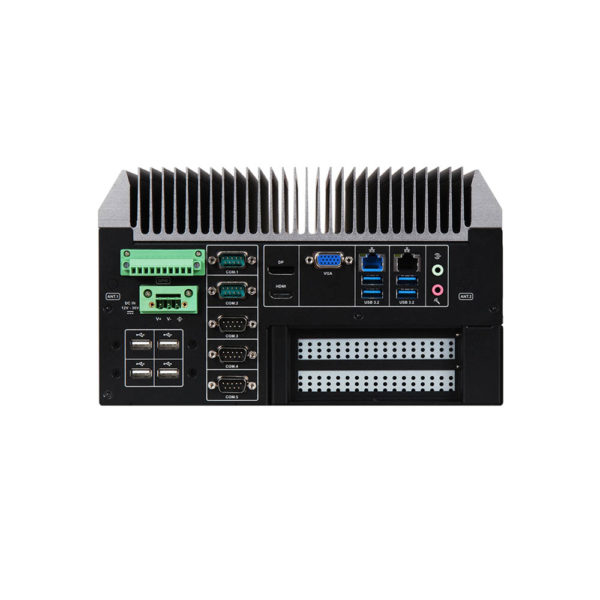

| External I/O | |
|---|---|
|
Serial Port |
5x COM ports( 2x RS-232/422/485)
|
|
Display |
– 1x HDMI 2.0a , resolution up to 4096×2160 @60Hz – 1x DisplayPort 1.2 , resolution up to 4096×2160 @60Hz – 1x VGA , resolution up to 1920×1200 @60Hz |
|
USB |
– 4x USB 3.2 Gen 1 – 4x USB 2.0 |
|
Audio |
Audio Jack with Line-out / Mic-in with Realtek ALC887 Audio controller
|
|
Ethernet |
Intel® I219LM and Intel® I225LM Ethernet controller
|
|
GPIO |
1x Programmable 8-bit Digital I/O |
|
Other |
– 2x Antenna hole for WiFi or 4G/GPS module – 1x EXT Power Switch |
| Power Supply Unit | |
|---|---|
|
Power Input |
DC 12V ~ 36V with 3-pin Terminal Block Connector
|
| Environment | |
|---|---|
|
Operation Temperature |
-20°C ~ 60°C
|
|
Storage Temperature |
-40°C ~ 80°C |
|
Relative Humidity |
40°C, 95%RH non-condensing
|
|
Operation Vibration |
1Grms/10-500Hz, IEC 60068-2-6
|
|
Operation Shock |
50G, 11 msec, IEC 60068-2-27 |
| Mechanical | |
|---|---|
|
Dimension |
253(W) x 201(D) x 150(H) mm |
|
Weight |
8 Kg |
|
Mounting |
Wall mounting |
