PBC-02013
Industrial Fanless Embedded Computer with Intel® SoC Celeron, i3/i5/i7 4th, 5th, 6th, 7th & 8th Gen processor, Dual LAN, Mini PCIe for Wi-Fi
Features :
- Support Celeron, Core i3/i5/i7-4th, 5t, 6th, 7th and 8th gen SoC Processor
- Support up to 64GB RAM
- Support Dual Display VGA & HDMI, Dual LAN, 6-USB
- Support One Mini-PCIe for Wi-fi/4G Module, one M.2 2260/2280 NVMe SSD
- Support 6-COM ports (COM 5, 6 - supports RS232/485 switching)
- 2x Antenna hole for WiFi or 4G/GPS module to use
- Audio Line-out/ Mic-In
Description
The Industrial Fanless Embedded Box-PC PBC-02013 builds on SoC and takes advantages of 4th/5th….8th Generation Intel® Core™ i3/i5/i7 processors. It is rich of I/O having Six USB and Serial Ports, also support one/Two Memory slots, and support 2.5” SSD slots for storage. Support two Gigabit Ethernet ports , One M.2 2260/2280, and one mSATA port up to 6Gbps. The PBC-02013 is an ideal platform with rich I/O and high resolution for Transportation, Toll gateways, digital signage, and factory automation applications.
Specification
| System | |
|---|---|
|
CPU |
Integrated Intel® Soc Celeron, Core i3/i5/i7 -4th, 5th, 6th, 7th & 8th Gen processor |
|
Chipset |
SoC |
|
Memory |
Maximum support 8GB/16GB/32GB
|
|
Storage |
1-2.5-inch HDD/SSD
1-mSATA up to 6Gbps |
|
Watchdog Timer |
Support hardware reset function (256 levels, 0~255 seconds) |
|
Graphics |
Integrated Intel® Graphics (based on processor)
|
|
Expansion |
1- Mini-PCIe support Wi-Fi / 4G module 1- M.2 support 2260/2280 NVME PCIe standard SSD [ordering Info] |
| External I/O | |
|---|---|
|
Serial Port |

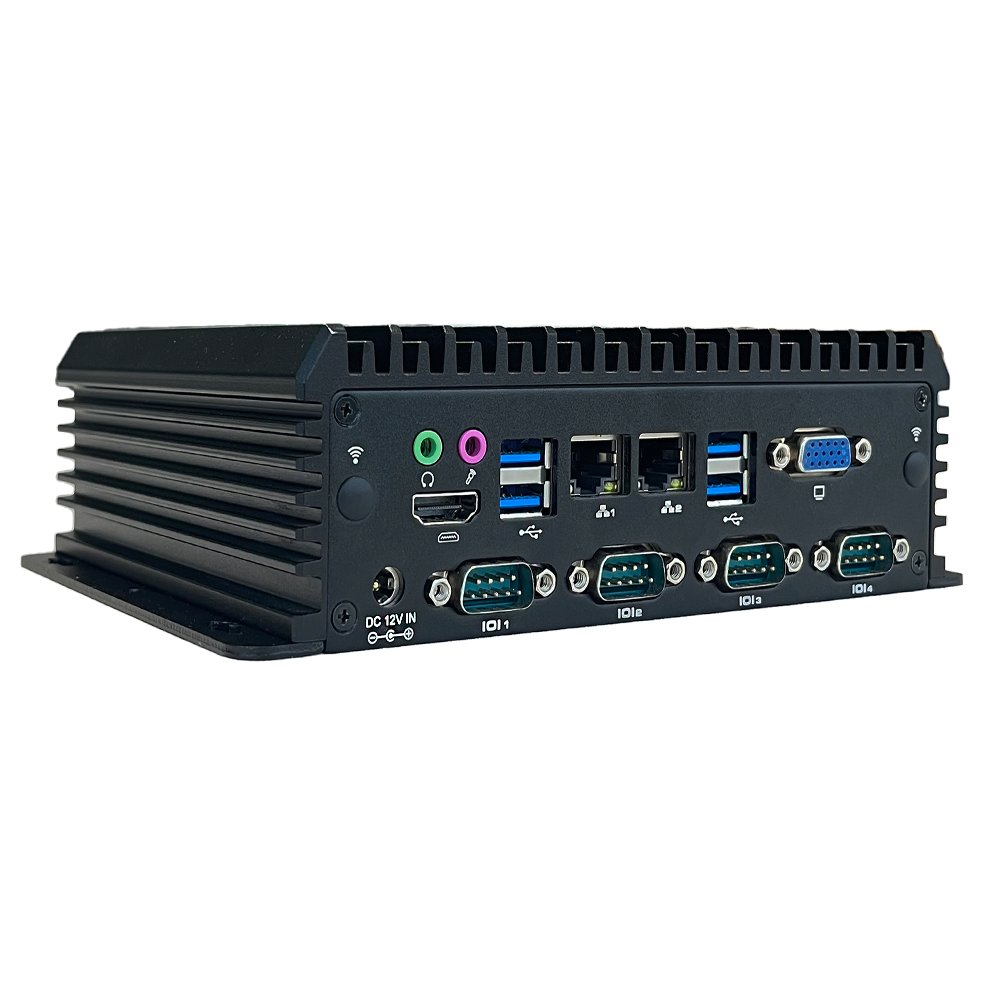

Rear: 4-RS232 [COM1/2 supports 9pin 5V/12V live]

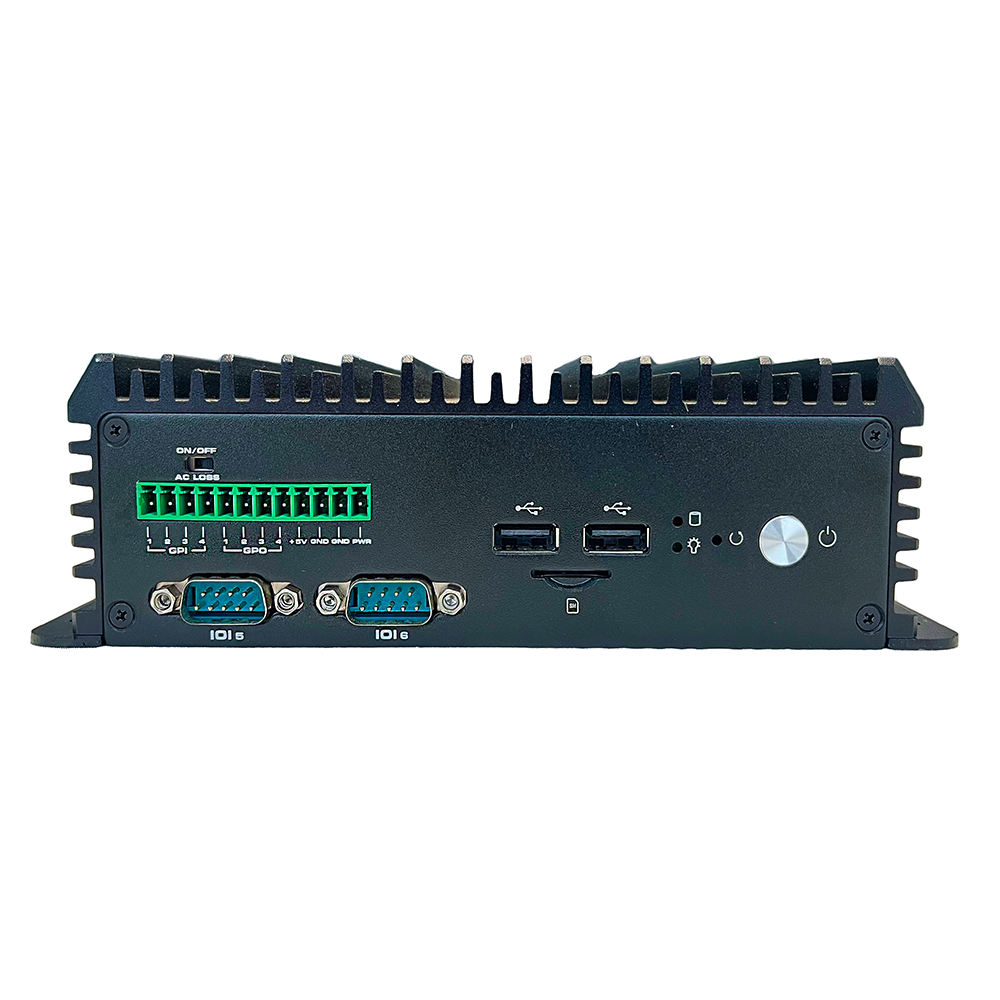

Front: 2-RS232/RS485 switching |
|
Display |
1- HDMI 1.4
1- VGA |
|
USB |
Rear: 4- USB (2-USB 2.0+2-USB 3.0 / 4-USB 3.0)
Front: 2- USB 2.0
1-built-in USB dongle [ordering Info] |
|
Audio |
Line-out/ Mic-In
|
|
Ethernet |
2- RJ45 Intel® WGI211AT Ethernet controller |
|
GPIO |
1- 12pin, 4-In/4-out, switch 5V |
|
Other |
2- Antenna hole for WiFi or 4G/GPS module 1- AC-Loss Power On toggle switch 1- SIM Slot |
| Power Supply Unit | |
|---|---|
|
Power Input |
DC-12V
|
| Environment | |
|---|---|
|
Operation Temperature |
-10°C ~ 60°C Compliance |
|
Storage Temperature |
20°C ~ 70°C Compliance |
|
Relative Humidity |
5% ~ 95% Relative humidity, no condensation Compliance
|
| Mechanical | |
|---|---|
|
Dimension (L x W x H) |
174mmx148mmx57mm *[may change based on processor TDP] |
|
Weight |
1.35 ~ 2 KG |
|
Structure |
All aluminum alloy fan less |
