NANO-6065
NANO-6065

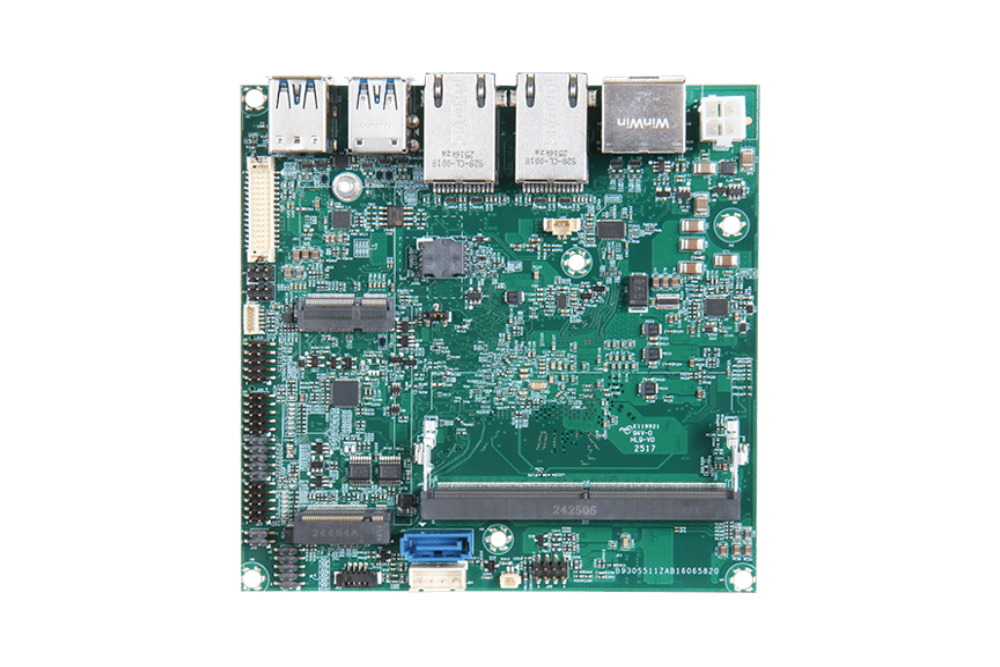

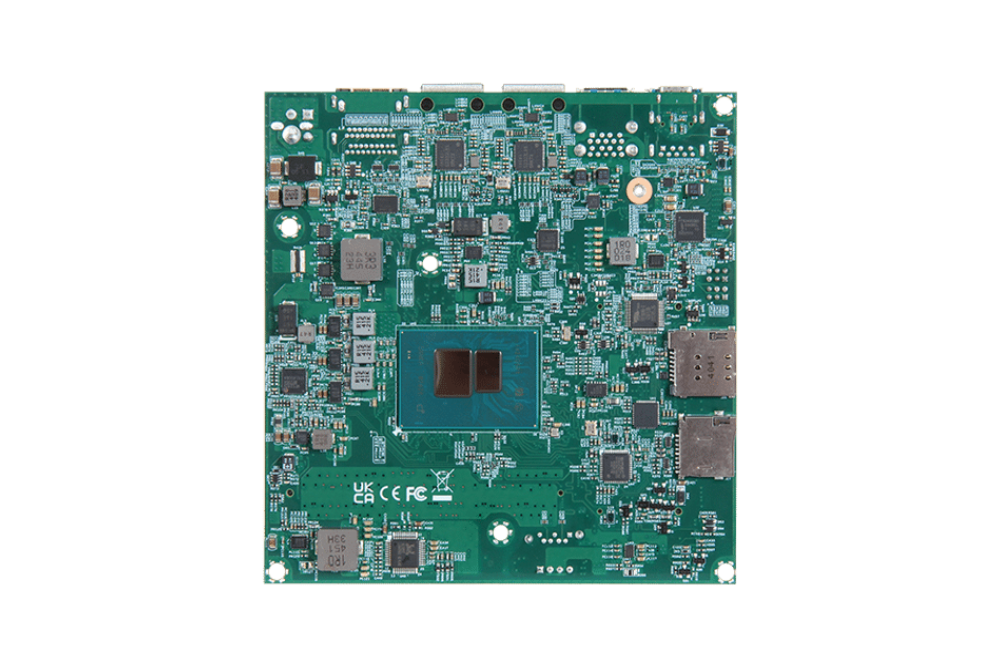

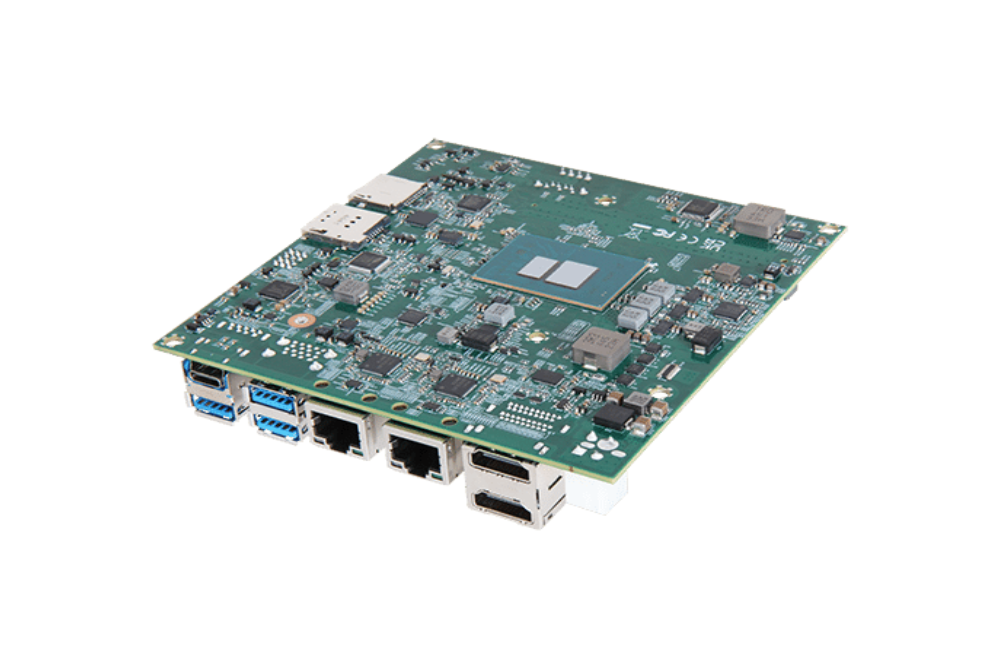

Supports Twin/Amston Lake platform, up to 16GB DDR5, triple display via HDMI®/DP/LVDS, dual 2.5GbE, 4x USB 3.2 Gen2, M.2 E/B Key expansion, and onboard TPM 2.0 for enhanced security.
Features :
- Support Twin Lake / Amston Lake platform
- Up to 16GB DDR5 4800MT/s SO-DIMM
- Support multiple display via HDMI®, DP from Type-C, *LVDS
- High speed I/O with dual 2.5GbE and four USB 3.2 Gen 2
- Multiple expansions with M.2 E Key and B Key
- Support on board TPM 2.0
General
| Processor | Intel® Core i3 processor N355 Intel® processor N150 Intel Atom x7835RE |
| BIOS | AMI UEFI BIOS |
| Memory | 1x DDR5 4800MT/s SO-DIMM up to 16GB Support In-Band ECC |
| Storage Devices | 1x SATA III 1x Micro SD socket |
| Watchdog Timer | Programmable Watchdog Timer, time out period from 0.5 sec to 254.5 sec |
| Hardware Monitoring | System Monitor (Voltage, Fan speed, Temperature) |
| Expansion Interface | 1x M.2 E Key 2230 (USB/PCIe) 1x M.2 B Key 3052/2280 (USB/PCIe/SATA) |

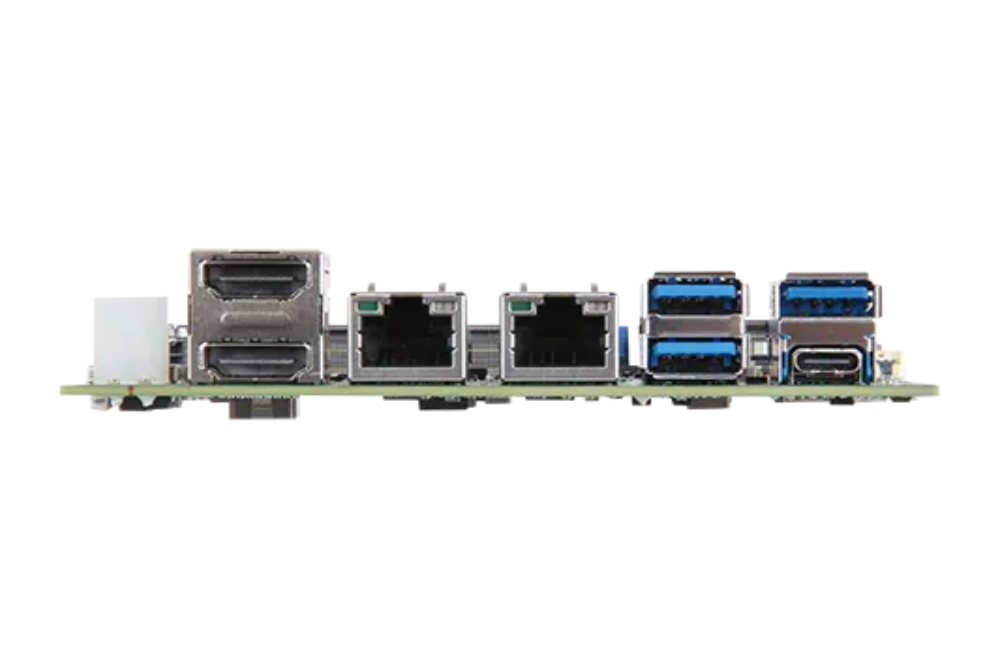

I/O Interface
| Audio | HDA controller integrated in Intel® SoC Realtek ALC897 HDA codec On board pin header (line-in, line-out, mic-in) |
| Ethernet | 1x Intel® 2.5GbE Controller 2x RJ45 connectors on rear I/O |
| Serial Port | 2x RS-232/422/485 on board pin header (selectable via BIOS) |
| USB | 3x USB 3.2 Gen2 Type A on rear I/O 1x USB 3.2 Gen2 Type C on rear I/O (Supports DP 1.4a output / USB device mode) |
| Other | TPM 2.0 on board 8x GPIO |
Display
| Graphic Controller | Intel® Graphics with up to 32 EUs |
| Display Interface | HDMI®: 2x HDMI® port on rear I/O (HDMI® 2.0b, 4096×2160 @ 60Hz) DP: Type C port on rear I/O (DP 1.4, 4096×2304 @ 60Hz) LVDS: 1x LVDS on board connector (*Optional, available upon request with MOQ requirement) |
Mechanical & Environment
| Dimension | 120mm(L) x 120mm(W), 4.72″(L) x 4.72″(W) |
| Power Supply | DC 12~24V input |
| Environment | Operating temperature: 0°C~60°C (SKU:N355 & N150) Operating temperature: -40°C~85°C (SKU:X7835RE) Storage Temperature: -40°C~85°C Operating Humidity: 5~95%, non-condensing |
| MTBF | TBD |
Ordering Guide
| Part Number | Description |
|---|---|
| AB1-3T71 | (R)NANO-6065-N355. Nano-ITX ESB. Intel Twin Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C |
| AB1-3T83 | (R)NANO-6065-N150. Nano-ITX ESB. Intel Twin Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C |
| AB1-3T84 | (R)NANO-6065-X7835RE. Nano-ITX ESB. Intel Amston Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C |
