PJAI-1100
PJAI-1100

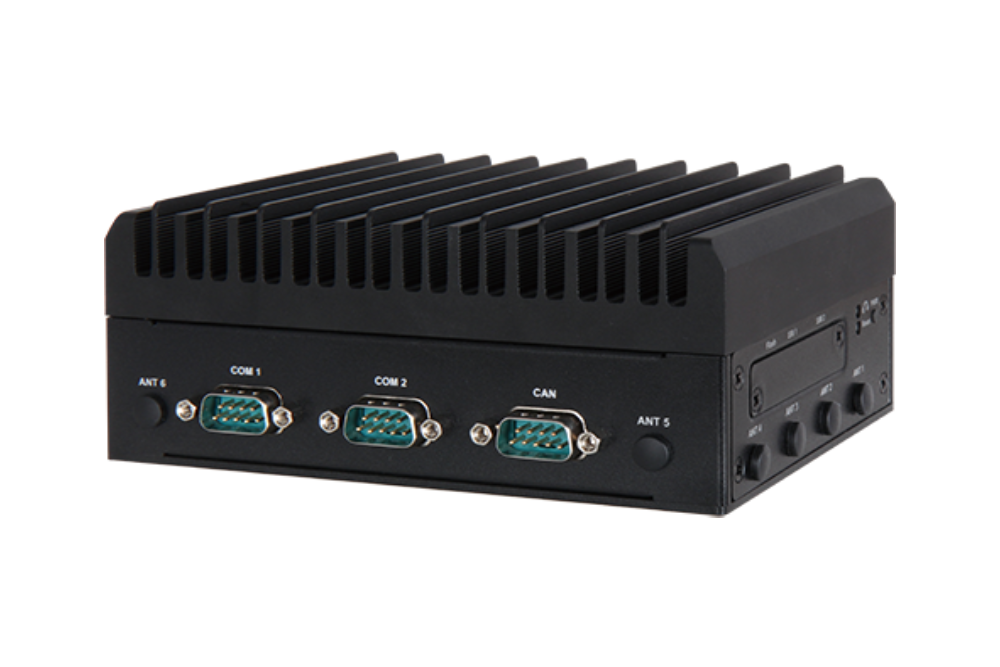

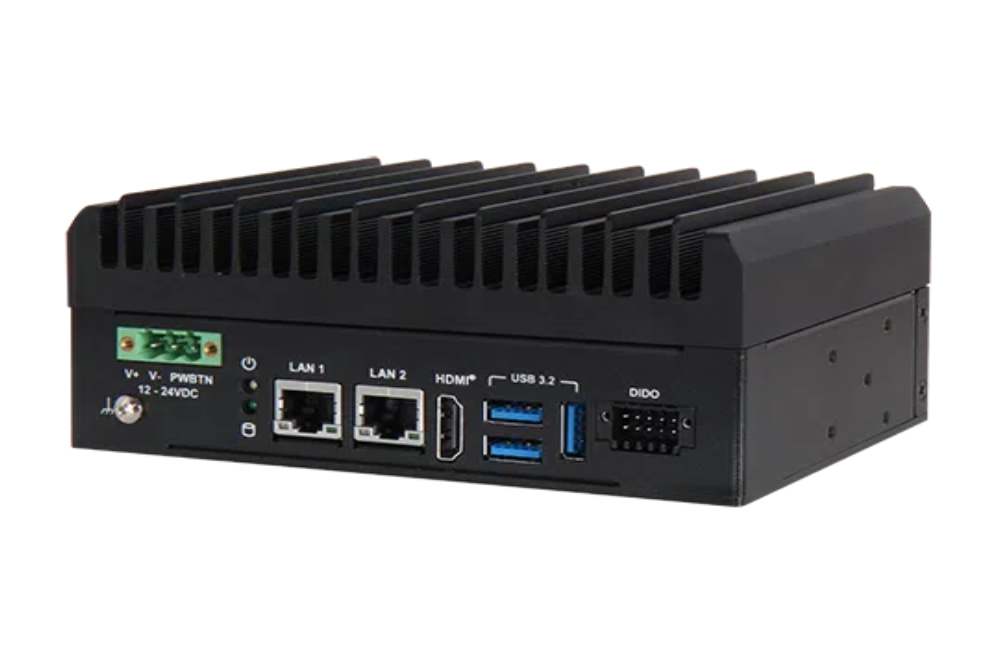

Fanless Compact System with NVIDIA® Jetson Orin PJAI-1100-OX NX™ for Edge AI Applications
Features :
- Fanless System with NVIDIA® Jetson Orin module up to 100 TOPS
- 4GB/8GB/16GB 64-bit LPDDR5 (By SOM
- Supports 1x M.2 2230 E-Key, 1x M.2 3042/3052 B-Key, 1x M.2 2280 M-Key NVMe (PCIe x4) and 2x Nano SIM slots

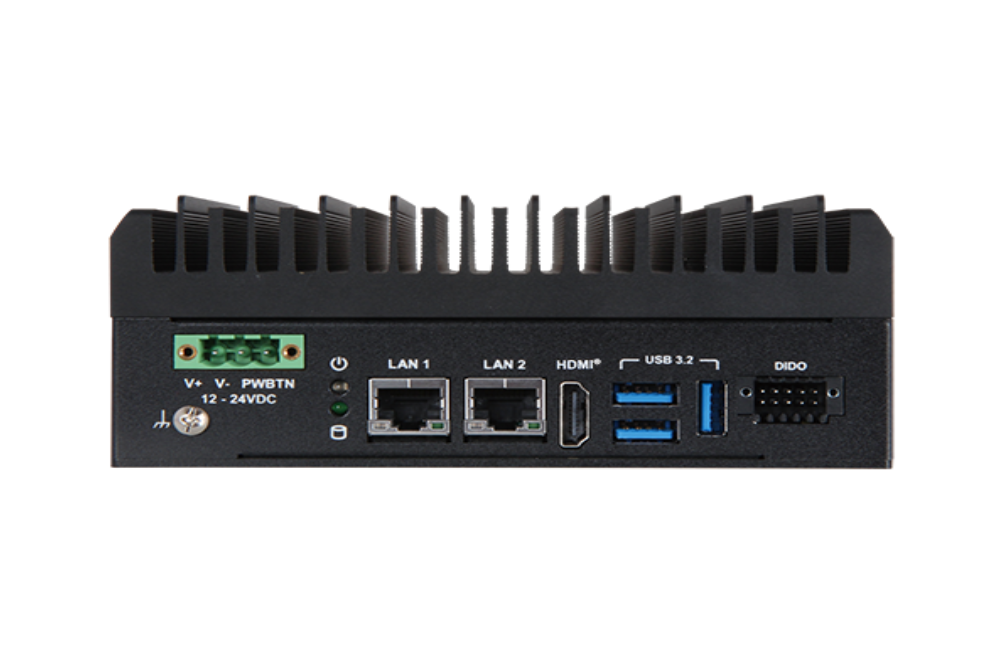

- Supports 2x RJ45 GbE and 3x USB 3.2 Type A ports

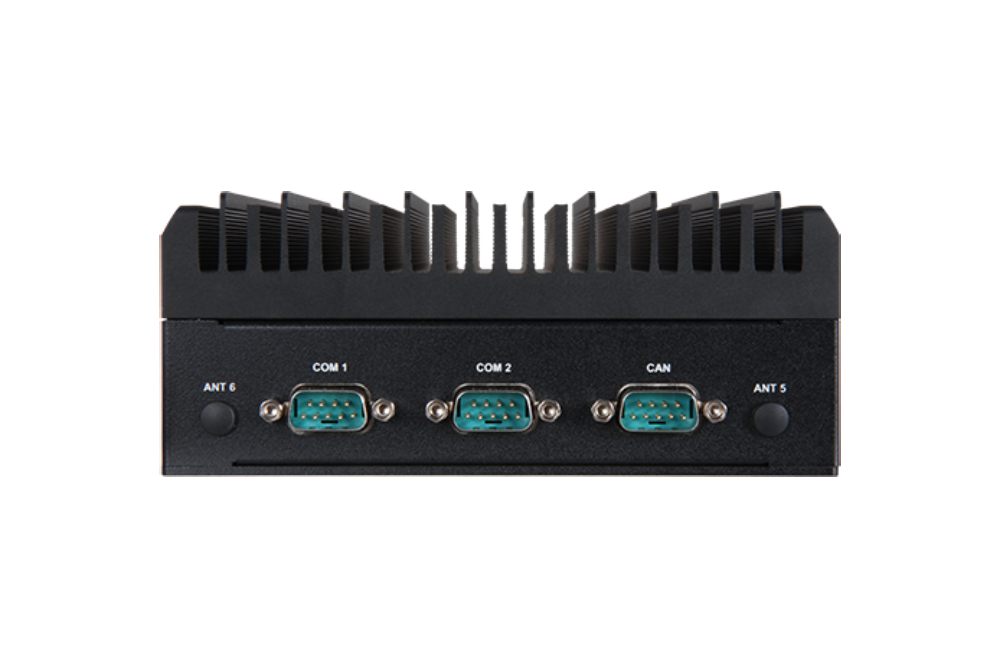

- 2x DB9 COM ports and 1x DB9 CANbus
Description
| Model | PJAI-1100 | ||||
|---|---|---|---|---|---|
| Sys Form Factor | Proprietary | ||||
General
| Processor | NVIDIA® Jetson Orin™ Nano 4GB | NVIDIA® Jetson Orin™ Nano 8GB | NVIDIA® Jetson Orin™ NX 8GB | NVIDIA® Jetson Orin™ NX 16GB | ||
|---|---|---|---|---|---|---|
| Memory | Support up to 16GB LPDDR5 on board | |||||
| Storage | 1 x M.2 Key-M NVMe PCIe x4 2280 | |||||
System I/O
| Ethernet | 2 x 1 GbE LAN | |||||
|---|---|---|---|---|---|---|
| Serial Port | 2 x COM Ports Support RS-232/422/485 | |||||
| 1 x CANbus FD | ||||||
| USB | 3 x USB 3.2 Gen2 x1 (10Gbps) Type A | |||||
| 1 x USB 3.2 Gen2 x1 (10Gbps) Type C | ||||||
| GPIO | 1 x 8-bit Digital I/Os | |||||
| Display | 1 x HDMI® 2.0b | |||||
| Other | Power Button, Reset Button, Recovery Button | |||||
| LED | Power, Storage | |||||
| Antenna | 6 x SMA Antenna holes for LTE / 5G / Wi-Fi | |||||
| SIM Slots | 2 x Nano-SIM | |||||
Expansion I/O
| M.2 | 1 x B Key w/ 3042/3052 | |||||
|---|---|---|---|---|---|---|
| 1 x E Key w/ 2230 | ||||||
ME/Environment
| Dimension (WxDxH) | 152 x 109 x 63 mm (5.98″ x 4.29″ x 2.48″ ) | |||||
|---|---|---|---|---|---|---|
| Weight | 1.31 kg | |||||
| Power Supply | Terminal Block 12~24V | |||||
| Mounting | Wall Mount, DIN Rail Mount | |||||
| Vibration | 1G 5~500Hz with Wall mount (IEC/EN 60068-2-6) | |||||
| 0.5G 5~500Hz with Din rail (IEC/EN 60068-2-6) | ||||||
| Shock | 50G 11m sec with Wall mount (IEC/EN 60068-2-27) | |||||
| Operating Temperature | -20 ~ 60 °C (-4.0 ~ 140.0 °F) | |||||
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) | |||||
| Cooling | Fanless | |||||
| BSP | 6.2 | |||||
| Relative Humidity | 5% to 95%, non-condensing | |||||
| Certification | CE/FCC/UKCA Class A | |||||
| OS | Linux™ | |||||
Ordering Guide
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|
| System | PJAI-1100-ON4G | AS5-3748 | Available | (R).ATO.PJAI-1100-ON4G.Embedded System. NVIDIA Jetson Orin Nano(4GB) (260pin SO-DIMM),12-24V |
| PJAI-1100-ON8G | AS5-3747 | Available | (R).ATO.PJAI-1100-ON8G.Embedded System. NVIDIA Jetson Orin Nano(8GB) (260pin SO-DIMM),12-24V | |
| PJAI-1100-OX8G | AS5-3746 | Available | (R).ATO.PJAI-1100-OX8G.Embedded System. NVIDIA Jetson Orin NX(8GB) (260pin SO-DIMM),12-24V | |
| PJAI-1100-OX16G | AS5-3745 | Available | (R).ATO.PJAI-1100-OX16G.Embedded System. NVIDIA Jetson Orin NX(16GB) (260pin SO-DIMM),12-24V |
