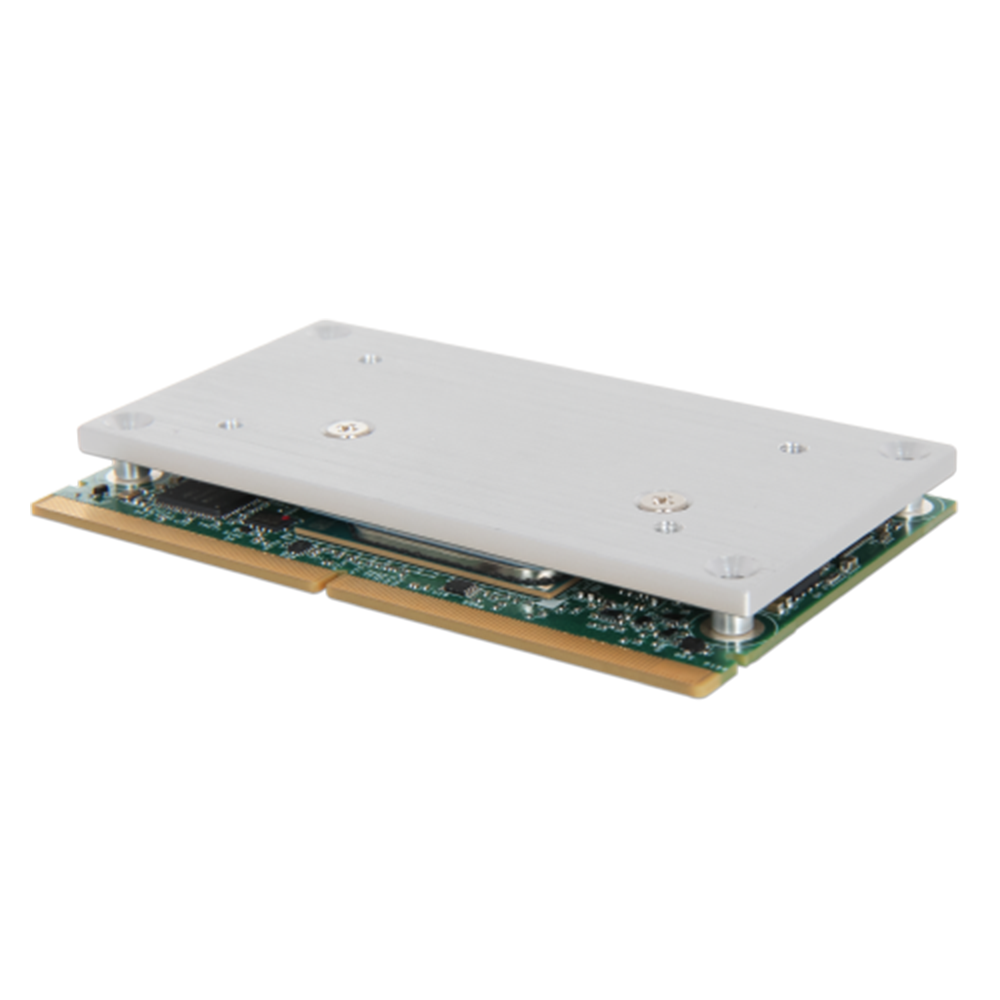

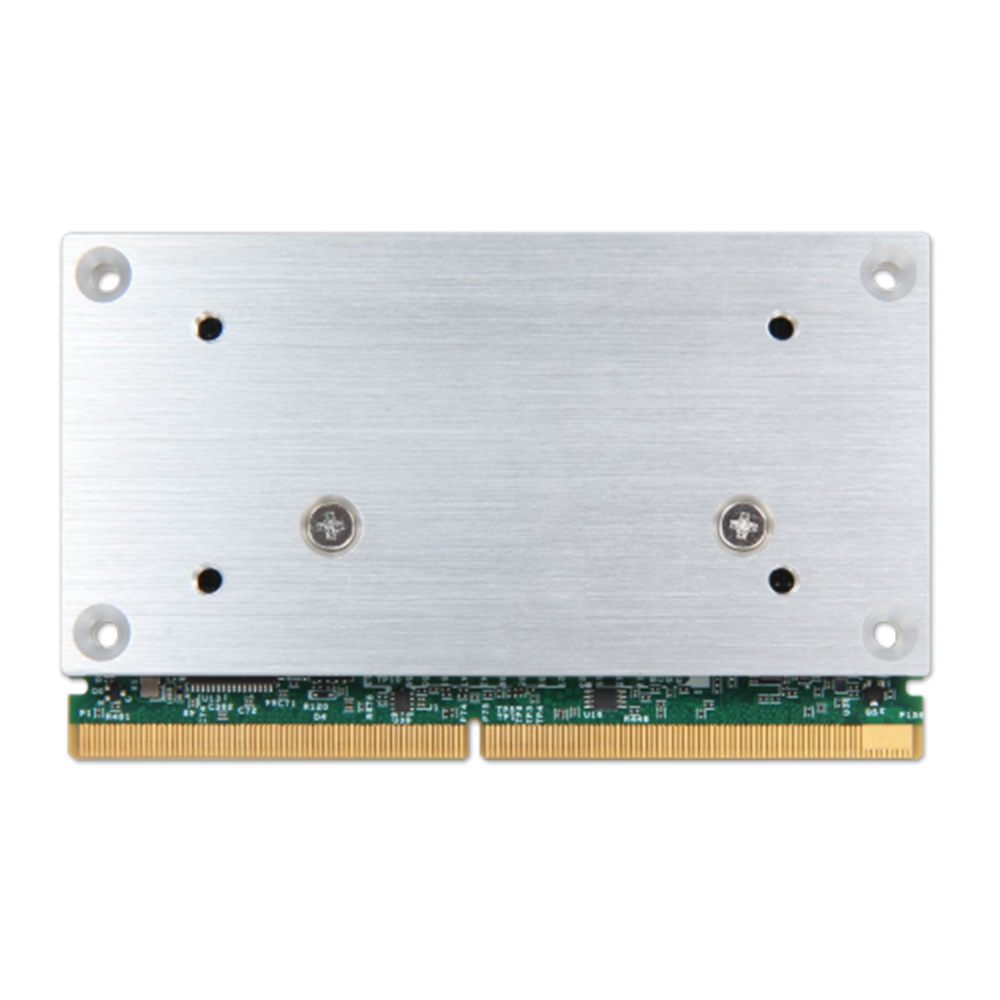

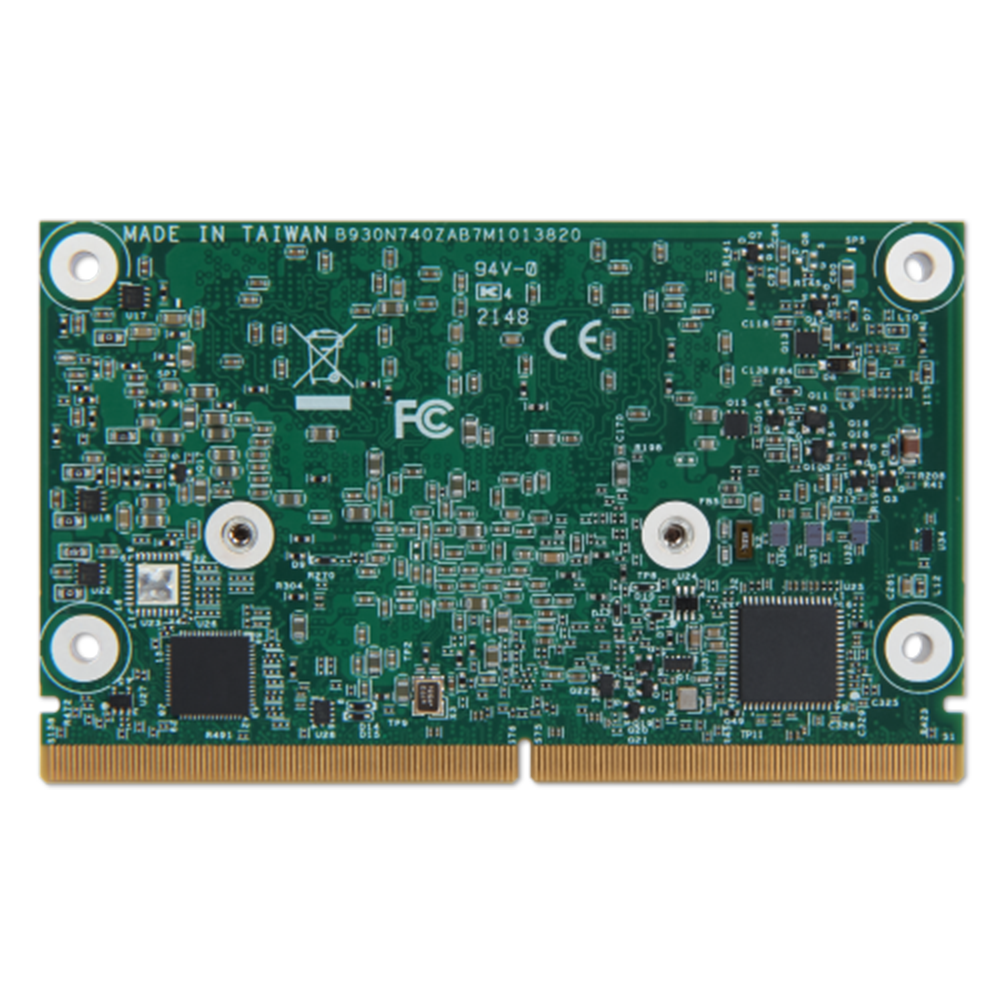

PSMC-M1013
SMARC Module 2.0 with Intel Apollo Lake Atom/Pentium/Celeron series, LVDS, HDMI, DP graphic output, 8-USB Wide Operating Temperature
Features :
- Intel® Atom™ / Pentium® / Celeron® processors
- On Board LPDDR4 SDRAM up to 8GB
- Multiple display support (18/24-bit LVDS, HDMI, DP++)
- Dual GbE, Four PCI Express lanes, two USB 3.0 and up to six USB 2.0
- One SATA 3.0, on Board eMMC 5.0, on Board TPM (Opt.)
- Wide Operating Temperature (optional)
Description
The Portwell’s PSMC-M840 SMARC 2.0 module with the Intel Apollo lake Atom processor E3900 series, Pentium N4200 and Celeron N3350, which ensures strong graphic performance and good memory bandwidth. Additionally PSMC-M1013 supports wide Operating Temperature -40°C to +85°C. it is built with qualified Industrial grade components, which makes PSMC-M1013 perfect building bock for application in automation, security, transportation and variety of harsh environments
| Specification | |
|---|---|
|
CPU |
Intel® Atom E3930, 2 cores, 1.3GHz/1.8 GHz, 6.5W TDP
Intel® Atom E3940, 4 cores, 1.6GHz/1.8 GHz, 9.5W TDP
Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
|
Memory |
Up to 8 GB LPDDR4 at 2133/2400 MTps
Dual/ quad channel, 64bit, non-ECC |
|
Storage |
eMMC 5.0 onboard flash up to 64 GB |
|
Display Output |
LVDS : 24-bit Dual Channel up to 1920×1200@60Hz (default)
eDP: 1.4 (option)
DisplayPort: 1.2 up to 4096×2160@60Hz (DP) (default)
HDMI 1.4b up to 3840×2160@30Hz (option) |
|
Camera |
DisplayPort 1.2 up to 4096×2160@60Hz (DP++) |
|
Ethernet |
Up to 2x Intel® i210AT (Commercial) / i210IT (Industrial) |
|
PCIe Express |
4- PCIe x1 or 1- PCIe x4 Gen2 |
|
USB |
4-USB2.0, 2- USB 3.0/2.0 |
|
SATA |
1- SATA 3.0 (6 Gbit/s) |
|
Other I/O Interfaces |
1- SDIO, 1- SATA 3.0, 4- I2C, 1-I2C/SMBus(Option), 1- LPC, 2- HSUART 2-UART, 1- HDA, 1- I2S, 12- GPIO
|
|
Video |
IntelR Gen 9 LP Graphics supporting DirectX 12 | OpenGL 4.3 OpenCL 2.0 | OpenGL ES 3.0 | HW accelerated video decoding | HEVC/H.264/MVC/MPEG2/VP9/VC1/WMV9/MJPEG and encoding | HEVC/H.264/MVC/VP8/MJPEG |
Contend protection using PAVP 2.0 and HDCP 1.4/2.2 |
|
Embedded BIOS |
AMI UEFI with Fast Boot support l Display Auto Detection l Flash Update l Password Lock l OEM Logo for startup screen |
|
Form Factor |
SMARC 2.0 |
|
Dimension |
SMARC module, 82 mm x 50 mm |
|
Operating Temperature |
Commercial: 0°C to +60°C
Industrial: -25°C to +85°C |
|
Humidity |
10-90% RH operating, non-condensing
5-95% RH storage (and operating with conformal coating) |
|
Power |
5V DC ±5% |
|
Power Management |
ACPI 5.0 compliant
|
|
Power Consumption |
6W~12W (CPU)
|
|
Operation System |
Windows 10 Enterprise, Windows 10 IoT, Linux |
