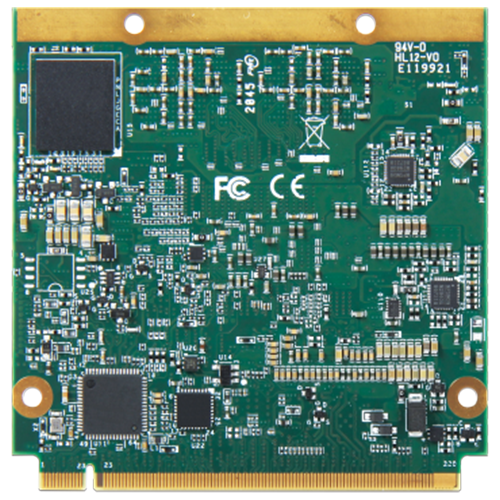

PQ7-M109
Qseven module by Qseven 2.1 based on Intel® Elkhart Lake family processor with on board LPDDR4 memory up to 2G/4G/8G 3200 MHz
Features :
- On Board LPDDR4 DRAM and up to 8GB
- 24-bit LVDS, HDMI/DP output
- 4x PCIe Gen 3
- Optional on board eMMC 5.1
- Wide operation temp -40ºC to 85ºC
Description
Portwell’s PQ7-M109 features the latest Intel Elkhart lake Atom /Celeron /Pentium processors doubling graphics performance and 1.5x overall CPU performance over the previous generation platform. The PQ7-M109 also supports a wide industrial temperature range from -40°C to 85°C. The PQ7-M109 Qseven 2.1 module consists of qualified industrial-grade components and is an ideal building block for automation, security, transportation, and various harsh environment applications.
| Specification | |
|---|---|
|
CPU |
Intel® Celeron® N6211, 2C, 1.2 GHz
Intel® Celeron® J6413, 4C, 1.8 GHz
Intel® Atom® x6211E, 2C, 1.2 GHz
Intel® Atom® x6413E, 4C, 1.5 GHz
Intel® Atom® x6425E, 4C, 1.8 GHz |
|
Format |
Qseven® 2.1 │70x70mm
|
|
Chipset |
SoC (System-On-Chip)
|
|
DRAM |
Onboard 2G/ 4G/8G LPDDR4 with 3200 MT/s
Dual memory channel, 64bit support In Band-ECC (Intel® Atom® CPU) |
|
Display Interface |
LVDS, DP/HDMI
DDI0: 24-bit Dual Channel LVDS up to 1920×1200@60Hz
DDI1/2: DisplayPort 1.4 up to 8K(7680×4320)@30Hz/ 4K(4096×2160) @60Hz
Or HDMI 2.0b up to 4K(4096×2160) @60Hz |
|
Storage |
Support onboard eMMC 5.1 flash up to 256GB
2-SATA 3.0 (6 Gbit/s)
|
|
Network |
1-Intel® i210 AT/IT
|
|
Bus Interface |
1-SDIO, 1-I²C, 1-HDA, 1-JTAG, 1-SMBus, 1-LPC, 1-UART, WDT |
|
PCIe Express |
4x PCIe Gen3 |
|
USB |
2-USB3.0, 6-USB 3.0/ 1-USB3.0, 8-USB2.0 (Option) |
|
Dimensions |
70×70 mm |
