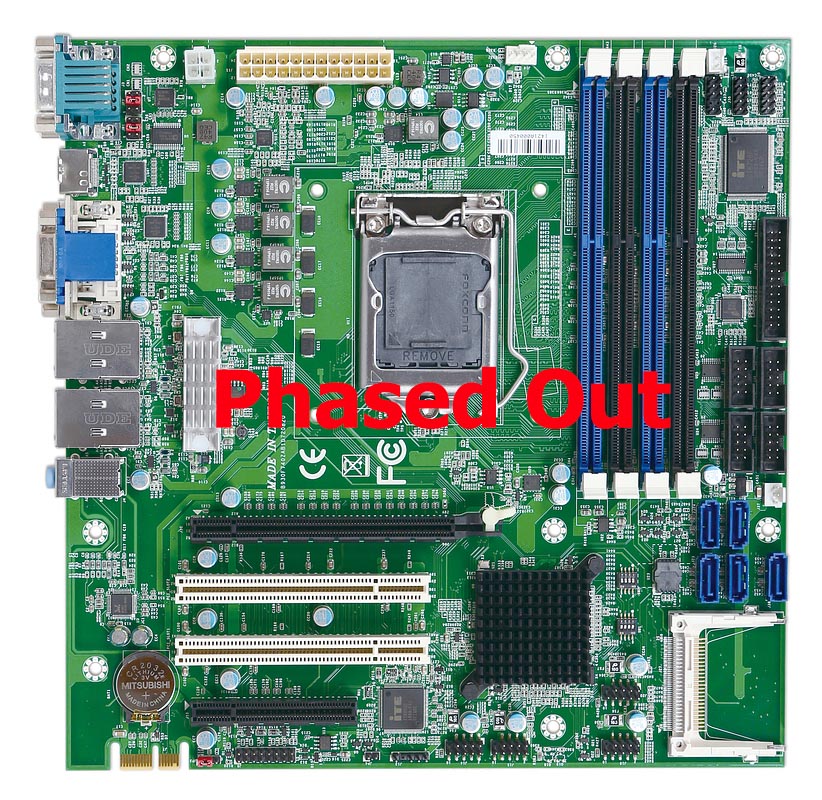

RUBY-D720VG2AR
Intel Core i3/i7 processor Q87 PCH Micro ATX Motherboard
Features :
- Intel® Core™ 4th generation family by LGA-1150 package with Q87 PCH
- Intel®Q87 PCH Chipset
- Four long DIMMs support dual channel DDR3 1333/1600 SDRAM up to 32GB
- Dual Display by VGA / DVI-D / HDMI

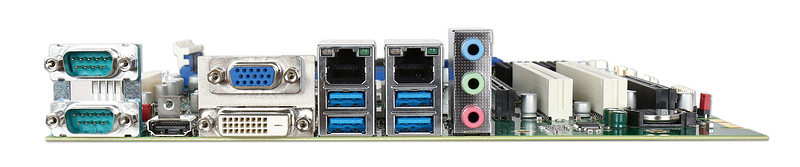

- Rear I/O, USB2.0/3.0 dual Gigabit Ethernet, COM Port and SATA III ports support Intel RAID 0, 1, 5, 10.
- One PCIe x16 (Gen3), One PCIe x8 and two PCI slot.
- Intel® Active Management Technology 9.0
Introduction
Micro ATX Motherboard RUBY-D720VG2AR is based on Intel® Q87 chipset and desktop processor sku like Intel Core™4th gen. Build with PCI and PCI Express expensions, it is suitable for Medical, Industrial automation, and digital signage applications.
Specification
|
Format |
µATX |
|
Chipset |
Intel® Q87 |
|
DRAM |
4x DDR3 DIMM Up to 32GB |
|
Display Interface |
VGA/DVI-D/HDMI support triple displays |
|
Network |
2x GbE |
|
Bus Interface |
2x PCI slots, 1x PCIe x16 slot, 1x PCIe x8 slot, 1x PCIe x1 Gold Finger |
|
Serial Interface |
5x RS232, 1x RS232/422/485 |
|
USB |
4x USB 3.0, 8x USB 2.0 |
|
Audio |
Realtek 886 HD Audio codec |
|
Miscellaneous |
PS/2, GPIO 8bit,Watchdog Timer |
|
Firmware |
AMI UEFI BIOS |
|
Operating Temperature |
0°C~60°C |
|
Storage Temperature |
-20°C~80°C |
|
Dimension |
243.8x243.8 mm |
|
Ordering Guide |
|
|
AB1-3B15 |
(R).RUBY-D720VG2AR Micro-ATX Industrial Motherboard in LGA 1150 socket and Q87 PCH, DDR3/VGA/HDMI/DVI/ Dual GbE/ COM/ Audio/ USB 3.0 |
