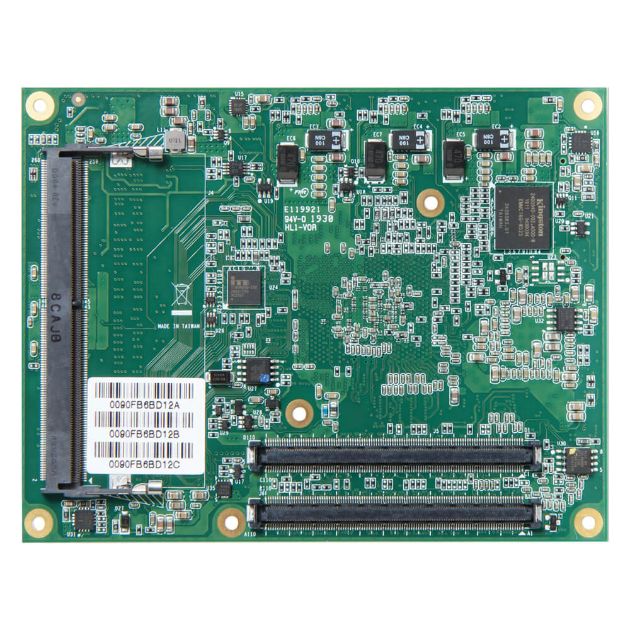

PCOM-B701GT_back_正方形_1000x1000 (1)

PCOM-B701GT

Intel® Atom® processor C3000 Series with DDR4 ECC up to 96GB 2400 MT/s on Three SO-DIMM Sockets with up to 20 HSIO Lanes, 4x KR to support 10G, NC-SI Interface, SATA III, TPM 2.0, USB 2.0 and 3.0

Features :

Description

PCOM-B701GT, a Type 7 COM Express module, is designed with Intel® Atom® processor. Based on the COM Express 3.0 Type 7 pinout definition, when compared to the Type 6 pinout, trades all the graphic interfaces for 10 GbE ports and more PCIe lanes, makes PCOM-B701GT ideal for applications in networking , micro server and the like, requiring low power consumption while supporting high computing performance and communication throughput. PCOM-B701GT features four 10GbE LAN interfaces, 20 PCIe Lanes, TPM 2.0 and three DDR4 ECC SO-DIMM up to 96GB in total. It is compatible with Type 7 carrier board

Specification
Model Name
PCOM-B701GT
Form Factor (mm)
COM Express® Basic (125 x 95mm)
COM Type
Type 7
CPU/ Clock/ Cache
Intel® Atom® Processor*

Intel® C3308

Intel® C3338

Intel® C3508

Intel® C3538

Intel® C3708

Intel® C3758

Intel® C3808

Up to 12 CPU cores*

4MB to 16MB cache*
Chipset
SoC
Memory
DDR4 1866/2133/2400 MT/s*

Non-ECC/ECC*

Single/Dual Channel*
USB
4x USB 3.0

4x USB 2.0
PCI Express
Up to

1x PCIe Gen3 x8

3x PCIe Gen3 x2

3x PCIe Gen3 x1

3x PCIe Gen2 x1
Ethernet
Intel® I210IT 4x KR (10GbE)
Sound
N/A
Graphic Controller
N/A
Carrier Board
PCOM-C701(Type 7)

PCOM-C702 (Type 7)
