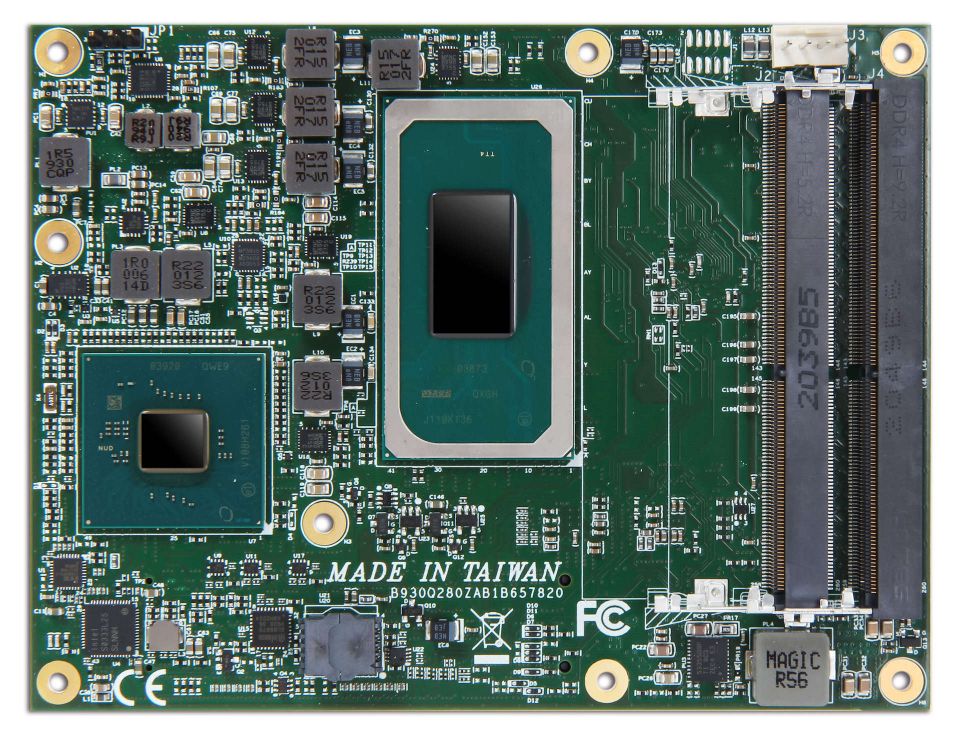

PCOM-B657VGL-1 (1)

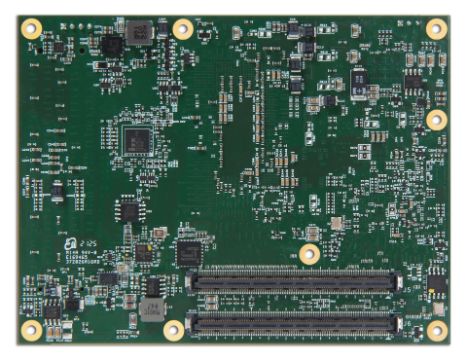

PCOM-B657VGL-2

PCOM-B657VGL

COM Express Type-6 Basic module with Intel® 11th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA

Features :

Video

Description

PCOM-B657VGL is a COM Express module based on Intel® 11th Gen H Processor, which is compatible with COMe 3.0 standard. The platform adopt 10nm++ process and support VNNI instruction set, offers advance computing power with 45W~25W thermal and industrial grade power management.



Specification
Model Name
PCOM-B657VGL
Form Factor (mm)
COM Express® Basic (125 x 95mm)
COM Type
Type 6
CPU/ Clock/ Cache
i7-11850HE, 8C/16T, 2.6GHz, 24MB

i5-11500HE, 6C/12T, 2.6GHz, 12MB

i3-11100HE, 4C/8T, 2.4GHz, 8MB

Celeron 6600HE, 2C/2T, 2.6GHz, 8MB

W-11865MRE, 8C/16T, 2.6GHz, 24MB

W-11555MRE, 6C/12T, 2.6GHz, 12MB

W-11155MRE, 4C/8T, 2.4GHz, 8MB

W-11865MLE, 8C/16T, 1.5GHz, 24MB

W-11555MLE, 6C/12T, 1.9GHz, 12MB

W-11155MLE, 4C/8T, 1.8GHz, 8MB

Chipset
RM590E / QM580E
Memory
DDR4 3200 MT/s, Dual Channel, Non-ECC / ECC (W-11000 Series)
Display
3*DDI, LVDS/eDP, VGA
Storage
4*SATA, 2*PCIe x4 M.2
USB
4 x USB 3.2 Gen 2 x1,

8 x USB 2.0
PCI Express
1 x PCIe 4.0 x16 (1 x16, 2 x8, or 1 x8 + 2 x4),

8 x PCIe 3.0 x1 (8 x1, 4 x1 + 1 x4, or 2 x4)

Support Intel RST for PCIe Storage for both x4 Link
Ethernet
Intel I225 Family (2.5G)
Sound
Intel® High Definition Audio
Graphic Controller
Intel® UHD Graphics
Carrier Board
PCOM-C605

PCOM-C60B
