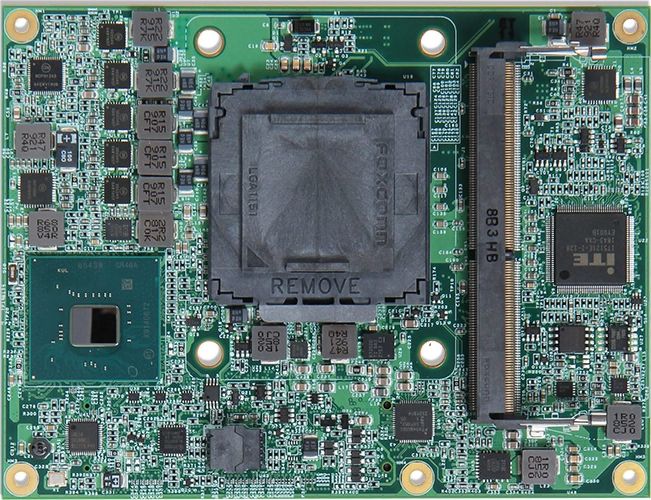

PCOM-B654GL
Intel® Coffee Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, Gigabit Ethernet, SATA III, and USB 3.2 Gen2
Features :
- Intel® Core™ i7/i5/i3/Celeron Processors 14nm process(Coffee Lake-S)
- Support 2x DDR4-2400 Non-ECC/ECC SO-DIMMs, up to 2x 16GB
- Support USB2.0/3.2 Gen2, 4x SATAIII, 1x PCIe 3.0 x16, and 8x PCIe 3.0 x1
- Support LVDS, and 3x Display port/HDMI
Description
PCOM-B654GL is Intel® Coffee Lake-S platform COM Express module. It is compatible with COMe 3.0 Type 6 carrier board. The desktop CPU on module offers customer higher computing power but lower cost comparing to mobile solutions. PCOM-B654GL supports both ECC and Non-ECC DDR4 by different PCH SKUs(Q370/C246), which can be adapted to different applications. This module provides one PCIex16, eight PCIex1 (Option to one PCIex4), four USB 3.2 Gen2, and four SATA III.
| Specification | |
|---|---|
|
Model Name |
PCOM-B654GL
|
|
Form Factor (mm) |
COM Express® Compact (125 x 95mm)
|
|
COM Type |
Type 6
|
|
CPU/ Clock/ Cache |
Intel® 8th Generation Core™ 35W Desktop processor* Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Intel® Celeron® G4900T* Up to 6 CPU cores* 2MB to 12MB cache* |
|
Chipset |
Q370/C246
|
|
Memory |
DDR4 2400MT/s* Non-ECC/ECC* Dual Channel* |
|
USB |
4x USB 3.2 Gen2 8x USB 2.0 |
|
PCI Express |
1x PCIe 3.0 x16 8x PCIe 3.0 x1 |
|
Ethernet |
Intel® I219LM
|
|
Sound |
Intel® High Definition Audio
|
|
Graphic Controller |
Intel® UHD Graphics 630* Intel® UHD Graphics 610* |
|
Carrier Board |
PCOM-C60B (Type 6)
|
