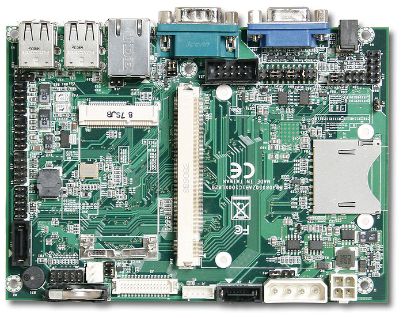

PQ7-C100XL
Qseven Carrier Board for Intel Menlow-XL CPU ATOM Z520PT
Features :
- Qseven carrier board accept Portwell Qseven modules
- Intel® Atom™ Z5XXPT and SCH US15WPT
- 3.5″ ESB form factor to embedded applications
- On Board DC to DC circuit for DC in application
- Mini-PCIe support
- Support boot from SD(SDIO 1.1)
Description
3.5″ ESB Form Factor Carrier Board For Qseven Module
| Specification | |
|---|---|
|
Format |
3.5″ ESB
|
|
Display Interface |
VGA |
|
Storage |
SD Card slot, one mini-PCIe, two SATA ports
|
|
Network |
GbE port
|
|
USB |
Four rear USB ports, Three USB header
|
|
Audio |
one MIC-IN, one LINE-OUT
|
|
Power Requirement |
DC 12V
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
Extended Temperature |
-40°C ~ 85°C
|
|
Dimensions |
146mm x 102mm
|
