PQ7-C201

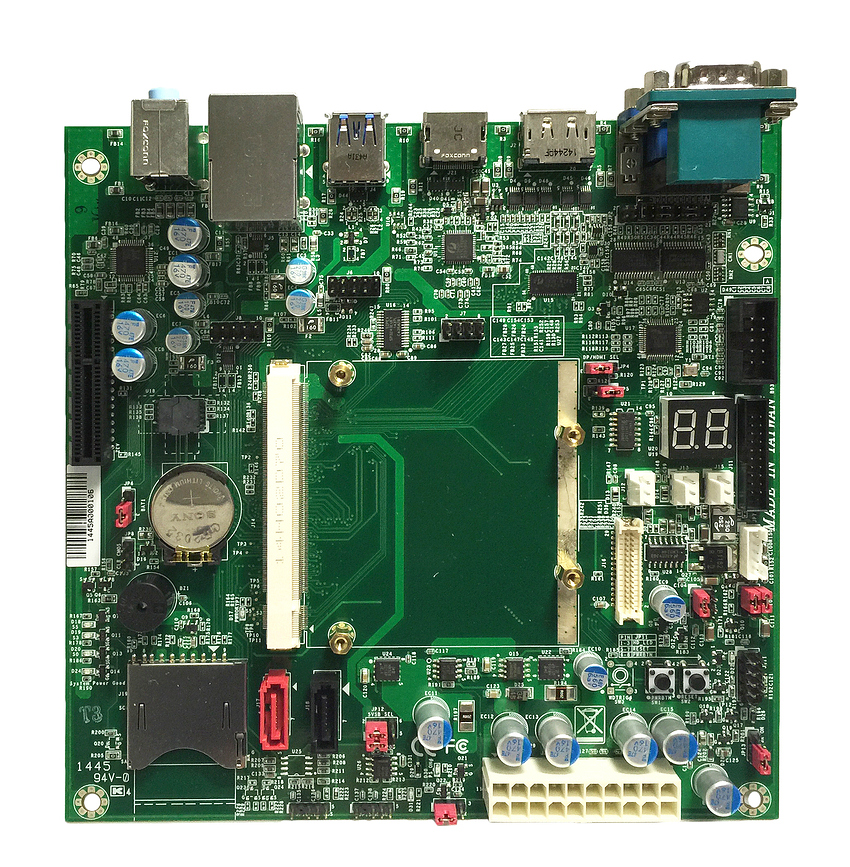

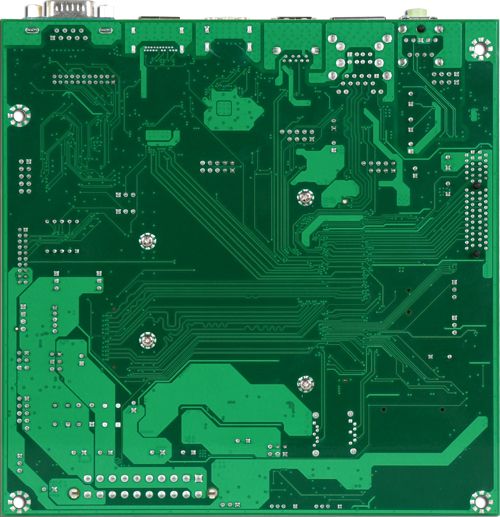

Mini-ITX Form Factor Carrier Board For Qseven Module
Features :
- Qseven® 2.0 carrier board is compatible with Portwell Qseven® modules
- Mini-ITX form factor for embedded applications
- 1x Gigabit Ethernet port
- 2x SATA ports and 1x SD socket
- 1x PCIe x4 expansion slot
- DP, HDMI, VGA and LVDS support
Description
Mini-ITX Form Factor Carrier Board For Qseven Module with Multiple Displays and One GbE
| Specification | |
|---|---|
|
Qseven module |
Portwell Qseven® module PQ7-M10X Series
|
|
Format |
Mini-ITX
|
|
Type |
Carrier
|
|
Display Interface |
– 1x Display port – 1x HDMI port – 1x VGA port – LVDS header to support eDP/LVDS |
|
Storage |
2x SATA
|
|
Network |
1x Gigabit RJ45
|
|
Expansion Interface |
– 2x COM ports (1x RS-232/422/485 header, with 1x RS-232 port) – 1x PCIE x4 slot – SMBus header – I2C header – LPC header – SPI header – TPM header |
|
Serial Port |
1x serial RX/TX supported from onboard EC (Embedded Controller)
|
|
USB |
– 1x USB 3.0, – 2x USB 2.0 (rear I/O) – 3x USB 2.0 (header) |
|
Audio |
Line in, Line out
|
|
Power Requirement |
– 12VDC input – Supports AT/ATX mode, 20 pin ATX power connector |
|
Operating Temperature |
0°C to 60°C
|
|
Dimensions |
170(L) x 170(W) mm; 6.69″(L) x 6.69″ (W)
|
