PIPC-06003

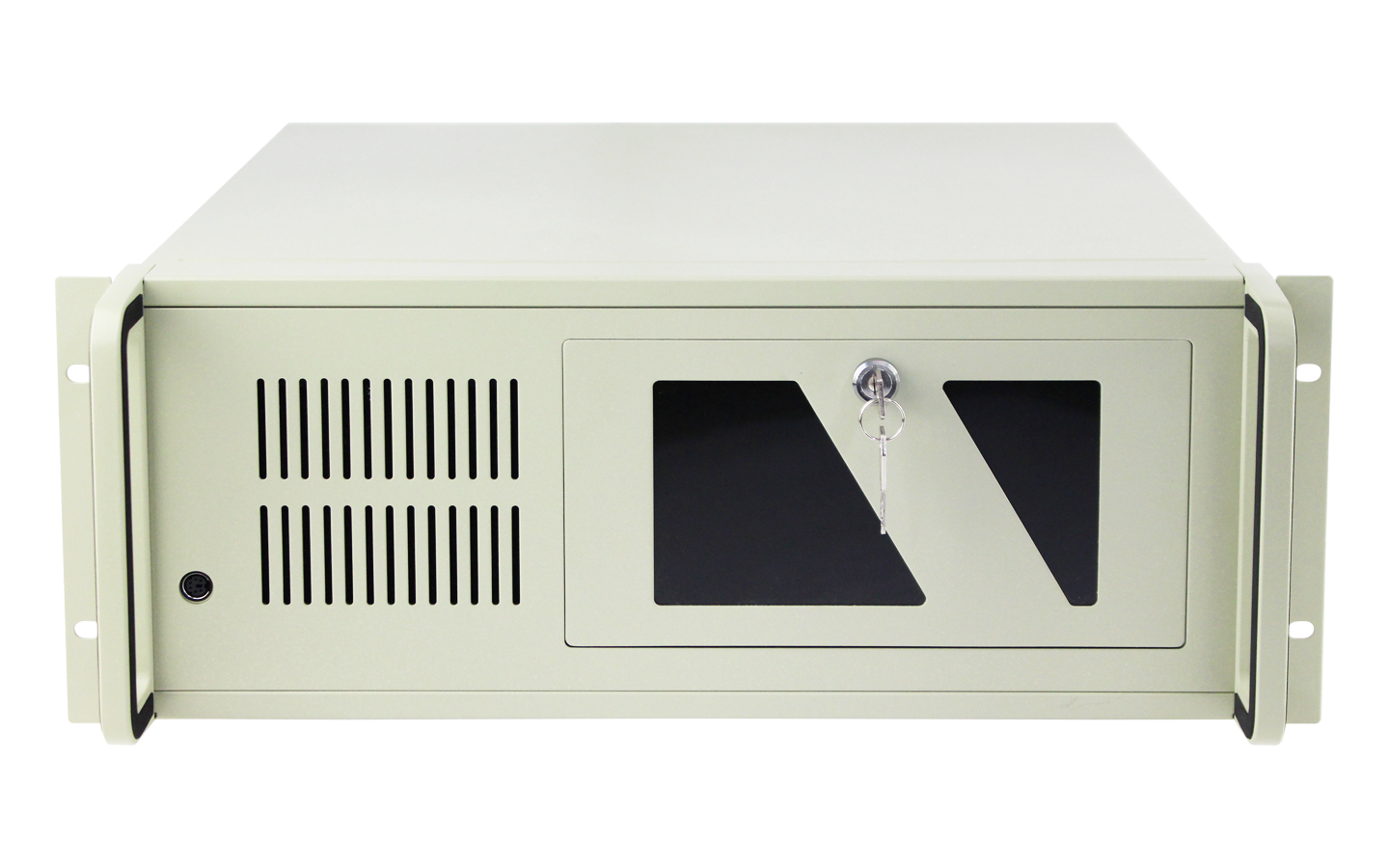

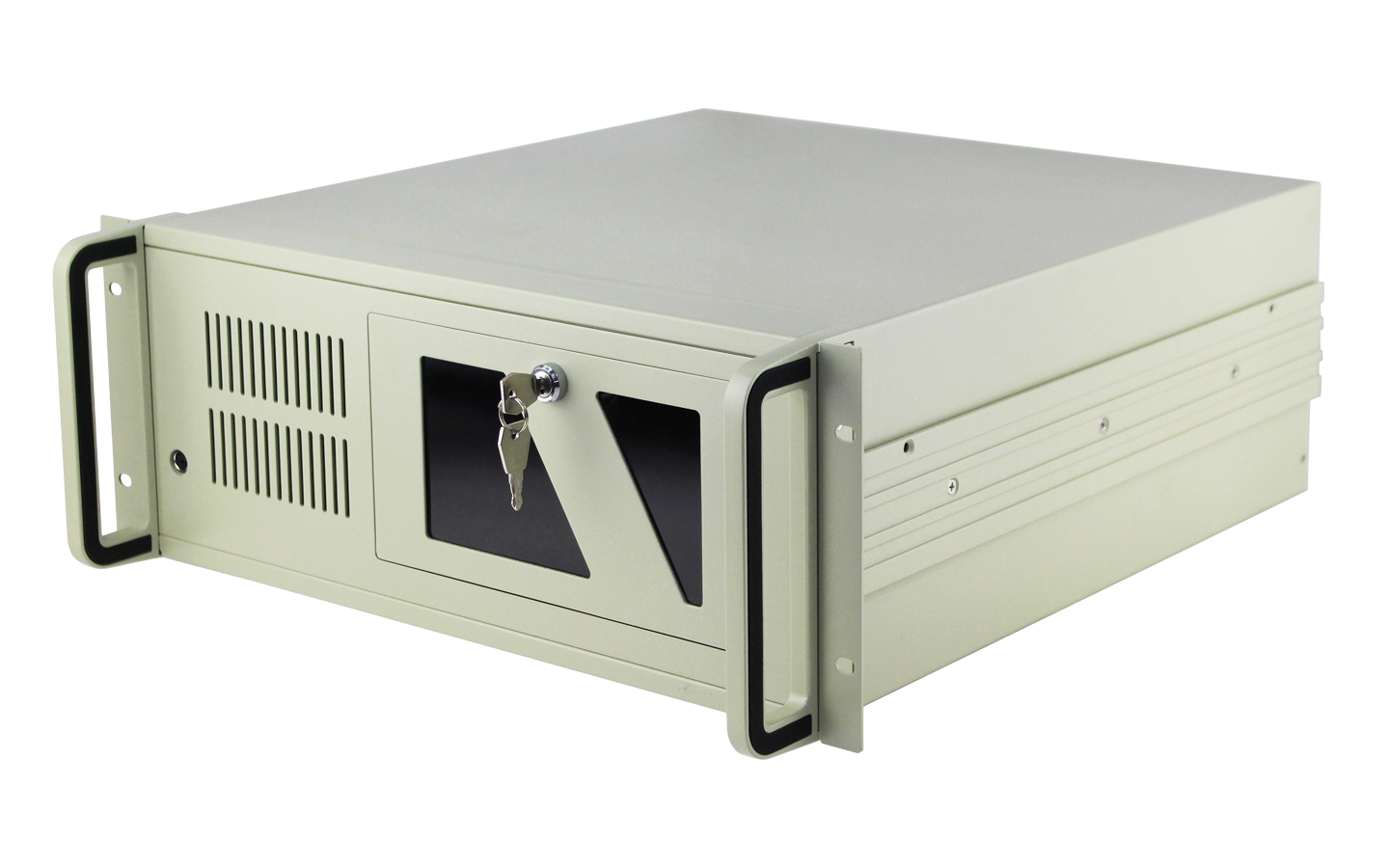

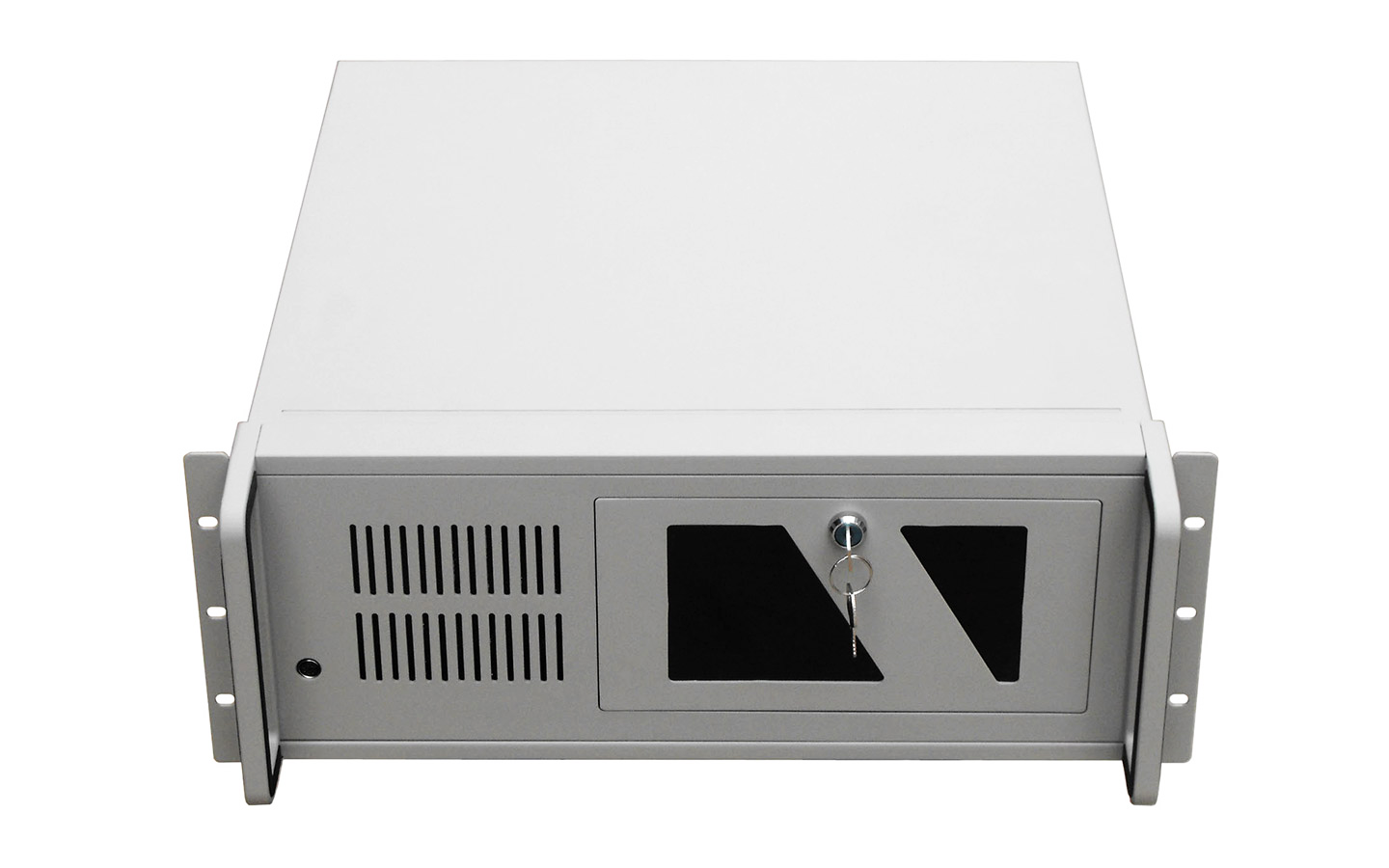

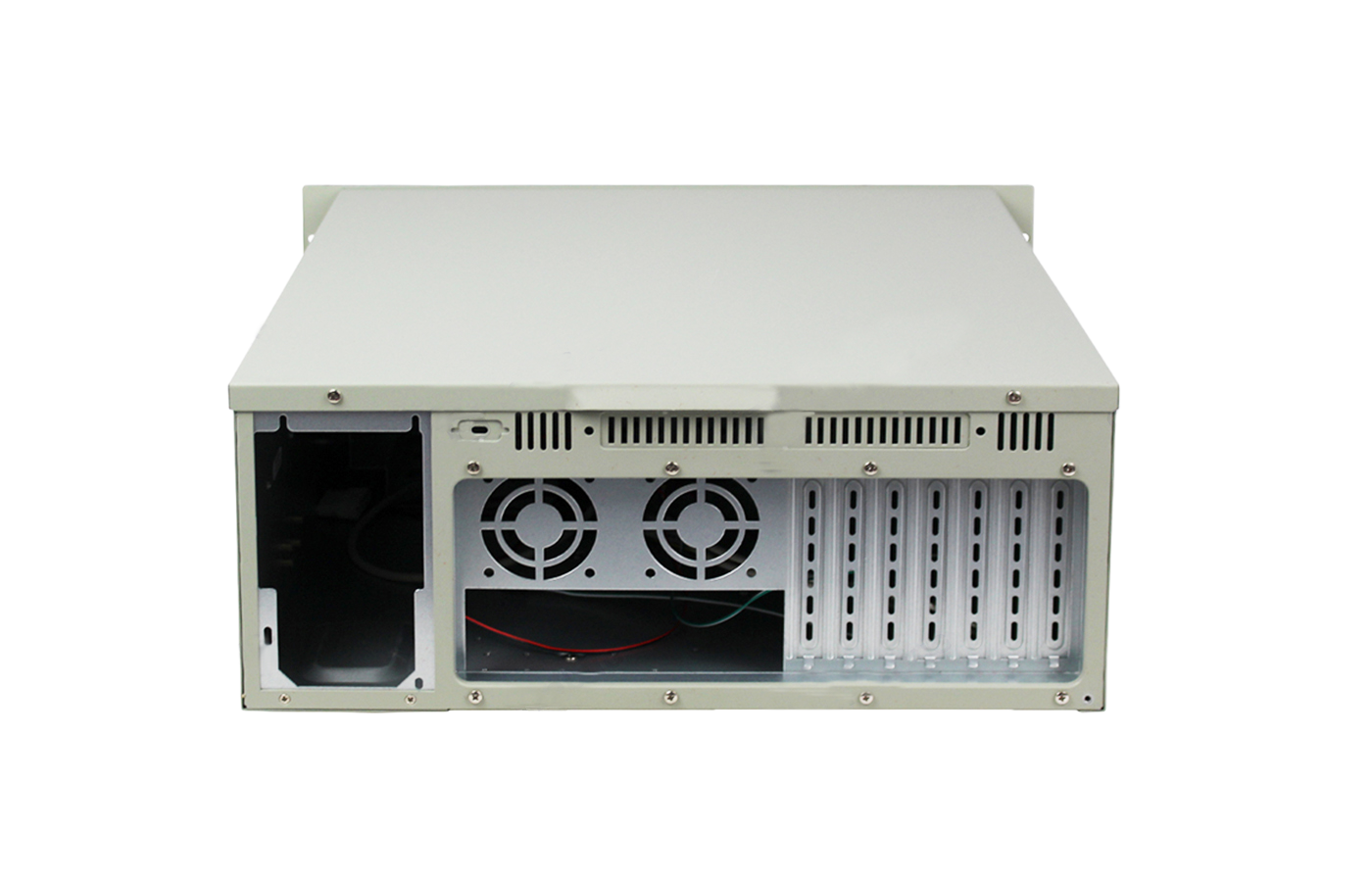

19″ 4U Hybrid Industrial rack-mount chassis, 14-slot backplane and Motherboard Version support PS2 and Redundant PSU
Features :
- 2x 3.5" HDD Bays for RAID, 1x 3.5" FDD Bay and 2x5.25" DVD/CD-ROM
- One 120mm Fan on front
- Two USB ports front
- PS/2 Keyboard and Mouse port.
- ATX & Micro-ATX Motherboard or Backplane version up to 14-Slot applicable
- PS/2 or Redundant Power supply support
Description
PIPC-06003 is Hybrid type chassis and flexible designed for for motherboard version ATX/ Micro-ATX motherboard and Backplane version up to 14-slot. It supports Standard PS/2 form factor Power supply & Redundant power supply that makes PIPC-06003 the very flexible 4U Rack-mount chassis for Industrial automation, and SCADA type and various applications
Specification
|
Type |
4U |
|
Model |
PIPC-06003 |
|
Slot |
- Motherboard - 7 Slot
- Backplane Version - up to 14-slot |
|
Dimension (WxDxH) |
427 mm x 450 mm x 177 mm |
|
Colour |
Biege (grey)
Black (optional) |
|
Power Supply |
Standard PS2 Power Supply or Redundant |
|
Motherboard form factor |
Motherboard : ATX, Micro-ATX
Backplane : up to 14-slot backplane + PICMG 1.3 version |
|
Connectors and LED |
2-USB 2.0
1-Power SW + LED
1-Reset SW
1-HDD LED
1-KB-LK SW + LED |
|
Ordering Guide |
|
|
PIPC-06003-MB |
4U Rackmount Chassis, Power/Reset, LED, 2-USB, 2-3.5inch, 2-5.25inch, 7-Slot MB Version
|
|
PIPC-06003-MB/BLK |
4U Rackmount Chassis, Power/Reset, LED, 2-USB, 2-3.5inch, 2-5.25inch, 7-Slot MB Version, BLACK |
|
PIPC-06003-BP |
4U Rackmount Chassis, Power/Reset, LED, 2-USB, 2-3.5inch, 2-5.25inch, 14-Slot Backplane & PICMG |
|
PIPC-06003-BP/BLK |
4U Rackmount Chassis, Power/Reset, LED, 2-USB, 2-3.5inch, 2-5.25inch, 14-Slot Backplane & PICMG, BLACK |
