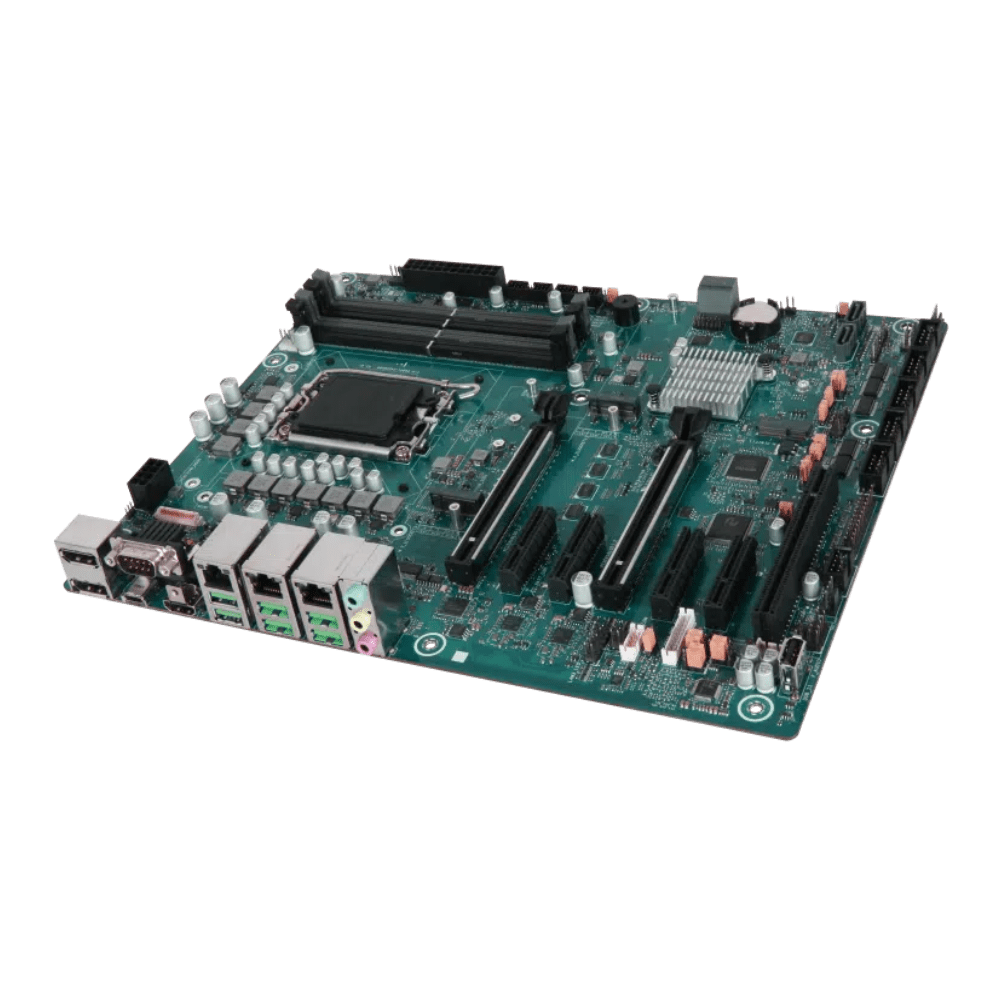

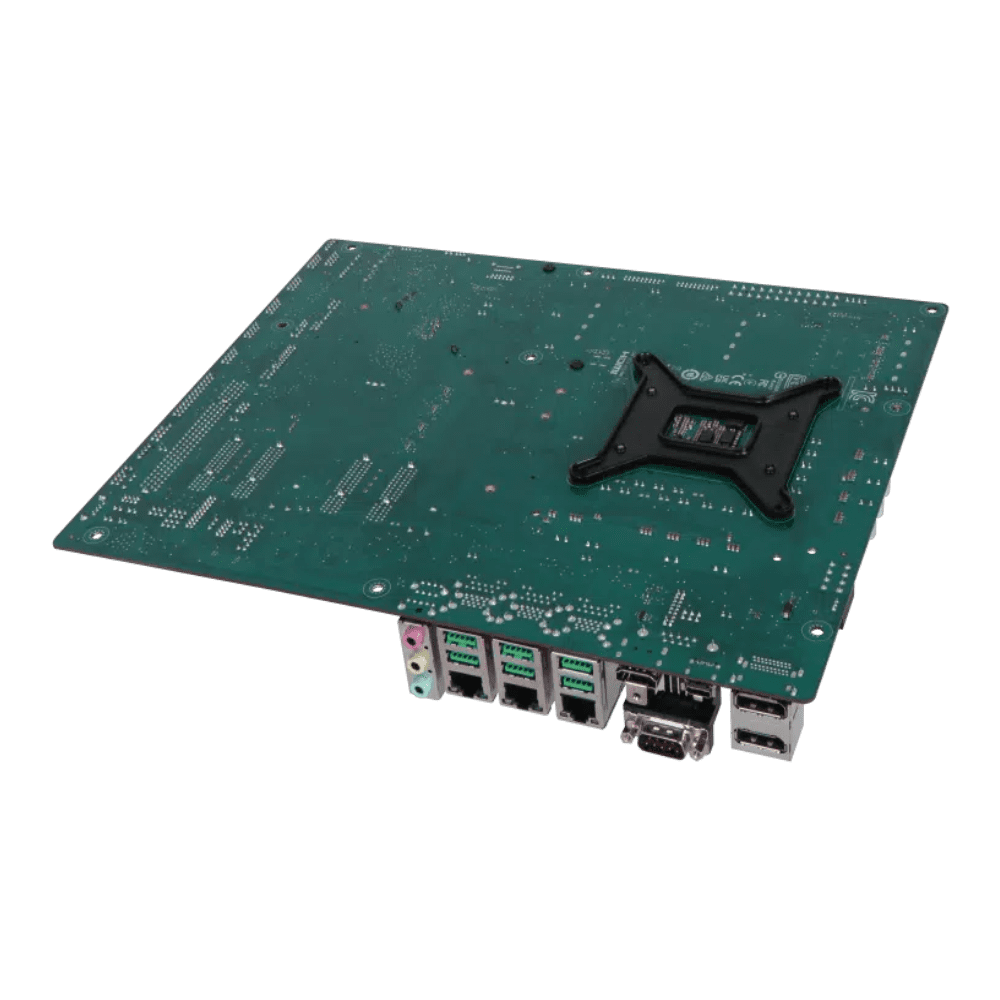

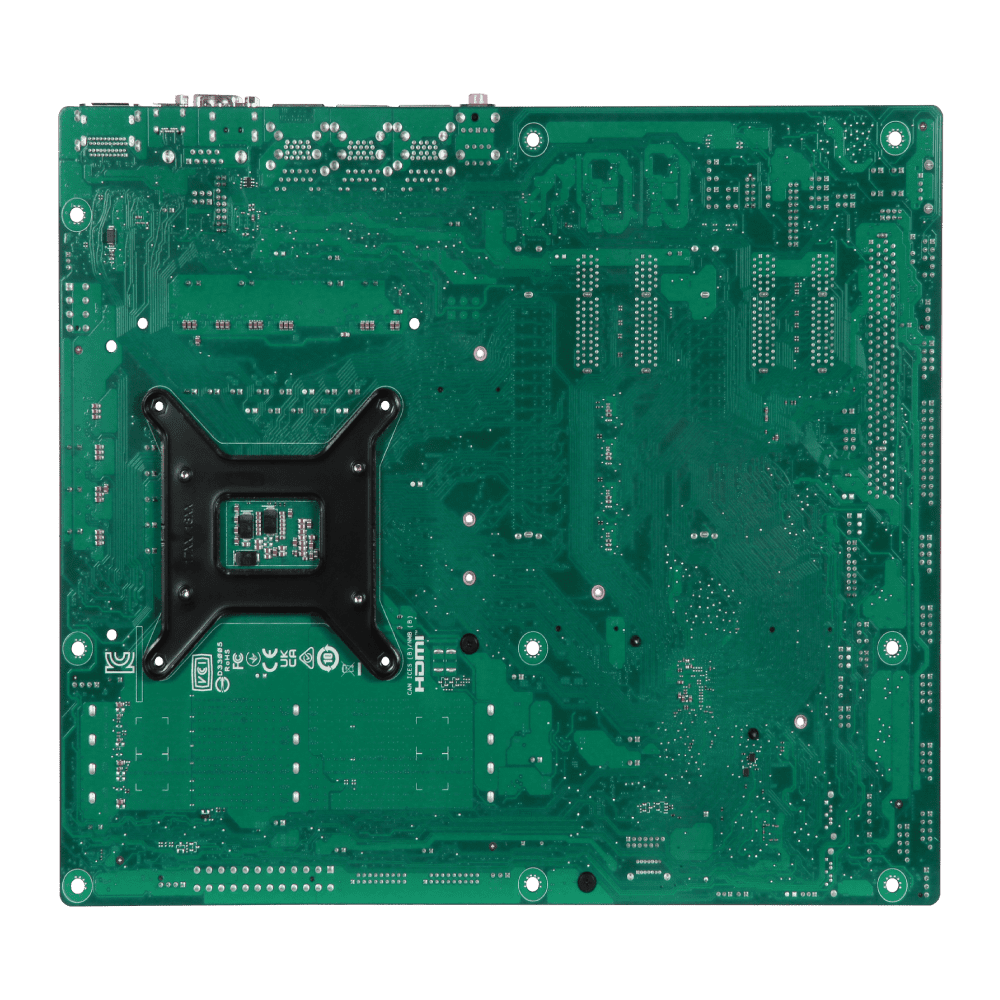

RUBY-D814-Q870
Support Desktop Intel® Core™ Ultra Processors (Series 2),ATX with DDR5 Long-DIMM up to 192GB, VGA, DP, HDMI®,Triple GbE LAN, Six Com Ports
Features :
- Intel® Core™ Ultra™ Series 2 Processors
- Four Long-DIMM support DDR5 Non-ECC DRAM up to 192GB
- Support triple Ethernet, 6x COM Ports, 11x USB 3.2 Ports, 4x SATA III Ports and Audio
- Two PCIe x16 (1 x16 signal / 2 x8 signal), four PCIe x4 (2x PCIe x4 signal, 2x PCIe x2 signal), one PCI slot, two M.2 (Type M), 1x type 2242/2260/2280, and 1x type 2280 and one M.2 (Type E) type 2230
RUBY-D814 is based on Intel® Q870 chipset and Desktop processors including Intel® Core™ Ultra (Series 2) i5/i7/i9 Sku. This board supports DDR5, PCIe, and SATAIII. Those features help you to build high performance and stable system.
Specification
| General | |
| Processor | Intel® Core™ Ultra Processors (Series 2) in LGA1851 package |
| Chipset | Intel® Q870 |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 96GB DDR5 5600 MT/s on 2 non-ECC UDIMM |
| Storage Devices | 4x SATAIII ports, supports RAID 0, 1, 5, 10 |
| Watchdog Timer | Programmable watchdog timer, time out period from 1 sec to 255 secs |
| Hardware Monitoring | System monitor (Voltage/Fan Speed and Temperature) |
| Expansion Interface | 2x PCIe5.0 x16 slot (x16 signal / x8 signal) |
| 2x PCIe4.0 x4 slot (x4 signal, open end slot) | |
| 2x PCIe1.0 x4 slot (x2 signal, open end slot) | |
| 1x PCI slot | |
| 1x M.2 (Type M), type 2242/2280/22110 (PCIe5.0 x4), supports NVMe | |
| 1x M.2 (Type M), type 2280 (PCIe4.0 x4), supports NVMe | |
| 1x M.2 (Type E), type 2230, with support for Intel® CNVi™ | |

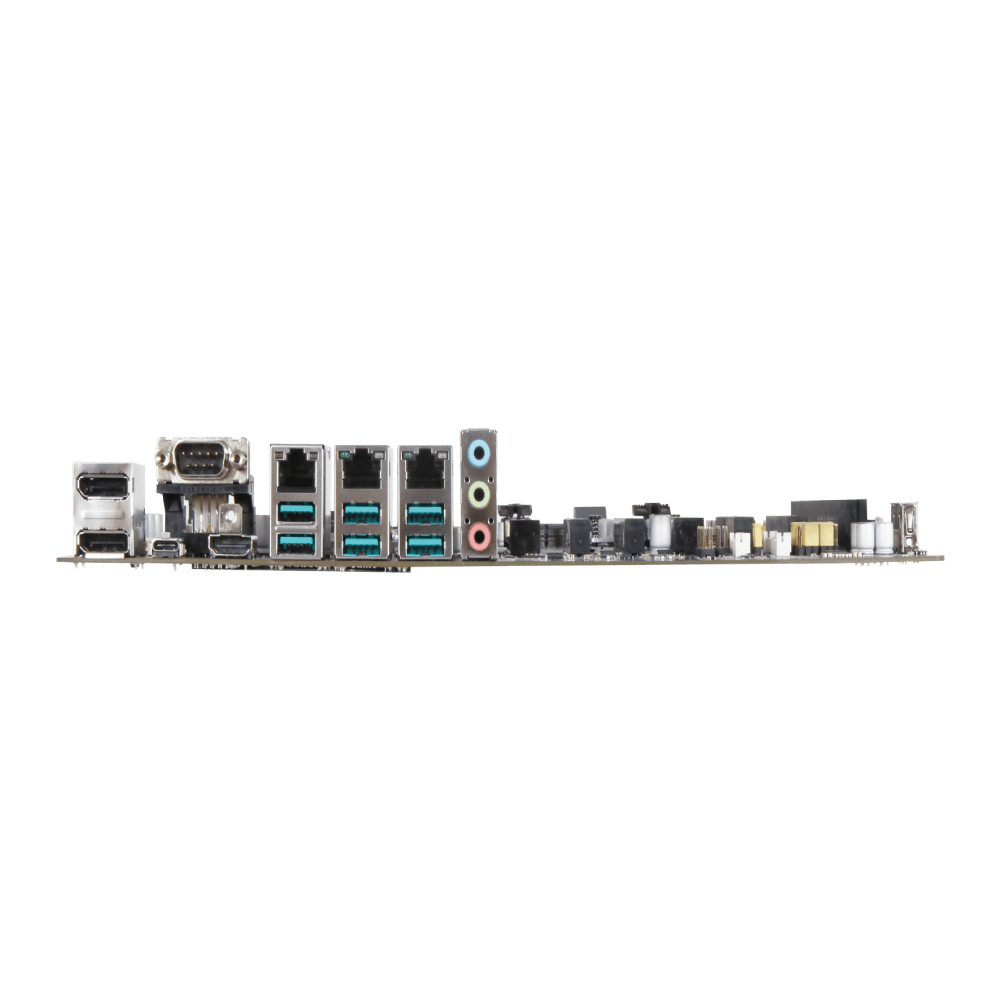

| Rear I/O | |
| Audio | Realtek ALC887 audio controller |
| Audio Jack on rear I/O with Line-In / Line-Out / Mic-In | |
| Ethernet | Intel® I210IT, I226V, I226LM (I226LM support Intel®vPro® Ethernet controller |
| 3x RJ45 connectors on rear I/O | |
| Serial Port | 1x RS-485 connectors on rear I/O |
| 1x RS232/422/485, 4x RS232 on pin header | |
| USB | 6x USB3.2 (Gen2) (Type A) on rear I/O |
| 1x USB3.2 (Gen2x2) (Type-C) on rear I/O (co-lay with DP1.4) | |
| GPIO | 8-bit configurable controlled by embedded controller |
| Display | |
| Graphic Controller | Intel® Xe LPG Graphic |
| Display Interface | DP: Two DP 1.4 ports on rear I/O, resolution up to 3840×2160 at 60Hz |
| One DP 1.4 on rear I/O, co-lay with USB3.2 Gen2x2 Type-C | |
| HDMI®: One HDMI® 2.1 connector on rear I/O, resolution up to 4096×2160 at 60Hz | |
| VGA: One VGA port on rear I/O, resolution up to 1920×1200 (addition cable required) | |
| Mechanical/Environment | |
| Dimension | 304.8mm(L) x 243.8mm(W) x 1.6mm(H) |
| Power Supply | ATX power input |
| Environment | Operation Temperature: 0°C to 60°C |
| Storage Temperature: -40°C to 85°C | |
| Relative Humidity: 10% to 95%, non-condensing | |
| MTBF | Over 100,000 hours at 40°C |
Ordering Guide
| Ordering Guide | |
| AB1-3U19 | (R), RUBY-D814-Q870, ATX, IMB, LGA1851, CPU Q870, w/ DDR5/DP/HDMI®/Triple GbE/COM/Audio/USB |
| Packing List | |
| One RUBY-D814-Q870 main board | |
| One RUBY-D814-Q870 main board | |
| One RUBY-D814-Q870 main board | |
