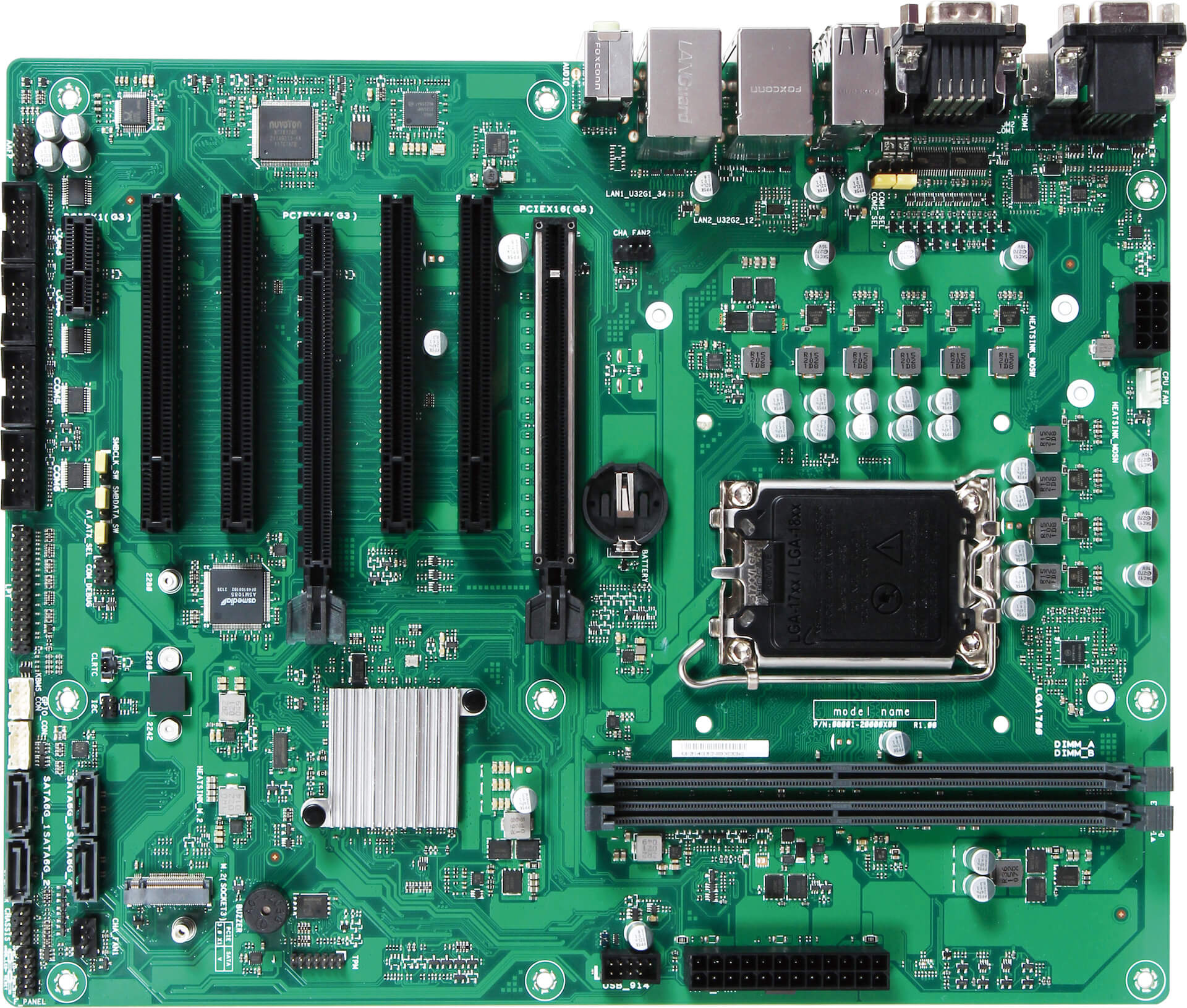

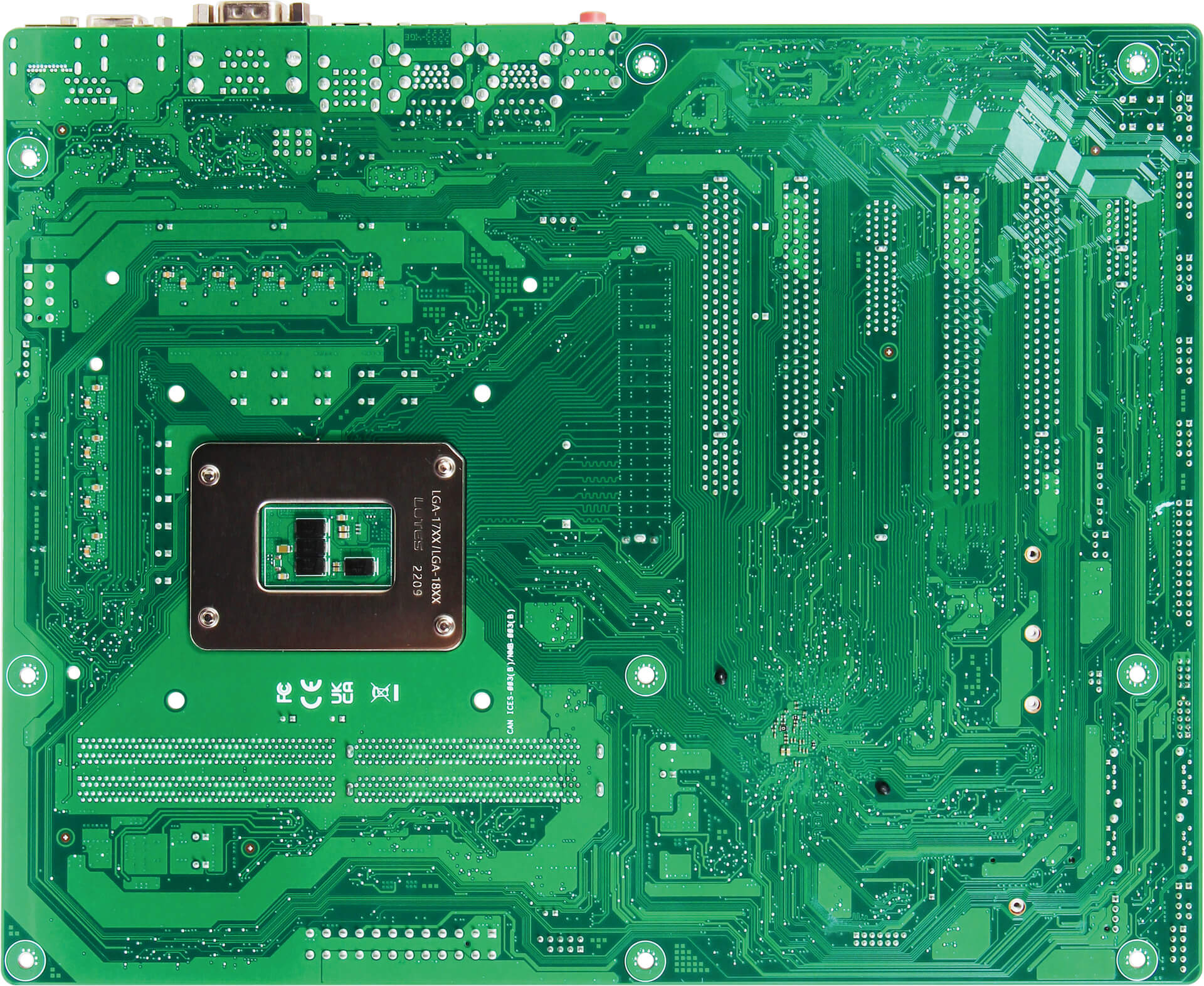

RUBY-D813-H610E
ATX motherboard Support Desktop Alder-Lake Intel® 12th Gen Core™ Processors with DDR4 Long- DIMM up to 64Gb , VGA DP port , HDMI ,Dual GbE LAN, Six COM Ports
Features :
- Intel® 12th Gen Alder-Lake Core™ i3/i5/i7/i9 Processors support
- Two Long-DIMM support DDR4 Non-ECC DRAM up to 64GB
- Support dual Ethernet, 6-COM Ports, 4-USB 3.2 Ports , 4-SATA III Ports and Line-Out/Mic-In
- 2-PCIe x16 (1-PCIe x4 signal), 1-PCIe x1 , 4-PCI slot, 1-M.2 2242/2260/2280 (Type M)
Description
ATX Motherboard RUBY -D813 is based on Intel® Alder Lake H610E chipset. It supports Desktop processors Intel® 12th Genâ„¢ Core i3/i5/i7/i9 SKU. This board supports DDR4 upto 3200MHz RAM up to 64GB, PCIe, and SATAIII. Those whole features help you to build high performance and stabile system.Â
Specification
|
MODEL |
RUBY-D813-H610E |
|
Form Factor |
ATX |
|
CPU |
Intel® Alder-Lake 12th Gen Core™ Processors CPU in LGA1700 package |
|
Chipset |
Intel® H610E |
|
BIOS |
AMI UEFI BIOS (SPI ROM) |
|
Memory |
2-DDR4 Long-DIMM 3200MHz up to 64GB |
|
Expansion |
2-PCIe x16 slots(1-PCIe x4 signal)
1-PCIe x1 slots
4-PCI slots
1-M.2 (Key M) type 2242/2260/2280 (SATA/PCIe x1 mode) |
|
Display |
UHD 630 supports DirectX 12, OpenGL 4.5
DP/ HDMI/ VGA
|
|
Audio |
Realtek ALC897, Line-out /Mic-in |
|
LAN |
I219V and Intel® I210AT
2x GbE |
|

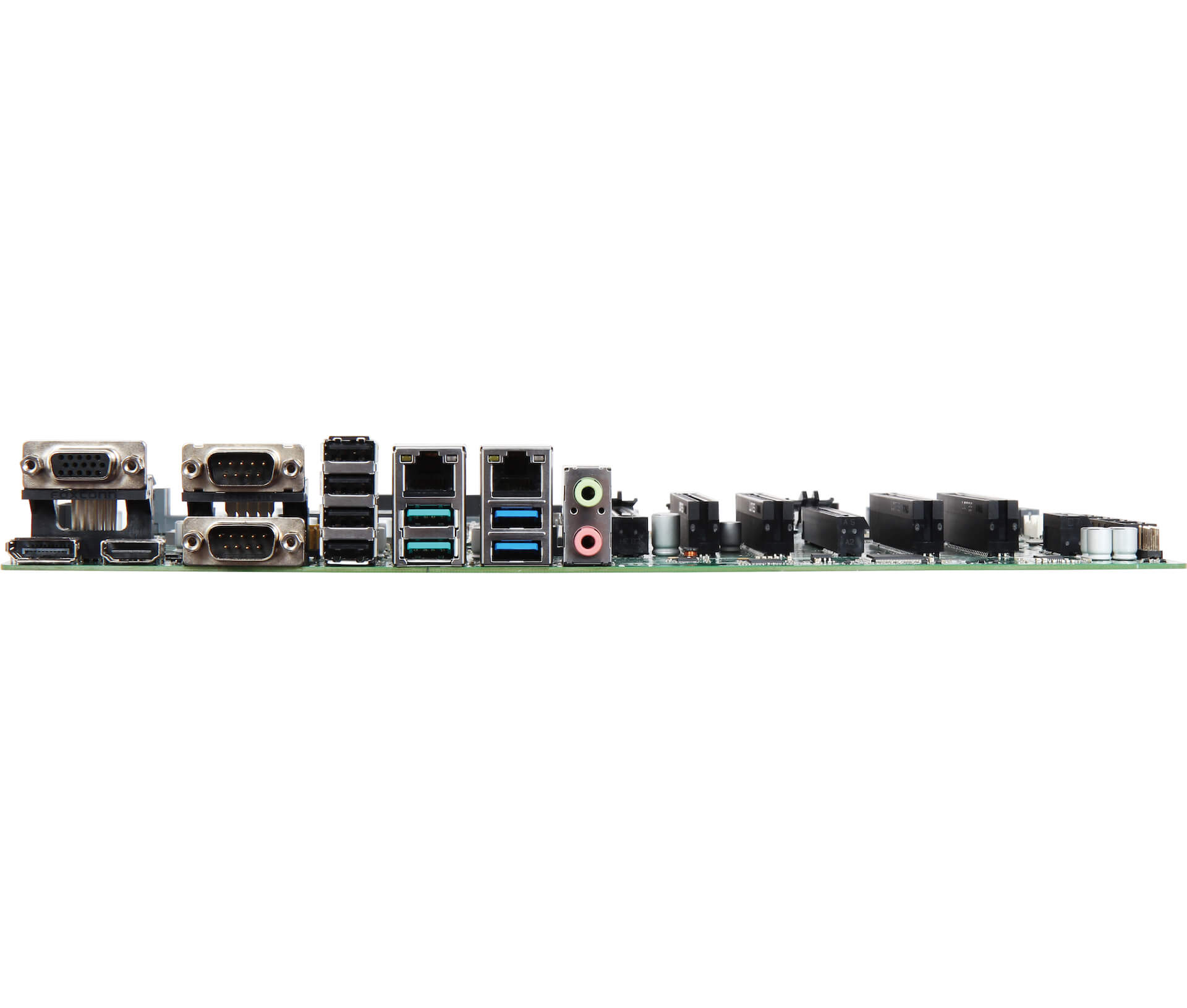

Serial Port |
2-RS232/422/485 port REAR I/O
4-RS232 port on pin header |
|
USB |
Rear I/O- 4-USB3.2(Gen2), 4-USB 2.0 ports
Internal - 2-USB2.0 |
|
Storage Devices |
4- SATAIII ports |
|
GPIO |
8-bit configurable controller by embedded controller |
|
Super I/O |
NCT6126D |
|
Dimension |
304.8mm(L) x 243.8mm(W) x 1.6mm(H) |
|
Ordering Guide |
|
|
AB1-3D29 |
RUBY-D813-H610E
(R).RUBY-D813-H610E.ATX IMB.LGA1700 H610E. w/ DDR4/VGA/ DP/HDMI Dual GbE/COM/Audio/USB |
|
Packing List |
|
One RUBY-D813 motherboard
|
|
One I/O shield |
|
One SATA Cable |
