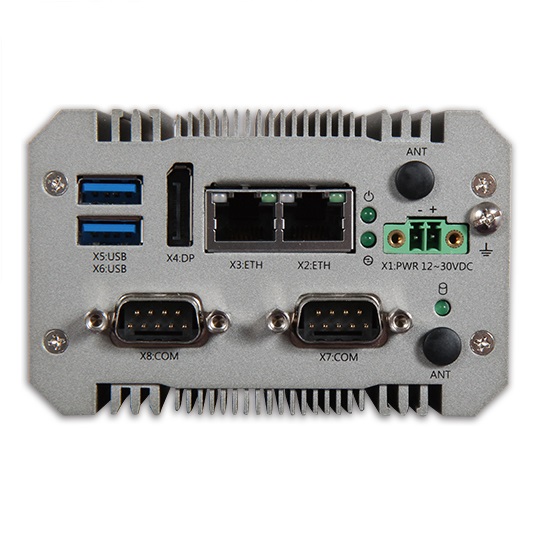

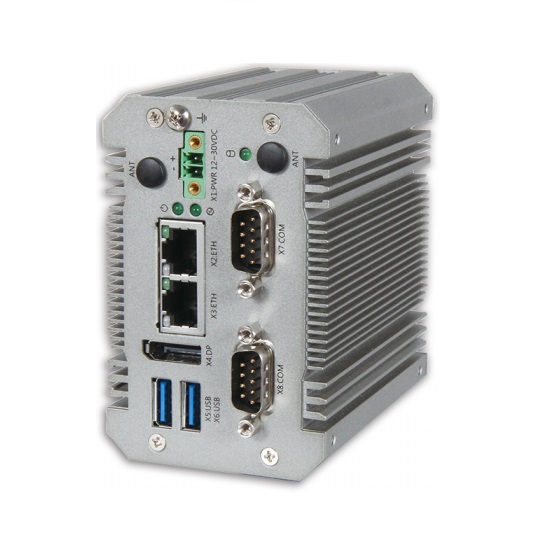

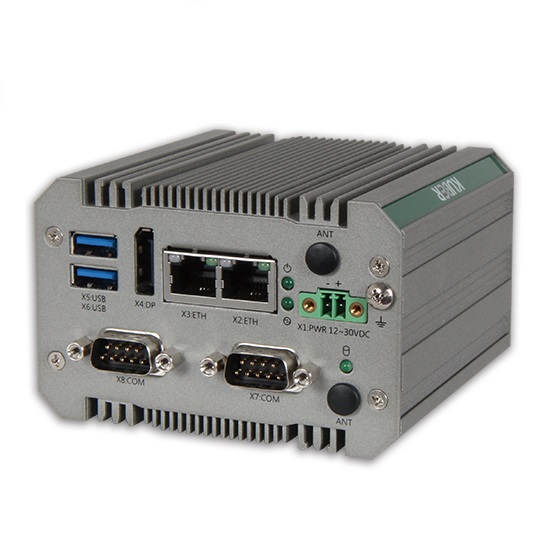

KUBER-212E-IT
Features :
- Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
- 4GB onboard LPDDR4 memory
- Supports 2 GbE, 2 USB 3.0, 1 DP, 1 RS-232 and 1 RS-232/422/485
- M.2 Key E and mini-PCIe for Wireless communication
- 32GB onboard eMMC 5.0 storage
- CE, FCC Compliance
Description
Ultra-Small Form Factor Industrial PCwithIntel®Apollo Lake family processor
General
|
CPU |
Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
|
Memory |
4GB onboard LPDDR4 w/ 2133MHz, up to 8GB (optional) |
|
Mass Storage |
32GB onboard eMMC 5.0 flash; up to 256 GB (optional) |
|
Power input |
24VDC (+/- 30%) |
|
Indicator LED |
Power (Green), Run (Green) |
|
Operating systems |
Windows® 10 IoT Enterprise LTSB 2016 (64-bit) Linux Yocto Warrior v2.7.1 (kernal 4.14) |
|
Expansion |
1 x M.2 Key E 2230 |
|
Power connection |
1 x 2-pin screw-type terminal block |
|
Ethernet |
2 x 10/100/1000 GbE (Intel® i210) |
|
USB |
2 x USB 3.0 |
|
Display |
1 x DP v1.4 4096 x 2160 @ 60Hz |
Extended I/O Interfaces
|
COM/ Console |
1 x RS-232 1 x RS-232/422/485 (BIOS Configurable) |
|
Expansion Slot |
1 x M.2 Key B 2242 1 x Mini-PCIe |
Mechanical
|
Degree of protection (IP rating) |
IP30 |
|
Dimension |
99mm (L) x 63mm (W) x 92 mm (D) |
|
Net Weight |
0.65 (Kg) |
|
Mounting |
DIN rail and wall mounting options |
|
Cooling |
Fanless |
Environment
|
Operating temperature |
0°C ~ 40°C with air flow |
|
Storage Temperature |
-40 °C ~ 85 °C |
|
Relative Humidity |
5 % ~ 95 % RH (non-condensing) |
|
Vibration |
Wall mount- MIL-STD-810G 514.7C-V Category-4 Din Rail – 1G (DIN EN 60068-2-6) |
|
Shock |
Wall mount -40G(MIL-STD-810G Table 516.6B-I) Din Rail -15G (IEC 60068-2-27) |
|
Certification |
CE, FCC Compliance |
Optional Accessories
|
Power Adaptor |
APH-8000 – 2-pin Connector, 60W, 24V/2.5A |
|
Mounting Kit |
B787J130 – KUBER-2000 Wall mount bracket kit B787J240 – KUBER-2000 Din-rail kit |
|
Video Adaptor |
B787W020 – DP to VGA video adaptor B786W030 – DP to DVI video adaptor |
