KUBE-5500
Features :
- High performance Intel Kaby Lake family processor
- Support Heavy Industrial EMC
- Compact design, patented thermal solution
- Easy for PPC integration by LVDS
- Edge LED indication design
- Support DIN-Rail, Wall Mounting, VESA Scheme
- Removable service panel for easy maintenance
Description

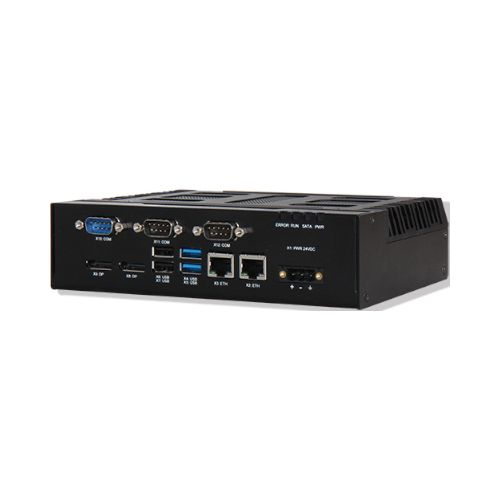

High Performance Box PC with Intel® Core™ i5-7442EQ Kaby Lake processor, designed for heavy industrial applications
Â
General
|
CPU |
Intel® Core™ i5-7442EQ, 4 cores, 2.1/2.9 GHz, 25W TDP
|
|
Memory |
2x DDR4 2133/2400 MT/s SODIMM socket support up to 64GB
|
|
Mass Storage |
1 x M.2 Key-B, 2260 interface for SSD
|
|
Video Interface |
2 x DP v1.4 4096 x 2160 @ 60Hz |
|
Expansion |
1 x mini-PCIe with mSATA interface
|
|
Cooling |
Fan |
|
Power input |
24VDC+/- 20% w/ RVP
|
|
Indicator LED |
ERROR, RUN, SATA, POWER
|
|
Power switch |
1 x Power switch (Optional)
|
|
Operating systems |
Windows®10
|

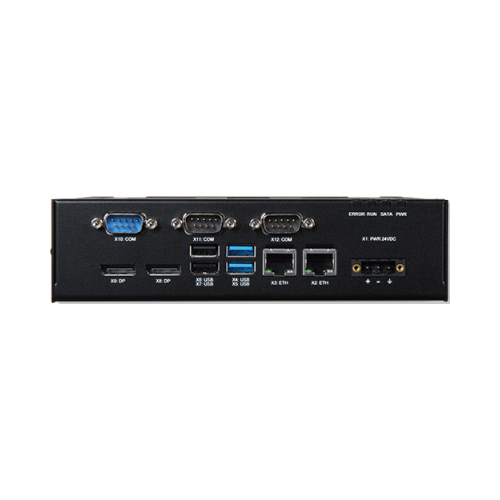

I/O Interfaces
|
Power connector |
1 x 3-Pin Terminal Block |
|
USB |
2 x USB 2.0 (5V/0.5A) 2 x USB 3.0 (5V/0.9A) |
|
Ethernet |
2 x 10/100/1000 GbE (Intel® i210) |
|
RS-232 |
2 x COM RS-232 |
|
RS-232/422/485 (BIOS configurable) |
1 x COM RS-232/422/485 |
Environmental and Mechanical
|
Dimension (mm) |
186x145x49 (mm) |
|
Net Weight |
2 kg |
|
Mounting / Mounting Option |
Wall, VESA(Optional), DIN-Rail |
|
Degree of protection (IP rating) |
IP30 |
|
Ambient temperature (operation) |
0°C ~ 45°C |
|
Ambient temperature (storage/transport) |
-40 °C ~ 85 °C |
|
Permissible humidity (operation) |
5 % ~ 95 % RH (non-condensing) |
|
Permissible humidity (storage/transport) |
5 % ~ 95 % RH (non-condensing) |
|
Vibration |
1G with DIN EN 60068-2-6 |
|
Impact/ Shock |
15g, 11 ms in accordance with IEC 60068-2-27 |
Standard & Regulation
|
EMC |
CE, FCC |
|
EMI |
EN 61000-6-4 & AS/NZS CISPR 22 (Heavy Industry) |
|
EMS |
IEC 61000-4-2 * Contact: +/- 6 KV; criteria B * Air: +/- 8 KV; criteria BIEC 61000-4-3 10 V/m 80MHz – 1000MHz 3 V/m 1400 MHz -2000 MHz 1 V/m2000 MHz -2700 MHzIEC 61000-4-4 * Signal ports: +/- 2 KV; criteria B * DC power ports: +/- 2 KV; criteria BIEC 61000-4-5 * Signal ports: +/- 1 KV; criteria B * DC power ports: +/- 1 KV line-to-earth, +/- 0.5 KV line-to-line; criteria BIEC 61000-4-6 * Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM criteria A * DC power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM criteria AIEC 61000-4-8 * 30 A/m @ 50, 60 Hz; criteria A |
Others
|
Power comsumption
(Typical, Max) |
Maximum:(I/O full loading ,Windows 10, CPU loading 100%) 1.61A @ 28.8V, 44.72W 1.79A@24V, 43.12W 2.20A@ 19.2V, 42.4WTypical (I/O basic loading ,Windows 10, CPU loading 40%) 0.62A @ 28.8V, 17.77W 0.67A@ 24V, 16.258W 0.79A@ 19.2V, 15.12WMinimal (I/O minimum loading, Windows 10, CPU loading: Idle) 0.45A@28.8V, 12.95W 0.47A@24V, 11.80W 0.55A@19.2V, 10.67W |
|
Accessory |
Display adaptor: DP to VGA / DP to DVI-I video adapter Mess Storage (M.2 SSD): 32GB / 64GB / 128GB /256GB RAM (DDR4 SO-DIMM ): 4G/8G/16G Universal DIN rail adapter Wall mounting kit |
