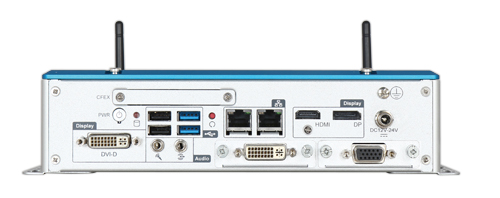

WEBS-5481
Embedded Rugged Fan-less System with Intel® Celeron® and Core™ i5/i7 based Specific Form Factor Board
Features :
- 4th generation Intel® Celeron® & Core™ i5/i7 ULT SoC
- Intel® Haswell ULT SoC low power & high performance embedded fan-less system
- Dual channel SO-DIMM socket up to 16GB DDR3L Memory
- 1x 2.5” SATA HDD/SSD, 1x CFEX, 1x mSATA
- 2x Mini-PCIe socket can be used in a diversity of applications
- 1x RS-232/422/485, 1x RS-232, 2x USB3.0, 2x USB2.0, 2x Gigabit Ethernet Port
- 5 Display by DVI-D/HDMI/DP + Optional Graphic Module
- 2x Antenna hole + 1x on board SIM card holder for WiFi or 3G/GPS module to use
- OP Vibration: 5Grms/10~500Hz
- OP Shock: 50G, 11msec
- IP40 Rating
Description
The WEBS-5481 builds on Intel® Haswell ULT Low Power SoC and takes advantages of Intel® Core™ mobile processor technologies that can support dual channel DDR3L memory. Support two Gigabit Ethernet ports and two Mini-PCIe sockets, even up to 5 displays by option. The WEBS-5481 is an ideal platform with HD graphic output for POS, kiosk, digital signage and transportation applications.
Specification
|
System |
WEBS-5481
|
|
M/B |
PEB-5731-W
|
|
Form Factor |
Specific Form Factor 170 x 135 mm |
|
System |
|
|
CPU |
Intel® 4th Generation ULT Core™ i Processor
|
|
Chipset |
Intel® SoC
|
|
BIOS |
AMI UEFI
|
|
Memory |
DDR3L/16GB
|
|
Graphic Controller |
HD Graphics 4000 Family
|
|
Audio Codec |
ALC892 |
|
Super I/O |
EC ITE IT8528 + Fintek F81216
|
|
Storage |
1x CFEX, 1x 2.5” SATA HDD/SSD 1x mSATA |
|
External I/O
|
|
|
Serial |
1x RS-232 1x RS-232/422/485 |
|
USB |
2x USB2.0 2x USB3.0 |
|
Display |
DVI-D, DP, HDMI
|
|
Ethernet |
Intel® I218LM+I210AT
|
|
PS/2 |
N/A
|
|
Audio |
Line-out, Mic-in
|
|
D I/O |
8-bit Digital I/O |
|
Expansion |
1x Full-size Mini-PCIe 1x Half-size Mini-PCIe 2x Optinal Graphic Module |
|
PWR |
|
|
System |
DC 12V ~ 24V
|
|
Environment |
|
|
OP Temp. |
-20°C ~ 55°C |
|
Storage Temp. |
-40°C ~ 80°C
|
|
Humidity |
95%@40°C, non-condensing
|
|
Vibration |
5Grms/10-500Hz
|
|
Shock |
50G, 11 msec
|
|
Mechanical |
|
|
Dimension(WxDxH) |
235 x 160 x 60 mm |
|
Weight |
2 Kg
|
|
Ordering Guide |
|
|
AS5-3366 |
(R).ATO.WEBS-5481.Haswell ULT. Fanless System |
Support (Documents & Downloads)
Catalog
WEBS-5481 | Catalog 214S-1 March 24, 2014Download
1.47 MB 1995 Downloads
BIOS
BIOS_PEB-5731-W(WEBS-5481)_R100E4_.zip | BIOS R1.00.E4 November 27, 2015Download
- Move item Serial Port RS485 Mode to OEM Page.
- Support SuperI/O F81216AD RS-485 mode control.
- Rename item “Serial Port RS485 Mode” to “RS-485 Auto Flow Control”.
10.09 MB 247 Downloads
BIOS_PEB-5731-W(WEBS-5481)_R100E3.zip | BIOS R1.00.E3 April 30, 2015Download
BIOS of WEBS-5481
4.88 MB 251 Downloads
Driver
Driver_WEBS-5481_PEDA-S1530_Win7-Ethernet.zip | Driver 20141014 October 14, 2014Download
Ethernet Driver for Windows 7
54.48 MB 441 Downloads
Driver_WEBS-5481_PEDA-S1530_Win7-Audio.zip | Driver 20141014 October 14, 2014 Download
Audio Driver for Windows 7
198.78 MB 368 Downloads
Driver_WEBS-5481_PEDA-S1530_Audio.zip | Driver 20141014 October 14, 2014Download
Audio Driver for Windows 7
198.78 MB 549 Downloads
Driver_WEBS-5481_PEDA-S1530_Win7-ZUxxx-series-USB-driver_3.50.0.5.zip | Driver 20160331 October 14, 2014 Download
ZU200 3G/GPS Driver for Windows 7
585.60 KB 819 Downloads
Driver_WEBS-5481_PEDA-S1530_Win7-Wi-Fi-Module-WPER-116Nv2.zip | Driver 20160331 October 14, 2014 Download
WPER-116GN WiFi Driver for Windows 7
32.75 MB 670 Downloads
Driver_WEBS-5481_PEDA-S1530_Win7-USB 3.0.zip | Driver 20141014 October 14, 2014Download
USB 3.0 Driver for Windows 7
1.69 MB 682 Downloads
Driver_WEBS-5481_PEDA-Win7-S1530_Inf.zip | Driver 20141014 October 14, 2014Download
Chipset Driver for Windows 7
5.24 MB 686 Downloads
Driver_WEBS-5481_PEDA-S1530_Win7-ME9.5_5M_9.5.10.1580.zip | Driver 20141014 October 14, 2014Download
iAMT Driver for Windows 7
66.84 MB 694 Downloads
Driver_WEBS-5481_PEDA-S1530-Win7_Graphic.zip | Driver 20141014 October 14, 2014Download
Graphic Driver for Windows 7
237.79 MB 707 Downloads
Driver_WEBS-5481_PEDA-S1530-Win7_Ethernet.zip | Driver 20141014 October 14, 2014Download
Ethernet Driver for Windows 7
54.48 MB 694 Downloads
User's Manual
Certificate
Drawing
Drawing_WEBS-5481.pdf | Drawing 20150430 April 30, 2015Download
Drawing of WEBS-5481
152.77 KB 265 Downloads
