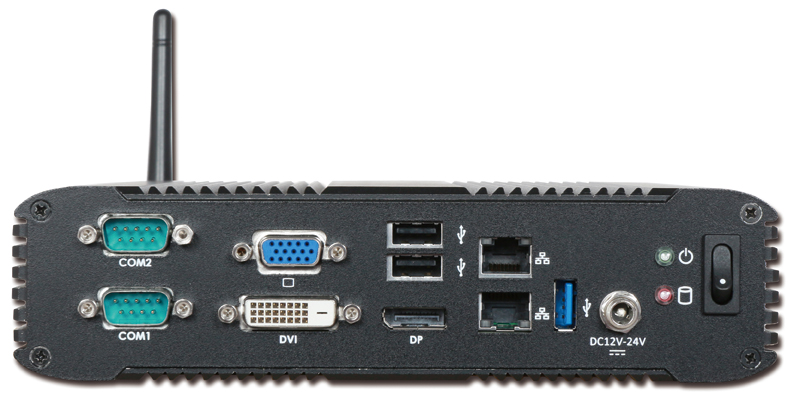

WEBS-3392_back

WEBS-3392

Embedded Rugged Fan-less PC with Intel® Atom® E3845/J1900 based Mini-ITX Board

Features :

Description

Portwell Fanless Embedded-PC WEBS-3392 is very compact and come without a fan. By using the latest Intel® Atom® processor E3800 family with up to four CPU cores, the embedded system is suitable as an inexpensive entry-level model for diverse applications in plant engineering, power engineering, transportation & logistics, as well as display control and gateway.

Specification

System
M/B
WADE-8079
Form Factor
Mini-ITX
System
CPU
Atom® E3845 1.91GHz
Atom® J1900 2GHz
Chipset
Intel® SoC
BIOS
Phoenix UEFI
Memory
DDR3L/16GB
Graphic Controller
Intel® Gen 7 Graphics
Audio Codec
ALC892
Super I/O
EC ITE IT8528
+ Fintek F81216
Storage
1x 2.5” SATA HDD/SSD
1x mSATA
External I/O
Serial
3x RS-232
1x RS-232/422/485
USB
4x USB2.0
1x USB3.0
Display
VGA, DVI-D, DP
Ethernet
Intel® I210IT x 2
PS/2
N/A
Audio
N/A
D I/O
N/A
Expansion
1x Half-size Mini-PCIe 1x Full-size Mini-PCIe
PWR
System
DV 12V ~ 24V
Environment
OP Temp.
-10°C ~ 45°C
Storage Temp.
-40°C ~ 80°C
Humidity
95%@40°C, non-condensing
Vibration
5Grms/10-500Hz
Shock
50G, 11 msec
Mechanical
Dimension(WxDxH)
200 x 200 x 51 mm
Weight
2.2 Kg
Ordering Guide
AS5-3412
(R).ATO.WEBS-3392.Rugged Mini-ITX System.WADE-8079.
