WEBS-21J0
WEBS-21J0

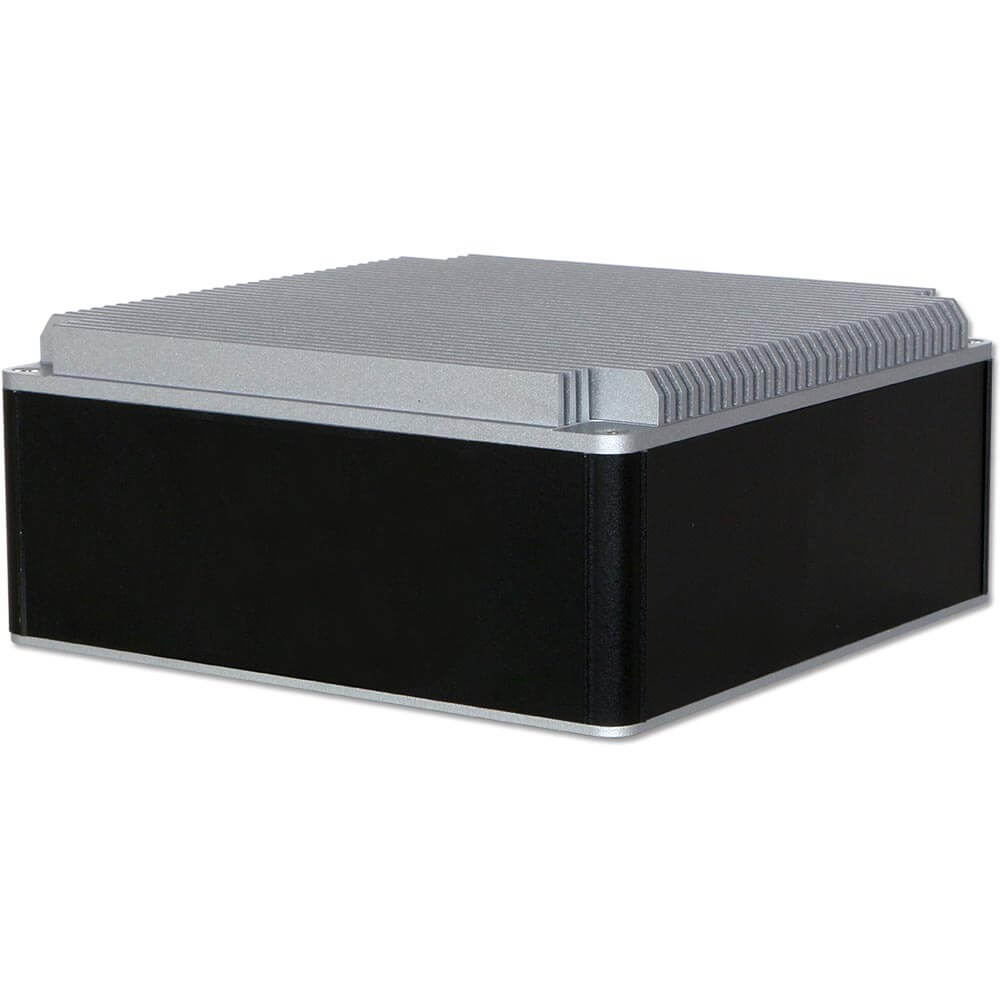

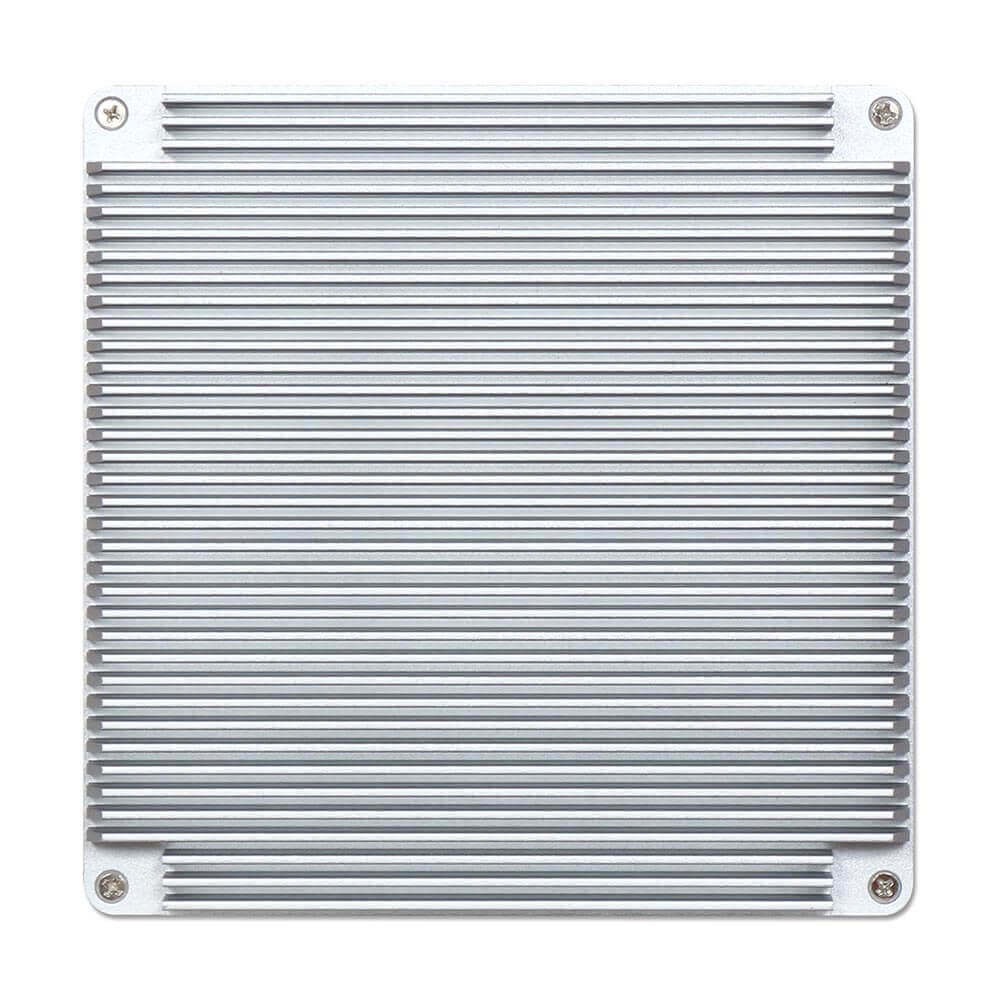

Embedded Rugged Fan-less System with Intel Atom® X7000E Series SoC based NANO-ITX Board
Features :
- Support low power Intel Atom® X7000E and high performance Intel® Core™ i3 N-Series SoC
- Support one DP and one HDMI® display
- Support 16GB DDR4 3200MT/snon-ECCSO- DIMM
- Support oneRS-232/422/485port ( selectable via BIOS)
- Support one M.2 E Key, One M.2 B Key socket
- One Antenna hole for WiFi module to usage
- TPM 2.0
Description
The WEBS-21J0 takes advantage of Intel Atom® X7000E / Intel® processors N-Series / Intel® Core™ i3 N-Series Processor technologies that can support one DDR4 memory and one SATA Ports for storage. Support two Gigabit Ethernet ports, One M.2 E Key, One M.2 B Key socket. The WEBS-21J0 is an ideal platform for IoT applications such as retail, digital signage.
Specification
| System | |
|---|---|
|
M/B |
NANO-6064
|
|
CPU |
Intel Atom® X7000E Series Processor ( Up to 12W)
Intel Processor N Series
Intel® CoreTM i3 N-Series Processor (Up to 15W)
|
|
BIOS |
AMI UEFI BIOS
|
|
Memory |
1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB
Support In-Band ECC
|
|
Storage |
1x SATAIII ports
1x M.2 B key 2280 (SATAIII)
|
|
Watchdog Timer |
Programmable watchdog timer
|
|
TPM |
TPM 2.0
|
|
H/W Status Monitor |
System monitor (Voltage, Temperature)
|
|
Expansion |
1x M.2 E Key 2230
1x M.2 B Key 3052+2280 (Share with M.2 2280 SATAIII socket) |

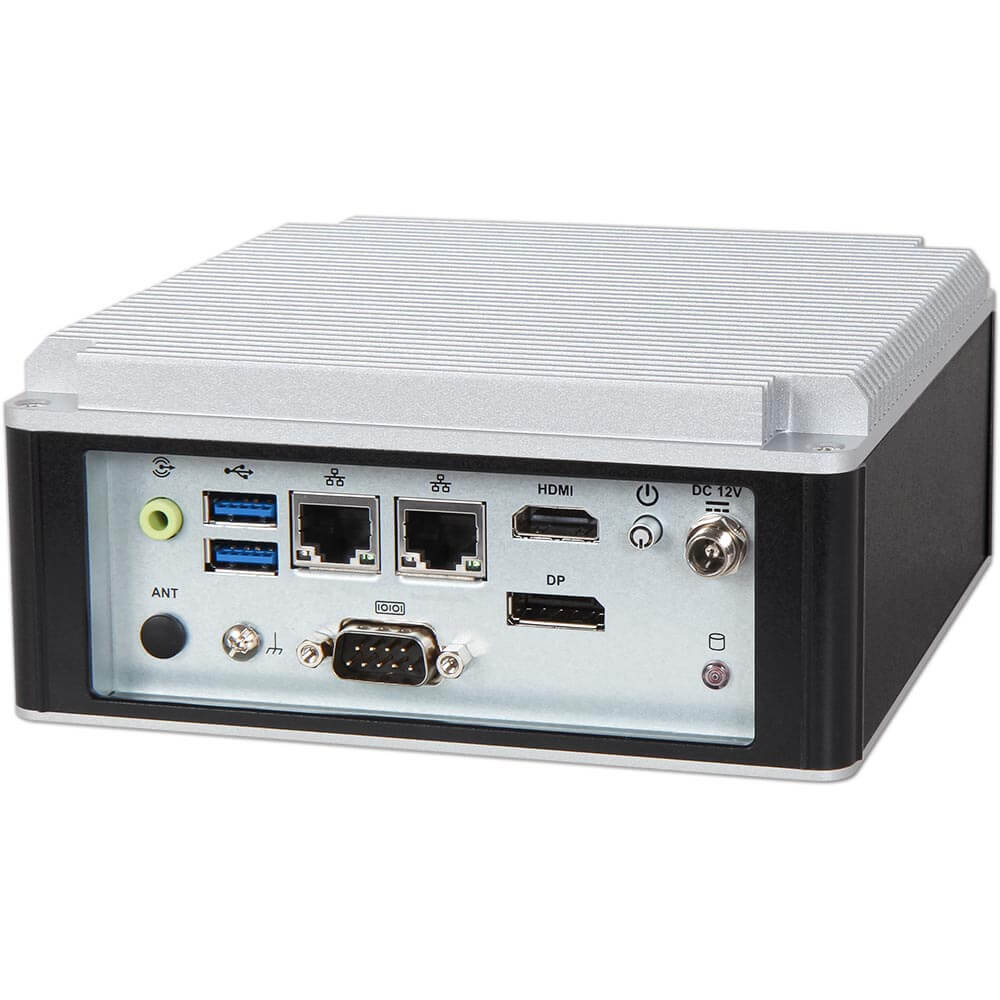

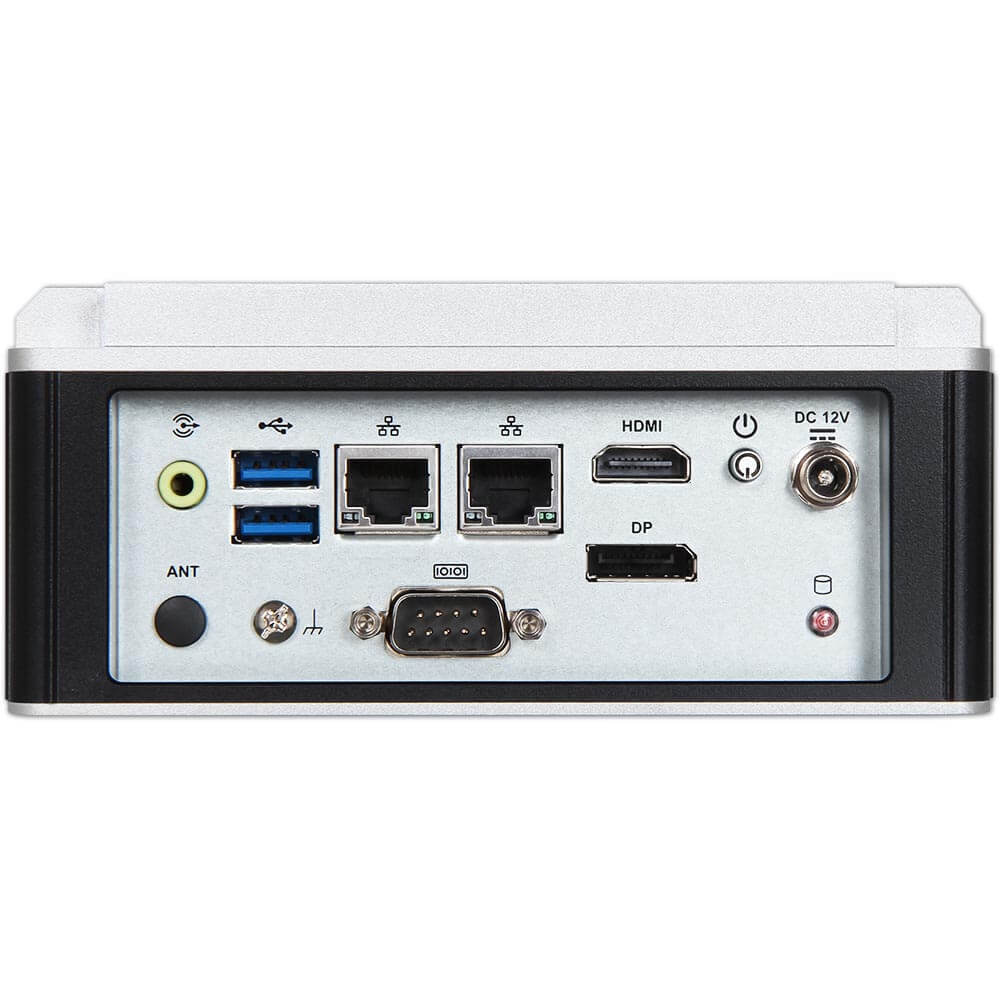

| External I/O | |
|---|---|
|
Serial Port |
1x RS- 232/422/485 port (selectable via BIOS) |
|
Display |
1x HDMI® ( HDMI® 2.0b,4096×2160@60Hz)
1x DP (DP 1.4,4096X2304@60Hz) |
|
USB |
2x USB 3.2 Gen2 (Optional kit: additional 2x USB 3.2 Gen2) |
|
Audio |
Audio Jack with Line-out / Mic-in with Realtek ALC887 Audio controller
|
|
Ethernet |
2x Intel® 2.5GbE Ethernet controller (I225-LM)
2x RJ45 connectors |
|
Other |
TPM 2.0 on board |
| Power Supply Unit | |
|---|---|
|
Power Input |
DC 12V input
|
| Environment | |
|---|---|
|
Operation Temperature |
0°C ~ 50°C
|
|
Storage Temperature |
-40°C ~ 85°C |
|
Relative Humidity |
40°C, 95%RH non-condensing |
|
Operation Vibration |
3Grms/10-500Hz, IEC 60068-2-6
|
|
Operation Shock |
50G, 11 msec, IEC 60068-2-27 |
| Mechanical | |
|---|---|
|
Dimension |
150 (W) x 150(D) x 66 (H) mm |
|
Weight |
1.4 Kg |
|
Mounting |

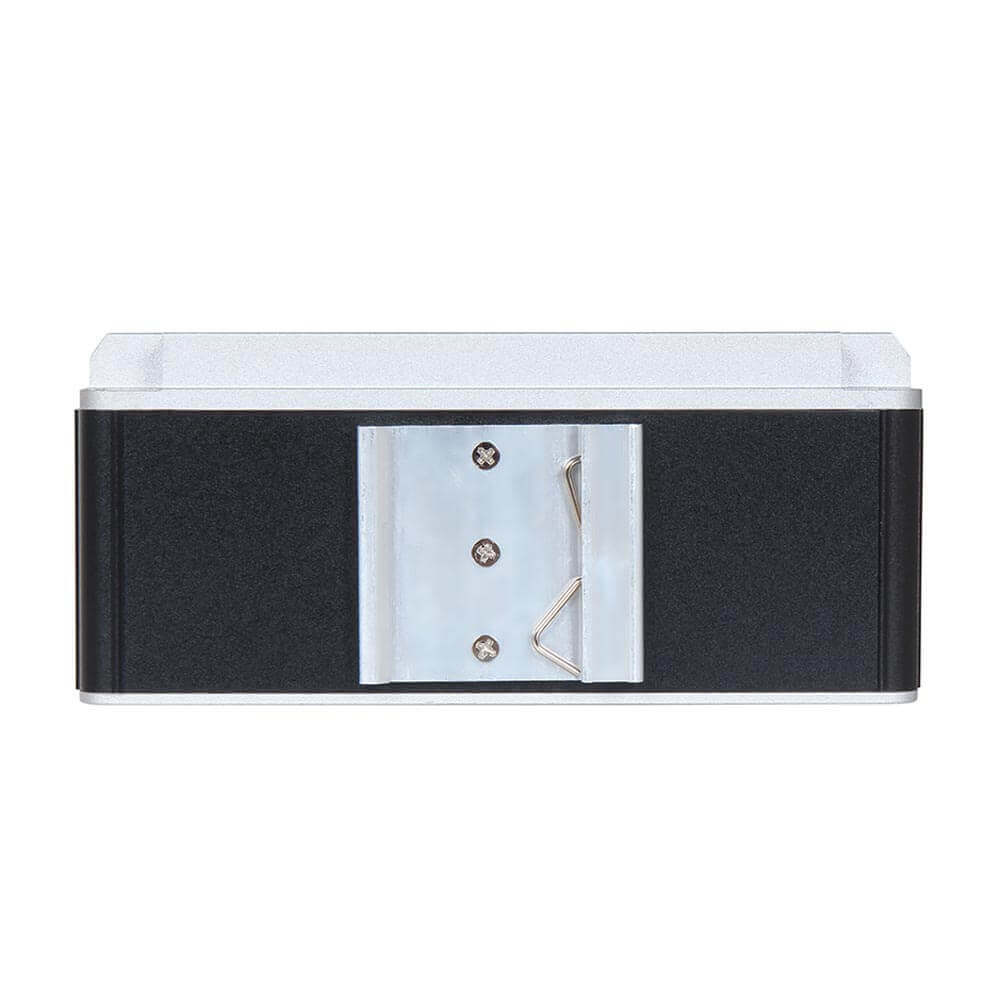

Wall, DIN-rail mounting |
