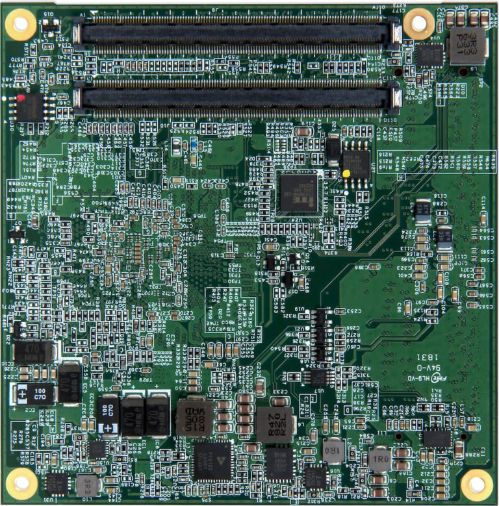

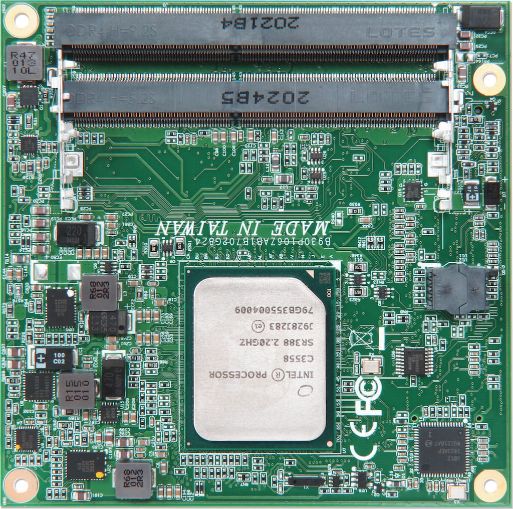

COM Express Type 7 - PCOM B702G
COM Express Type 7 with Intel Atom® processor C3000 Series with 2-DDR4 ECC up to 64GB 2133 MT/s with up to 12 HSIO Lanes, 4x KR to support 10G, NC-SI Interface, SATA III, USB 2.0 and 3.0
Features :
- Intel® Atom® Processors C3000 Series (Denverton)
- DDR4 1866/2133 MT/s ECC up to 64GB
- Up to 12 HSIO Lanes (based on CPU sku)
- High-speed Ethernet, 4x 10GbE (based on CPU sku) and 1x GbE interfaces
- Wide-Temp (-40°C to 85°C by selected sku) Support
Description
PCOM-B702G, a Type 7 COM Express module, is designed with Intel® Atom® processor. Based on the COM Express 3.0 Type 7 pinout definition, when compared to the Type 6 pinout, trades all the graphic interfaces for 10 GbE ports and more PCIe lanes, makes PCOM-B702G ideal for applications in networking, micro server and the like, requiring low power consumption while supporting high computing performance and communication throughput. PCOM-B702G features four 10GbE LAN interfaces (based on CPU sku) and DDR4 ECC SO-DIMM up to 64GB. It is compatible with Type 7 carrier board.
| Specification | |
|---|---|
|
Model Name |
PCOM-B702G
|
|
Form Factor (mm) |
COM Express® (95 X 95mm)
|
|
COM Type |
Intel® Atom® Processors* Intel® C3308 Intel® C3338 Intel® C3508 Intel® C3558 Up to 4 CPU cores* 4MB to 8MB cache* |
|
CPU/ Clock/ Cache |
DDR4 1866/2133 MT/s* Non-ECC/ECC* Single/Dual Channel* |
|
PCI Express |
Up to 1x PCIe Gen3 x4 4x PCIe Gen3 x1 |
|
Ethernet |
Intel® I210IT 4x KR (10GbE)
|
|
Sound |
N/A
|
|
Graphic Controller |
N/A
|
|
Carrier Board |
PCOM-C701 (Type 7) PCOM-C702 (Type 7) |
