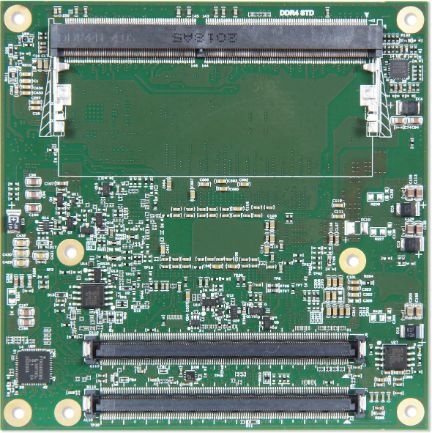

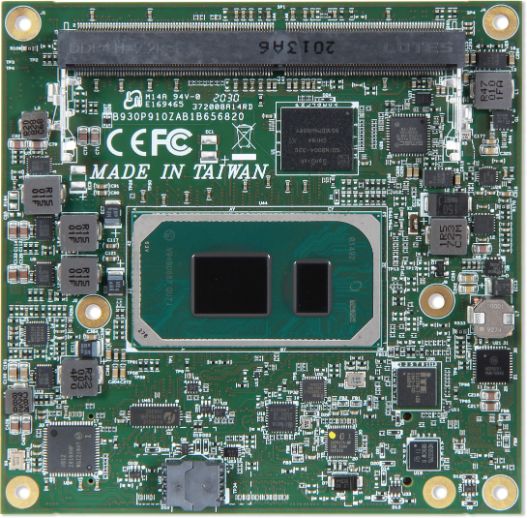

PCOM-B656VGL
Intel® Tiger Lake-UP3 Core™ Processor based on Type-6 COM Express module with dual DDR4 SO-DIMM, DDI, eDP, Gigabit Ethernet, SATA 3.0, and USB 3.2
Features :
- Intel® Core™ i3/i5/i7/Celeron Processors 10nm process(Tiger Lake UP3)
- Support 2xDDR4-3200 Non-ECC SO-DIMMs, up to 32G per DIMM
- Support USB2.0/3.2, 2x SATAIII, 1x PCIe4.0 x4 and 5x PCIe 3.0 LANEs
- Support Display Port, HDMI, VGA, and LVDS/eDP
Description
Portwell PCOM-B656VGL is designed with Intel® Tiger Lake-UP3 processor with Type 6 pin definition. It brings three important factors including DDR4 memory, PCIe Gen4, and USB 3.2 Gen2 x1 support. Extend PCIe Gen3 ports in PCOM-B656VGL can support high speed I/O card for more applications. In the meantime, it’s compatible with COMe 3.0 Type 6 carrier board.
| Specification | |
|---|---|
|
Model Name |
PCOM-B656VGL
|
|
Form Factor (mm) |
COM Express® Compact (95 x 95mm)
|
|
COM Type |
Type 6
|
|
CPU/ Clock/ Cache |
Intel® 11th Generation CoreTM* Intel® i7-1185GRE/i7-1185G7E Intel® i5-1145GRE/i5-1145G7E Intel® i3-1115GRE/i3-1115G4E Celeron® 6305E* Up to 4 CPU cores* 4MB to 12MB cache* |
|
Chipset |
SoC |
|
Memory |
DDR4 SO-DIMM
|
|
USB |
4 x USB 3.2 Gen 2 x1, 8 x USB 2.0 |
|
PCI Express |
1x PCIe Gen3 x4/2x PCIe Gen3 x2/4x PCIe Gen3 x1/1x PCIe Gen3 x2 + 2x PCIe Gen3 x1 1x PCIe Gen3 x1 for Intel I225 Lan 1x PCIe Gen3 x2/2 x PCIe Gen3 x1 w/o USB 3.2 |
|
Ethernet |
Intel® I210IT
|
|
Sound |
Intel® High Definition Audio
|
|
Graphic Controller |
Intel Iris
|
|
Carrier Board |
PCOM-C60B
|
