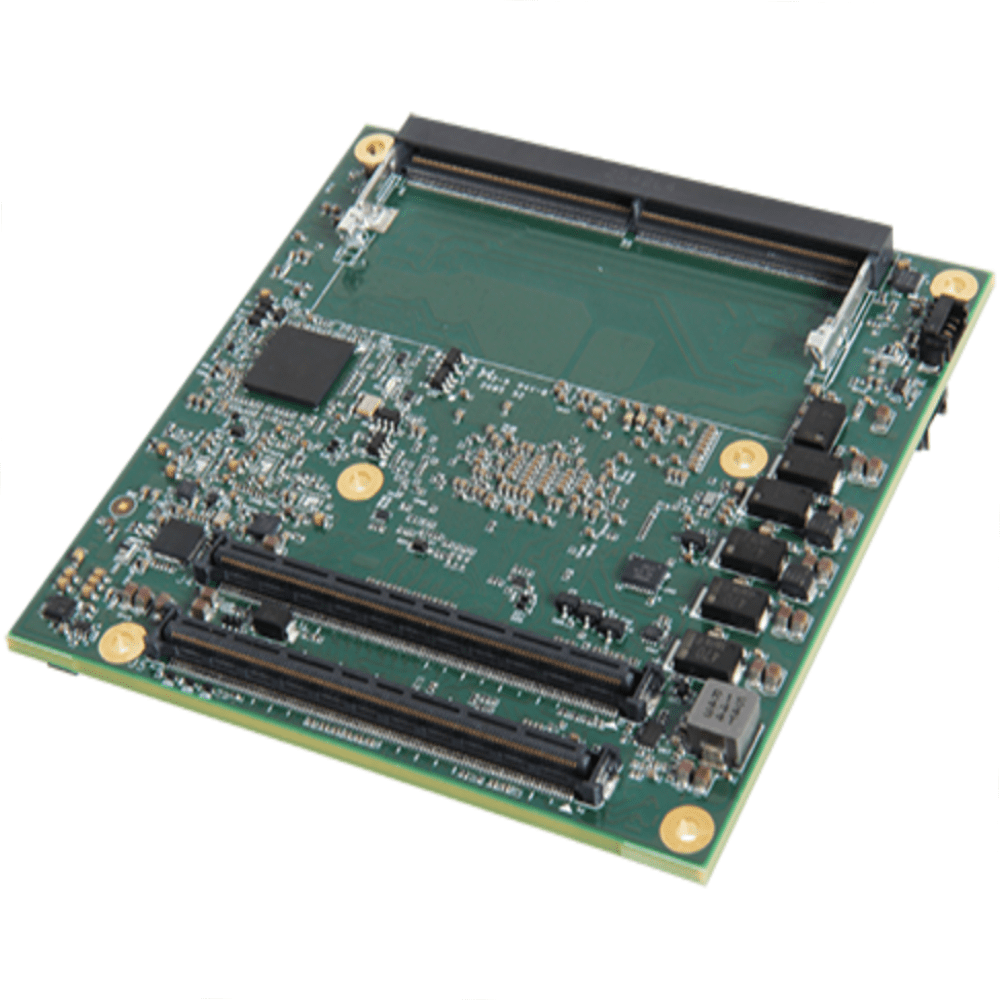

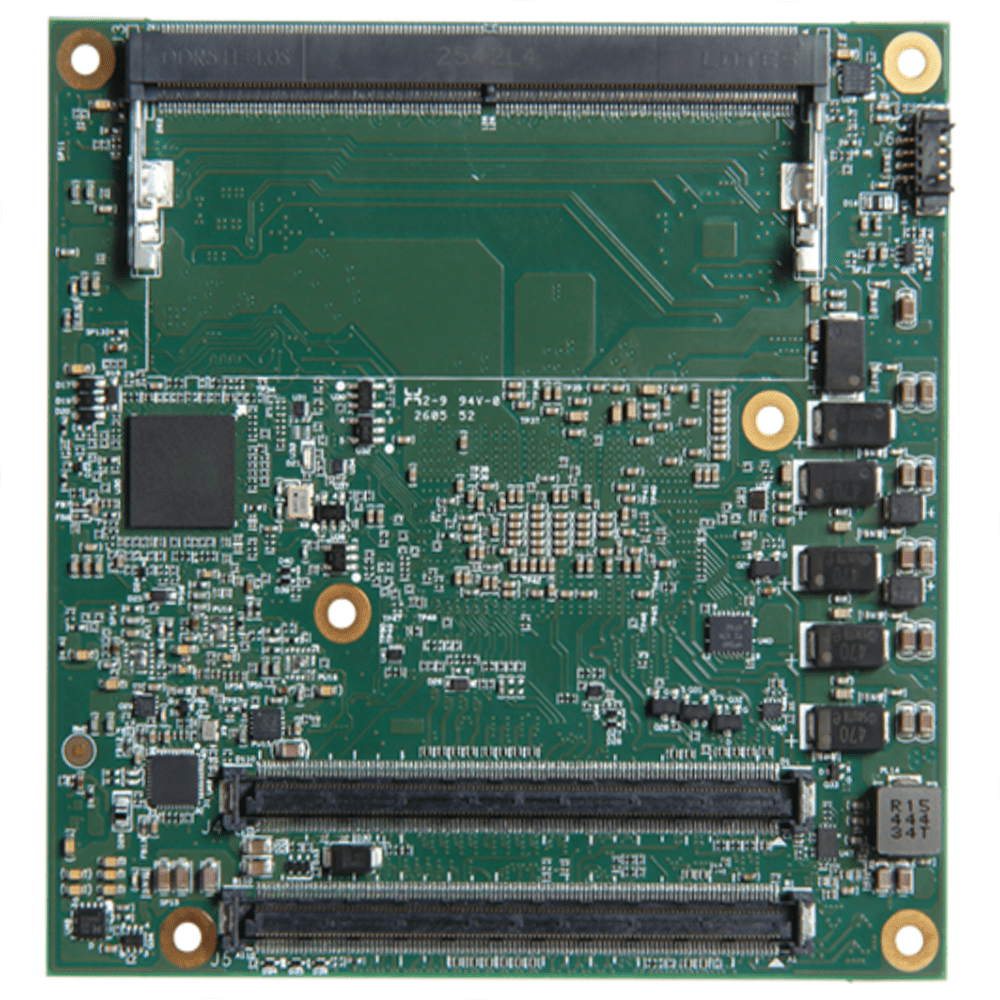

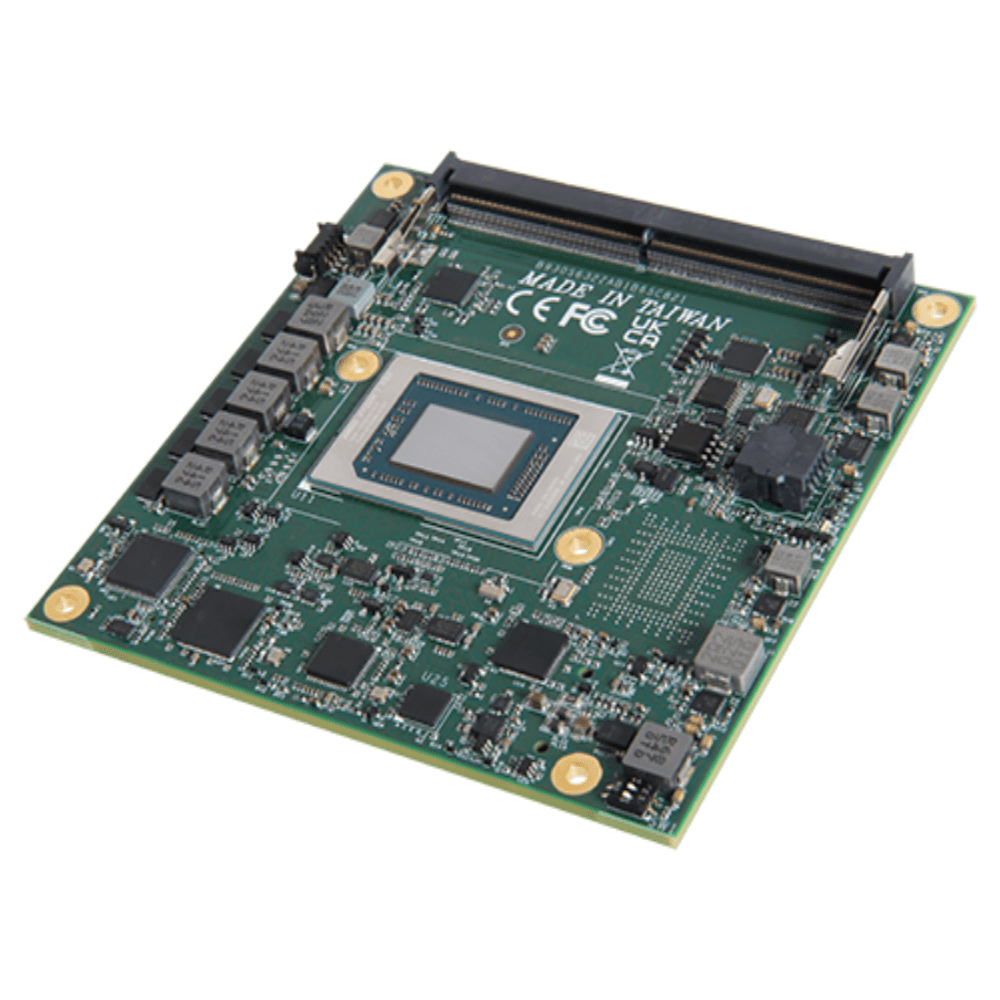

COM Express Type6 Compact size module with AMD Ryzen Embedded 8000 Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, discrete TPM 2.0, eDP, SATA, Out-of-Band(OOB)
Features :
- AMD Ryzen Embedded 8000 Series
- Up to 8 Zen 4 Core, and RDNA 3 up to 6 workgroups
- 2x DDR5-5600 non-ECC SO-DIMMs up to 96GB, 1x Gen4 x8, 1x Gen4 x2, and 6x Gen4x1
- 4x USB3.2 Gen2, 2x SATA, 3x DDI, VGA, eDP/LVDS
- Options for onboard PCIe NVMe SSD
- Supports Out-of-Band (OOB) and optional for onboard PCIe NVMe SSD
Description
PCOM-B65A is COM Express module based on new Intel® Core™ Ultra platform ( Code Name: Arrow Lake). It is compatible with COM Express Rev3.1 standard. The platform adopt the new gen Intel® 4 lithography and VNNI instruction set, offers advance computing power with 15~28W thermal and embedded use condition for wide range application. It also support new integrated NPU for dedicated AI acceleration with up to 20x performance/watt improvement. This platform features the integration of Arc Graphics for up to 50% AI performance compared to previous generations. This module provides (up to) 24x PCIe Gen4 lanes, 4x USB 3.2 Gen 2, and 2x SATA. The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications, which is suit for mission critical use conditions and AI edge computing.
| Form Factor | ||
|---|---|---|
| Model | PCOM-B65C | |
| Form Factor | COM Express Type 6 Compact Size (95 mm × 95 mm) | |
| General | ||
|---|---|---|
| CPU Options |
| |
| Cache | Up to 18 MB Cache | |
| Memory Type / Speed | 2 x DDR5 SO-DIMM, up to 96GB, 5600 MT/s | |
| ECC Memory Support | Supported | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | |
| BIOS | AMI UEFI BIOS | |
| ECC | On-board | |
| Memory | 2 × SO-DIMM DDR5, up to 96GB, 5600 MT/s | |
| I/O Interface | ||
|---|---|---|
| SATA | 2 x SATA III (Default) | |
| USB |
| |
| Ethernet | 1 x 2.5 GbE LAN (Default) | |
| PCIe |
| |
| Storage | 1 x NVMe Support (Shared with SATA) | |
| Legacy I/O | GPIO | 8 x GPIO (Default) |
| I²C | 1 x I²C (Default) | |
| SMBus | 1 x SMBus (Default) | |
| UART | 2 x UART (Default) | |
| Security | TPM 2.0 | |
| Display | eDP / LVDS | eDP up to HBR3, 3840 × 2160 @ 120Hz (Default) |
| eDP / LVDS | LVDS (24-bit, dual channel), 1920 × 1200 @ 60Hz (Option) | |
| DDI 1/2/3 | eDP up to HBR3, 3840 × 2160 @ 120Hz (Default) | |
| DDI 1/2/3 | HDMI® 2.1 (Default) | |
| VGA | 1920 × 1200 @ 60Hz (Shared with DDI) | |
| ME / Environment | ||
|---|---|---|
| Dimension | 95 mm × 95 mm (3.74″ × 3.74″) | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| Certification | CE / FCC Class A | |
| Operating System |
| |
| Portwell Special Feature | PET, RPET | |
Ordering Guide
| Ordering Guide | |||
|---|---|---|---|
| Category | Product | P/N | Description |
| COM Express | PCOM-B65C-8845HS | TBD | Type 6 Module |
| COM Express | PCOM-B65C-8840U | TBD | Type 6 Module |
| COM Express | PCOM-B65C-8645HS | TBD | Type 6 Module |
| COM Express | PCOM-B65C-8640U | TBD | Type 6 Module |
