PCOM-C605R

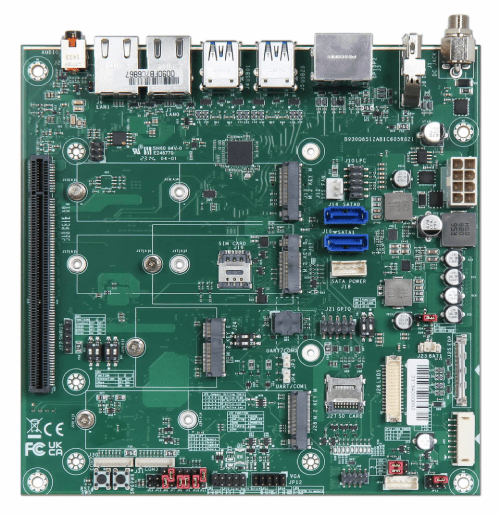

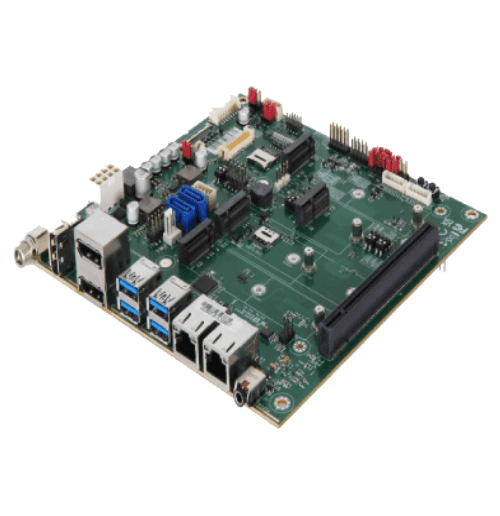

Mini-ITX size carrier board for COM Express Type6 module
Features :
- Support COM Express Type6 Compact/Basic size modules

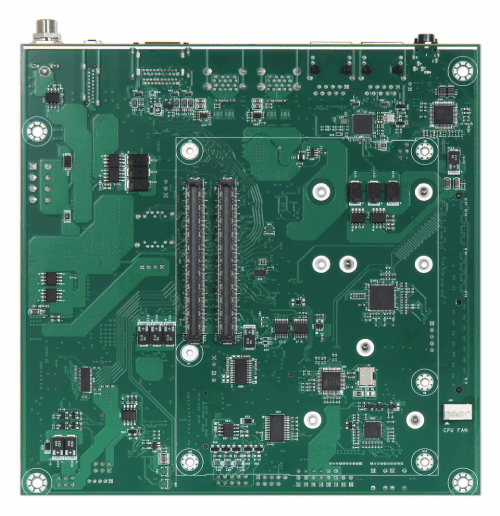

- Mini-ITX size provides extra expansions slot, reversed side module mounting space for optimized passive cooling solution design
- Supports USB 3.2 Gen2 (Type-A), SATA, PCIe Gen4, 2.5G RJ45, Displayport, VGA
- Support wide temperature -40°C ~ 85°C
- ATX 8pin 12v power input / DC Jack 12v power input
Description
Portwell PCOM-C605R is a Mini-ITX size carrier board that supports reverse mounting of COM Express Type6 module. It follows COM Express Rev 3.1 standard, supporting multiple I/O interfaces, including DP display, VGA, PCIe, M.2, RJ45, USB 3.2(Type-A), SATA, UART and Audio jack.
PCOM-C605R suitable as a solution for compact size system, which offer an effective next-generation product upgrade path for solutions already using the previous PCOM-C605 based system products. For more product features, please contact your distributor or refer to the datasheet/user manual
| Specifications | ||
|---|---|---|
| Form Factor | Mini-ITX size (170mm x 170mm) | |
| Supported Module | COM Express Type 6, Compact/Basic size | |
| General Function |
| |
| Audio codec | Realtek ALC888S | |
| SATA | 2x SATA (standard type), 2x M.2 socket share with PCIe | |
| USB |
| |
| Ethernet | 2x 2.5GbE RJ45 | |
| PCI Express |
| |
| Display | Interface source | Output options |
| DDI | 3x DP | |
| LVDS/eDP |
| |
| VGA | 1x VGA header | |
| Legacy I/O | GPIO | 8x GPIO header |
| I²C | I²C header | |
| SMBus | SMBus header | |
| Serial Port |
| |
| GP SPI | N/A | |
| Others |
| |
| Dimension | Mini-ITX 170mm x 170mm | |
| Power DC IN | ATX 8 pin DC jack | |
| Storage Temperature | -40°C to 85°C | |
| Operation Temperature | -40°C to 85°C | |
| Certification | TBD | |
| MTBF | TBD | |
| Vibration | TBD | |
Ordering Guide
| Product | Ordering P/N | Status |
|---|---|---|
| PECM-3365-WT | AB1-3369 | Available |
| Accessory | ||
|---|---|---|
| Accessory | Ordering P/N | Status |
| COM port cable | 68133B1001 | Available |
| VGA cable | 68133B1002 | Available |
| SATA power cable | 68133B1003 | Available |
