PLUTO-D5001PJ

PLUTO-D3501PJ

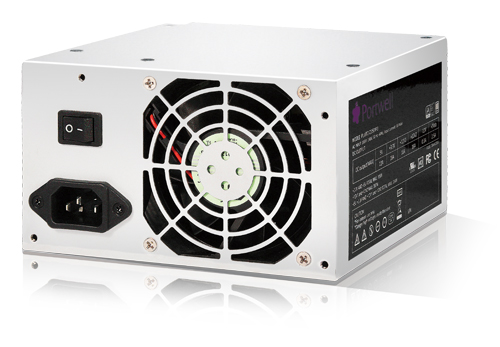

350W PS/2 ATX PSU with active PFC Japan made capacitor 80 PLUS and SCP, OCP,OPP

Features :

Description

For most PS/2 ATX in IPC applications are for server station and communication system; In those environments, heat is the major cause of output de-rating. PLUTO-D3501PJ also remains 80% de-rating output at 50°C which allows the whole system to work in high temperature environment. In addition, for various demands, PLUTO-D3501PJ provides dual +12V output for different devices.

In order to ensure the output of PLUTO-D3501PJ is stable and reliable, it has dual forward converter design and RUBYCON high quality Japanese capacitor, thus it has shown high performance at 50°C, 12 hours at 100 % loading Burn-in test.

PLUTO-D3501PJ has 80PLUS certification which helps to reduce energy consumption, and hence to save cost of electricity

Specification

MTBF
10,000 Hours at 100% loading
Temperature/ Humidity
Storage: -40°C ~ 70°C, 10% ~ 25°%(non-condensing)
Operation: 5°C ~ 50°C, 20% ~ 85°%(non-condensing)
Dimension (WxDxH)
150 x 140 x 85mm; 5.9” x 7.2” x 3.4”
Risetime
10 ms.
