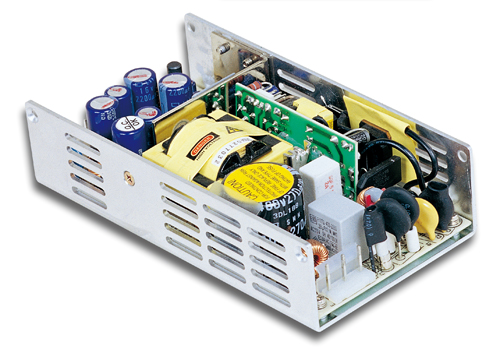

MPI-810H

120W universal input open-frame power supply

Features :

Specification

Input Voltage
90 ~ 260V AC
Input Frequency
47 ~ 63 Hz
Input Current
3A@115VAC or 1.5A@230VAC
Efficiency
> 70%
Holdup Time
16 ms at full load
Over Voltage Protection
+5V: 5.6 ~ 6.6V; +3.3V: 3.6 ~ 4.2V; +12V: 13.2 ~ 14.6V
Over Power/ Load Protection
Output power over 110% ~ 160%
MTBF
130,000 hrs
EMI & Safety Approval
UL, VDE, CSA
Temperature/ Humidity
Operating: 0oC ~ 50oC, 20% ~ 90%RH
Storage: -20oC ~ 70oC, 5% ~ 95%RH
Dimension (WxDxH)
83.8 x 152.4 x 38.1 mm; 3.3” x 6” x 1.5”
Ordering Guide
MPI-810H
120W universal input open-frame power supply
