MPE-8071

Industrial Power Supply MPE-8071

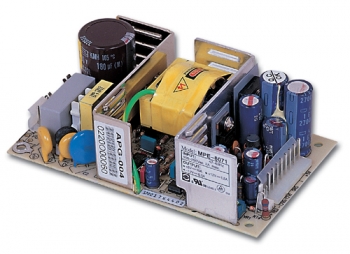

70W universal input open-frame power supply

Features :

Specification

Input Voltage
90V ~ 132V, 180V ~ 264V AC Auto-range
Input Frequency
47 ~ 63 Hz
Input Current
2A@115V; 1A@230V
Efficiency
> 70%
Holdup Time
16 ms at full load
Over Voltage Protection
+5V: 5.6 ~ 6.6V; +3.3V: 3.6 ~ 4.2V; +12V: 13.2 ~ 14.6V
Over Power/ Load Protection
Output power over 110% ~ 160%
MTBF
130,000 hrs
EMI & Safety Approval
UL, cUL, TUV, CE, FCC
Temperature/ Humidity
Operating: 0 ~ 50oC, 20 ~ 90%RH
Storage: -40 ~ 85oC, 5 ~ 95%RH
Dimension (WxDxH)
76.2 x 127 x 38.6 mm; 3” x 5” x 1.5”
Ordering Guide
MPE-8071
70W universal input open frame power supply
