MPE-008A-P

MPE-008A-P

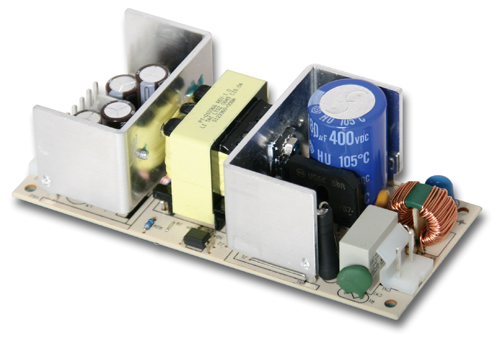

80W universal input open-frame power supply

Features :

Specification

Input Voltage
90 ~ 264V AC
Input Frequency
47 ~ 63 Hz
Input Current
2A@115V, 1A@230V
Efficiency
> 80%
Holdup Time
16 ms at full load
Over Voltage Protection
Automatic recovery up on of over voltage condition. Trigger point is at about 5.8V ~ 6.8V
MTBF
130,000 hrs
EMI & Safety Approval
UL, cUL, TUV, CE, CCC
Temperature/ Humidity
Operating: -20oC ~ 50oC, 5% ~ 95%RH
Storage: -20oC ~ 85oC, 5% ~ 95%RH
Dimension (WxDxH)
50.8 x 127 x 40 mm; 2.0” x 5” x 1.57”
Ordering Guide
MPE-008A-P
80W universal input open-frame power supply
