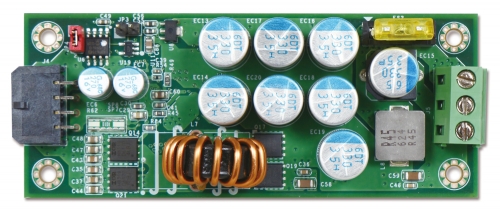

GADIWA-R9141
140W DC/DC 9~32V input/ 24V output Board type Regulator
Features :
- 9~32V/Wide-input, 12V/output Regulator with ATX connector with board output
- Compact and user-friendly design for installation and maintenance
- Fan-less design for mission-critical application
- -40°C to 75°C wide temperature support
Description
GADIWA-R9141 is a DC to DC 9V~32V input to 12V output board type Regulator. It normally support continuous 140 Watts and peak 160 Watts.
GADIWA-R9141 can save more space, less than 1U width, and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance. production line; therefore, it can provide high quality and performance.
Specification
|
Input Voltage |
9V~32V |
|
Output |
12V 140Watts / 160 Watts Peak |
|
Efficiency |
> 95% @12V, 12A output, 25°C |
|
MTBF |
420,000hrs @ 55°C |
|
EMI & Safety Approval |
CE, FCC |
|
Input Connector |
9V~32V 3 pin TBC |
|
Output Connector |
Mini-Fit 8 pin |
|
Dimension (WxDxH) |
93.4 x 38 x 20 mm |
|
Operation Temperature |
-40°C ~ 75°C |
|
Ordering Guide |
|
|
GADIWA-R9141 140W 9V~32V input to 12V output DC to DC Power module.Wide Temperature |
|
