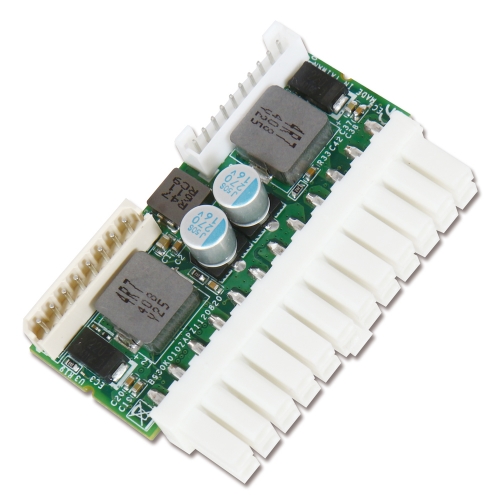

GADIWA-M1120

GADIWA-M1120

120W DC/DC 12V input/ATX output Socket type Converter

Features :

Description

GADIWA-M1120 is a DC-DC converter for socket type. It normally support 96Watts and maximum can reach to 120Watts. GADIWA-M1120 socket type design can save more space and cost, it’s not only capability for fan-less system but also suitability for different application. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and performance.

Specification

Input Voltage
12V
Output
120Watts/ 160 Watts peak
Efficiency
> 90% @12V input, 120W output, 25°C
MTBF
420,000hrs @ 55°C
EMI & Safety Approval
CE, FCC
Input Connector
12V / DC Jack
Output Connector
ATX 24Pin Connector
Dimension (WxDxH)
35 x 56 x 23.5 mm
Operation Temperature
-40°C ~ 75°C
Ordering Guide
GADIWA-M1120
120W 12V to ATX DC to DC Power module.Wide Temperature. bulk packing
